Grundfos 96529132 - DME375-10B SS/V/SS-F-31A4A4B | Dosing Pump | Stepper Motor | High Accuracy

GRUNDFOSSKU: 96529132

Price:
Sale price$14,913.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

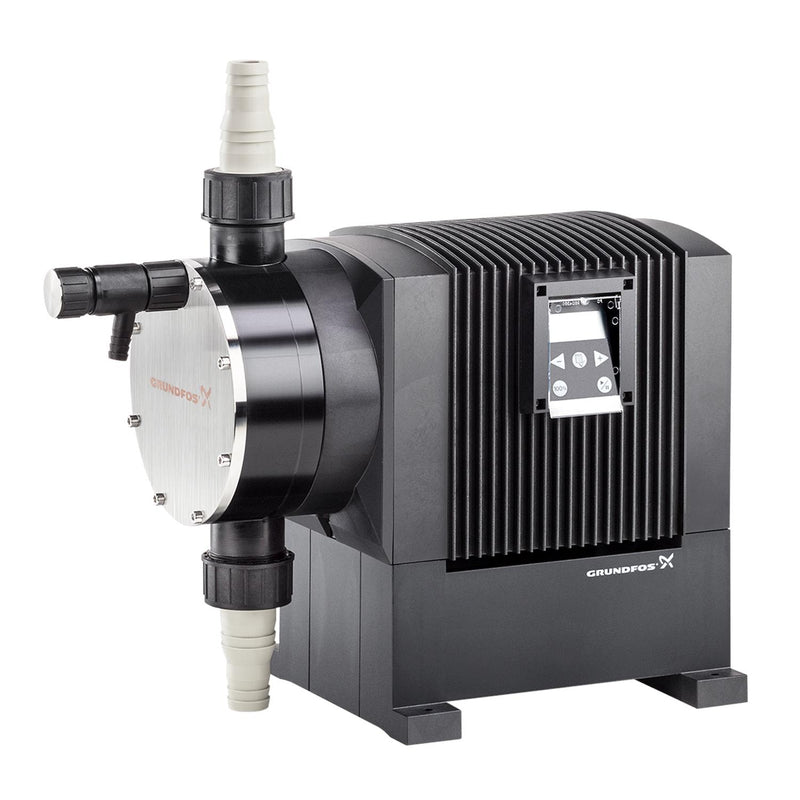

Grundfos 96529132 - DME375-10B SS/V/SS-F-31A4A4B is a precision dosing pump equipped with a stepper motor for high-accuracy metering. It fits dosing and metering systems used by water treatment, laboratory, and light industrial operators who require controlled injection rates.

Key features

  • Model DME375-10B dosing head designed for digital control and repeatable dosing
  • Tagged for DME, dosing pumps digital, and metering applications
  • Provides accurate, repeatable chemical injection to help maintain process stability

Applications

Suitable for chemical dosing, water treatment, process metering, and precise injection tasks in facilities, labs, and small industrial systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96529132

EAN 5700397157428
Applications Dosing & Disinfection
4-20 mA control not integrated
Anti-cavitation function integrated
Approvals CSA
Batch (puls) not integrated
Batch (timer) not integrated
Capacity 375 l/h
Capacity limit max. capacity limitation function integrated
Control panel front
Control variant B
Density 62.29 lb/ft³
Gasket FKM
Gross weight 65.3 lb
Housing Stainless steel 1.4401
Level control not integrated
Mains frequency 60 Hz
Material Pricing Group 42
Max. capacity 1 375 l/h
Maximum operating pressure 10 bar
Model A
Net weight 58.4 lb
Other in/output no
Power 1 240 W
Power input - P1 240 W
Product family DME
Pulse control not integrated
Pump housing Stainless steel 1.4401
Pump inlet THREADED NPT 1 1/4"
Pump outlet THREADED NPT 1 1/4"
Pumped liquid Water
Rated current 2.4 A
Rated voltage 1 x 120-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Type of cable plug USA
Valve Standard
Valve ball Stainless steel 1.4401
Venting valve no

Motor Curves

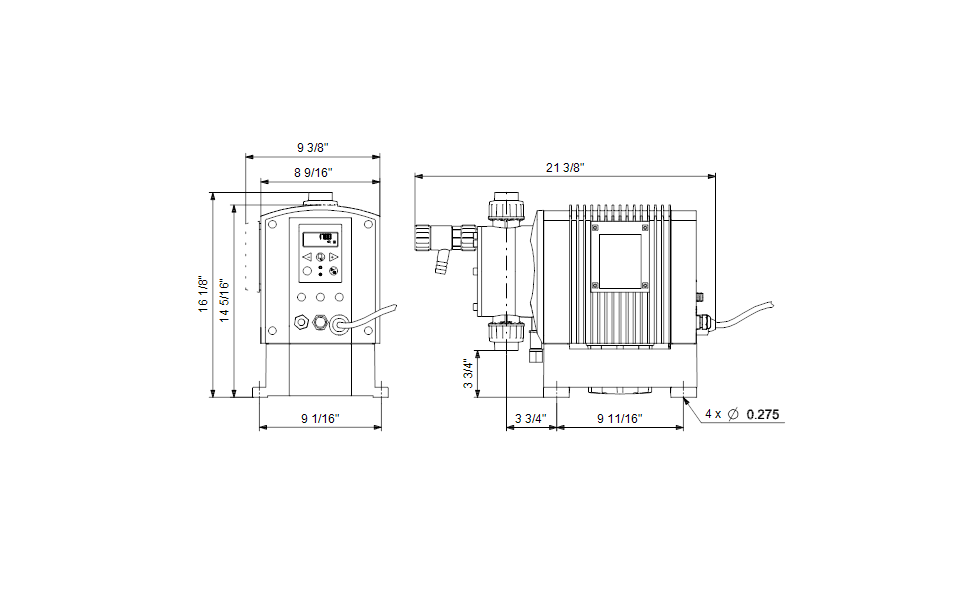

Dimensional Drawing

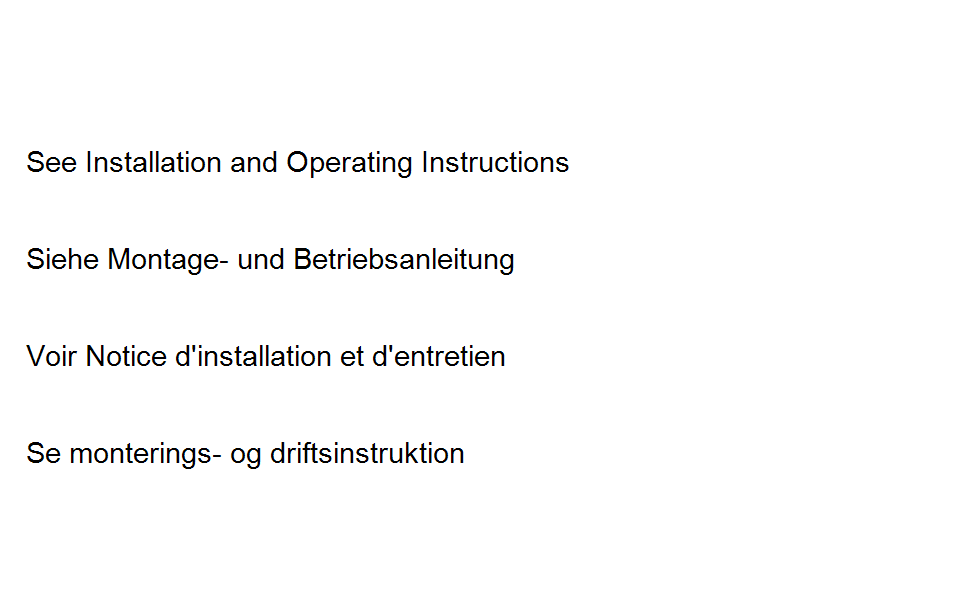

DWiring Diagram
