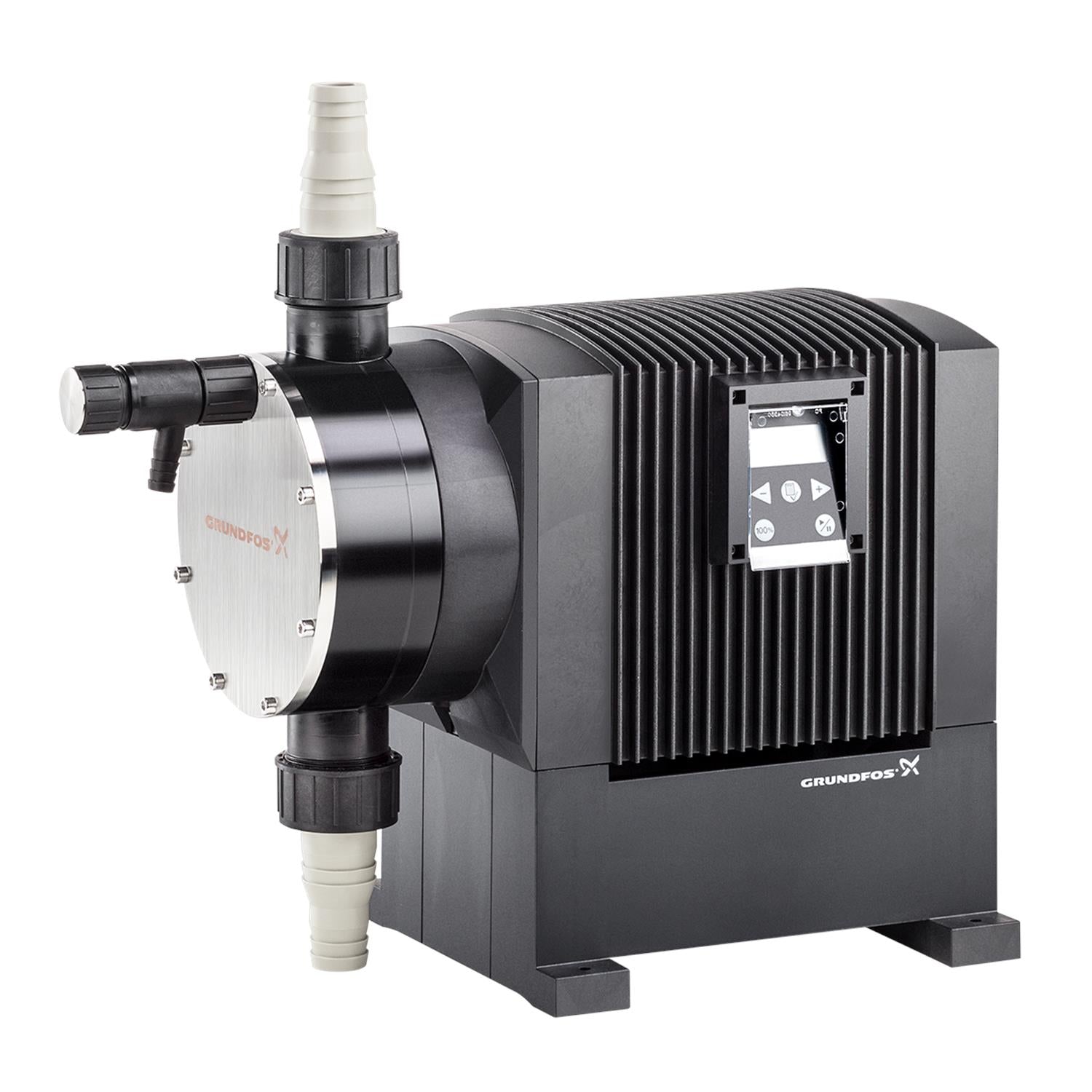

Grundfos 95905785 - DME375-10AR PV/V/G-F-32A4A4B
Grundfos 95905785 - DME375-10AR PV/V/G-F-32A4A4B
Grundfos 95905785 - DME375-10AR PV/V/G-F-32A4A4B
Grundfos 95905785 - DME375-10AR PV/V/G-F-32A4A4B

Grundfos 95905785 - DME375-10AR PV/V/G-F-32A4A4B

GRUNDFOSSKU: 95905785
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

DME375-10AR PV/V/G-F-32A4A4B |

EAN 5700837553179
Applications Dosing & Disinfection
4-20 mA control input for analog 4-20 mA control integrated
Anti-cavitation function integrated
Approvals CE
Batch (puls) puls-based batch function integrated
Batch (timer) timer-based batch function integrated
Capacity 375 l/h
Capacity limit max. capacity limitation function integrated
Control panel front
Control variant AR
Density 62.29 lb/ft³
Gasket FKM
Gross weight 55.4 lb
Housing PVDF
Level control input for dual-level sensor or external start/stop integrated
Mains frequency 60 Hz
Material Pricing Group 42
Max. capacity 1 375 l/h
Maximum operating pressure 10 bar
Model A
Net weight 48.5 lb
Other in/output ALARM RELAY
Power 1 240 W
Power input - P1 240 W
Product family DME
Pulse control input for pulse control integrated
Pump housing PVDF
Pump inlet THREADED NPT 1 1/4"
Pump outlet THREADED NPT 1 1/4"
Pumped liquid Water
Rated current 2.4 A
Rated voltage 1 x 120-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Type of cable plug USA
Valve SPRING LOADED
Valve ball Glass
Venting valve integrated in pump housing

Motor Curves

Dimensional Drawing

×
