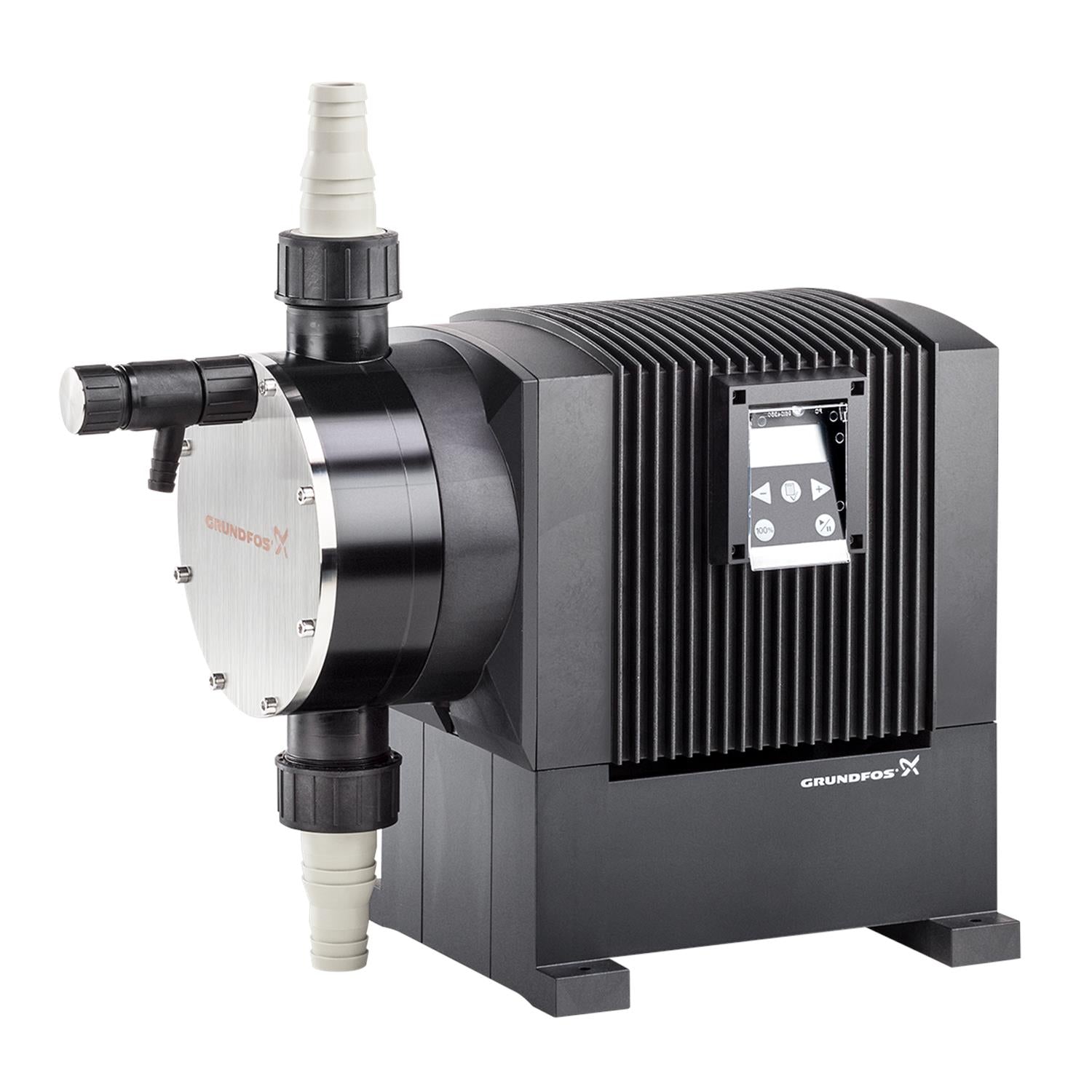

![Grundfos 95905760 - DME375-10AR PP/E/SS-F-32A4A4B]()
![Grundfos 95905760 - DME375-10AR PP/E/SS-F-32A4A4B]()
![Grundfos 95905760 - DME375-10AR PP/E/SS-F-32A4A4B]()
![Grundfos 95905760 - DME375-10AR PP/E/SS-F-32A4A4B]()
Description
DME375-10AR PP/E/SS-F-32A4A4B |
EAN
5700837552912
Applications
Dosing & Disinfection
4-20 mA control
input for analog 4-20 mA control integrated
Anti-cavitation
function integrated
Approvals
CE
Batch (puls)
puls-based batch function integrated
Batch (timer)
timer-based batch function integrated
Capacity
375 l/h
Capacity limit
max. capacity limitation function integrated
Control panel
front
Control variant
AR
Density
62.29 lb/ft³
Gasket
EPDM
Gross weight
53.2 lb
Housing
Polypropylene
Level control
input for dual-level sensor or external start/stop integrated
Mains frequency
60 Hz
Material Pricing Group
42
Max. capacity 1
375 l/h
Maximum operating pressure
10 bar
Model
A
Net weight
46.3 lb
Other in/output
ALARM RELAY
Power 1
240 W
Power input - P1
240 W
Product family
DME
Pulse control
input for pulse control integrated
Pump housing
Polypropylene
Pump inlet
THREADED NPT 1 1/4"
Pump outlet
THREADED NPT 1 1/4"
Pumped liquid
Water
Rated current
2.4 A
Rated voltage
1 x 120-240 V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Selected liquid temperature
68 °F
Type of cable plug
USA
Valve
SPRING LOADED
Valve ball
Stainless steel 1.4401
Venting valve
integrated in pump housing
Motor Curves
Dimensional Drawing
OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)
Water Utility, Optimized solutions for Municipalities (Product brochure)
DME, Variant AR, 16 to 248 gph (60-940 l/h) (Installation and operating instructions)
DME, Variant B (Multi language)
DME, A (2-48 l/h) (Installation and operating instructitons)
