Description

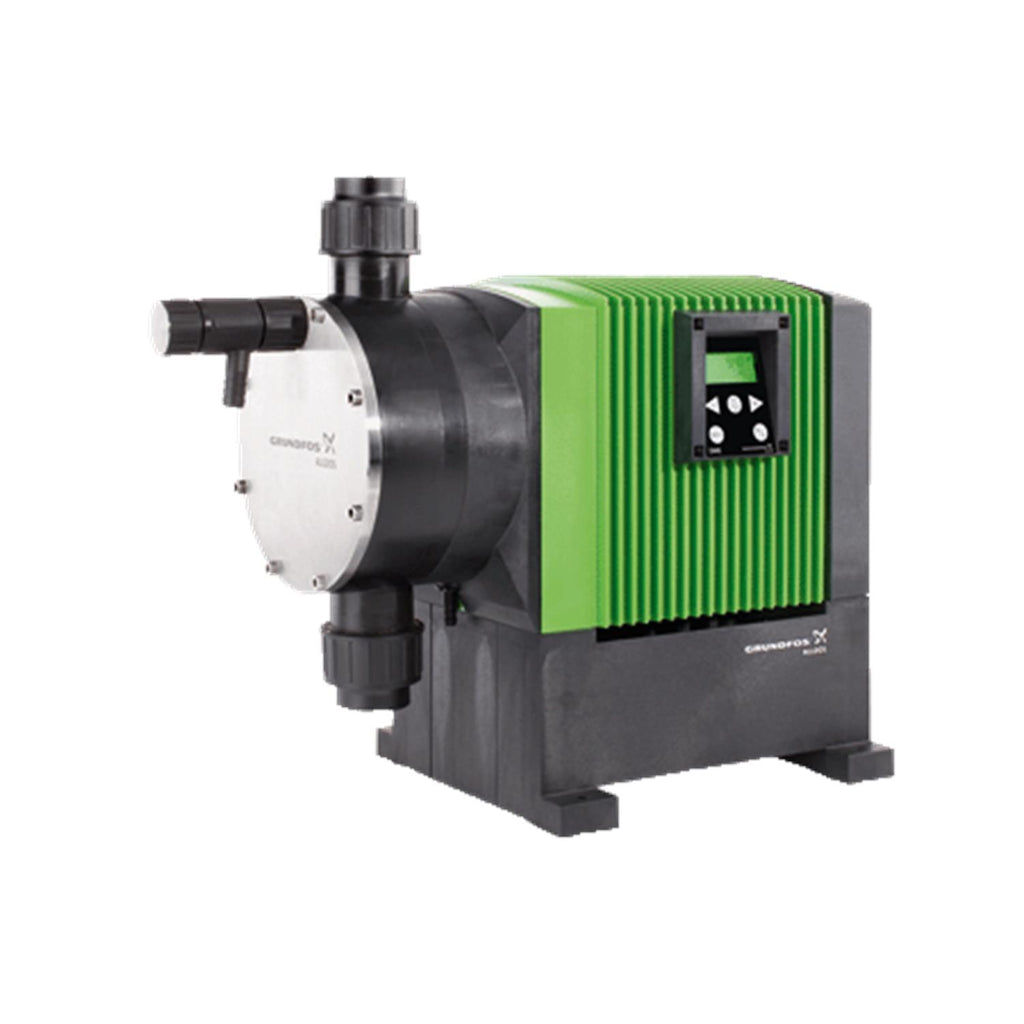

The Grundfos 96529126 (DME 375-10 B) is a Digital Dosing Pump. Diaphragm dosing pump with internal brushless motor for chemical dosing. Rated 120-240V, 1.0-Phase, 60 Hz. Applications include Process liquids transfer, Cooling, Industrial process water treatment.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96529126 |
| Product Series | DME |
| Series Description | Digital Dosing Pump |
| Voltage | 120-240V |
| Phase | 1.0-Phase |
| Frequency | 60 Hz |
| Max Operating Pressure | 145.04psi |
| Inlet Connection | THREADED NPT 1 1/4" |
| Outlet Connection | THREADED NPT 1 1/4" |
| Housing Material | Polypropylene |
| Approvals / Certifications | CSA, CE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 120-240V, 1.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. DME pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700397157367
- Applications
- Dosing & Disinfection
- 4-20 mA control
- not integrated
- Anti-cavitation
- function integrated
- Approvals
- CSA
- Batch (puls)
- not integrated
- Batch (timer)
- not integrated
- Capacity
- 375 l/h
- Capacity limit
- max. capacity limitation function integrated
- Control panel
- SIDE
- Control variant
- B
- Density
- 62.29 lb/ft³
- Gasket
- FKM
- Housing
- Polypropylene
- Level control
- not integrated
- Mains frequency
- 60 Hz
- Material Pricing Group
- 42
- Max. capacity 1
- 375 l/h
- Maximum operating pressure
- 10 bar
- Other in/output
- no
- Product family
- DME
- Pulse control
- not integrated
- Pump housing
- Polypropylene
- Pump inlet
- THREADED NPT 1 1/4"
- Pump outlet
- THREADED NPT 1 1/4"
- Pumped liquid
- Water
- Rated voltage
- 1 x 120-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Type of cable plug
- USA
- Valve
- Standard
- Valve ball
- Glass
- Venting valve
- integrated in pump housing

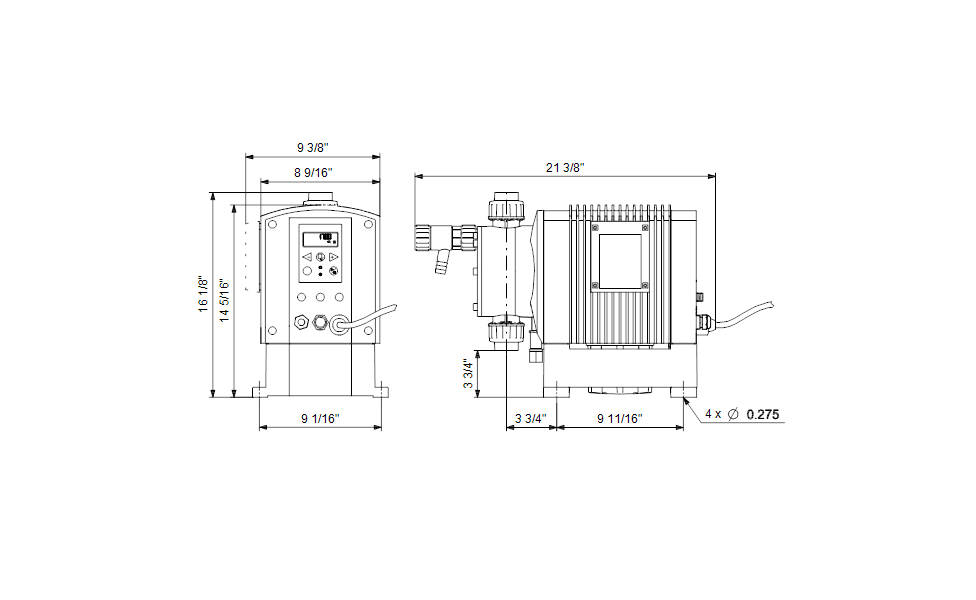

Dimensional Drawing
Wiring Diagram
