Grundfos 96622393 - DIS-D, 1-D, W-H

This item ships free!
GRUNDFOSSKU: 96622393

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

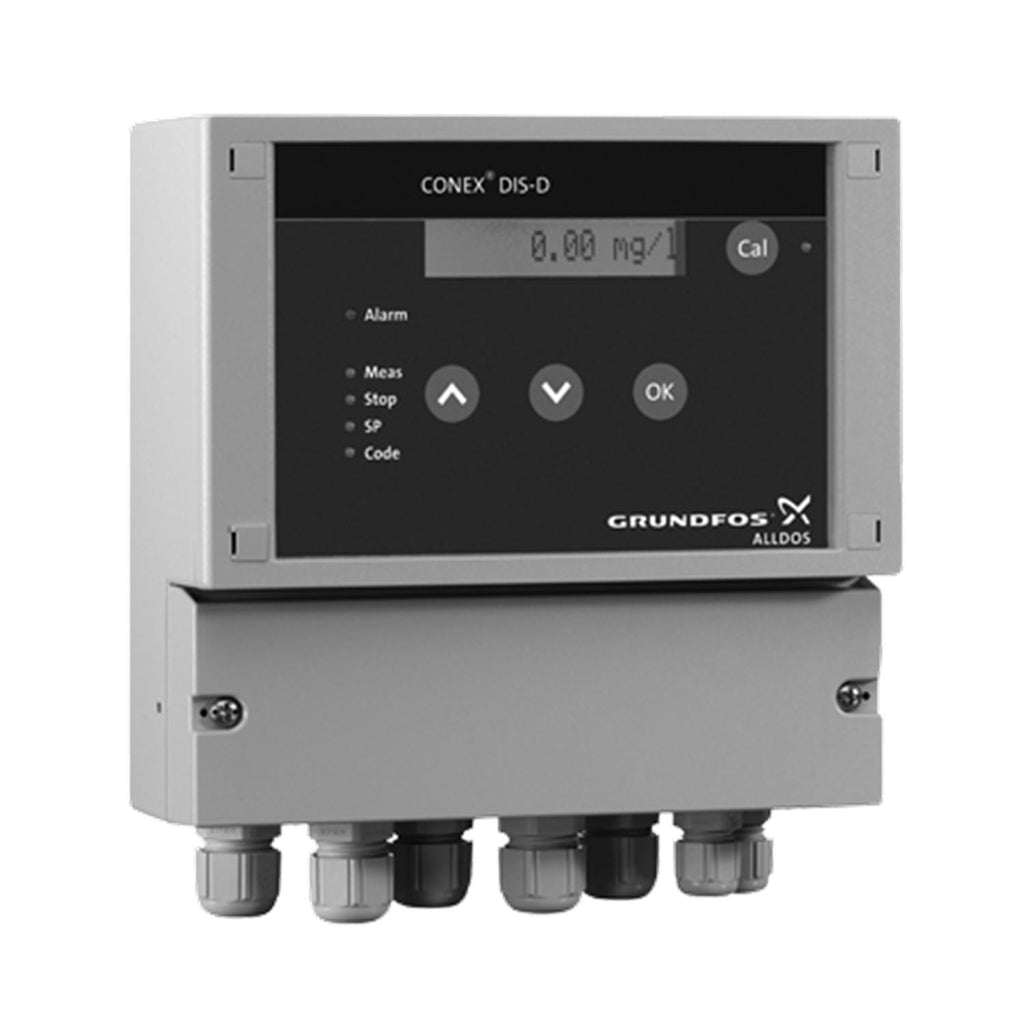

Measurement & Control Unit DIS-D DIS-D, 1-D, W-HPN: 96622393 Type 346-2000-10002 Measuring amplifier and controllerThe Conex® DIS-D is a low-end, cost-efficient unit for amplifying and control, designed to control disinfection processes that use chlorine, chlorine dioxide or ozone. The DIS-D controller is able to monitor and control one of these parameters: Chlorine, 0 – 20 mg/l, in 2 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 20 mg/l, in 2 measuring ranges, or free adjustable
Ozone, 0 – 20 mg/l, in 2 measuring range, or free adjustableeffective measuring range for ozone is 0, 0 - 5, 0 mg/lmeasuring amplifiervoltage indications:

EAN 5700835030726
Electrode 1 Cl2
Enclosure class (IEC 34-5) IP65
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Mounted on Wall mounting
Power 1 15 VA
Product number Alldos 346-2000-10002
Rated voltage x 115/120 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Type key DIS-D

Motor Curves

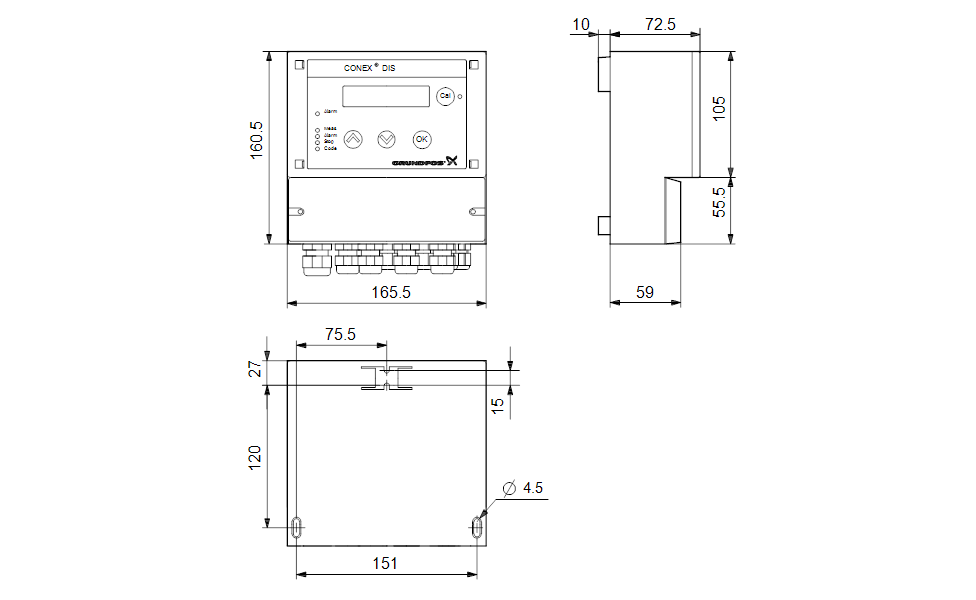

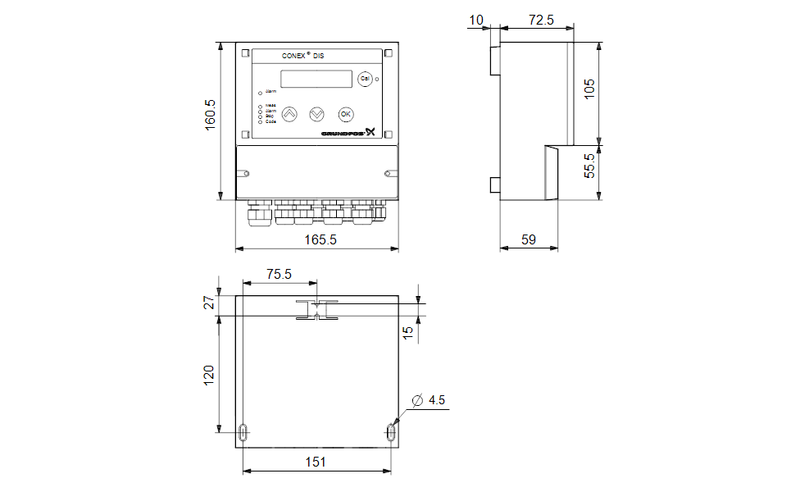

Dimensional Drawing
