Description

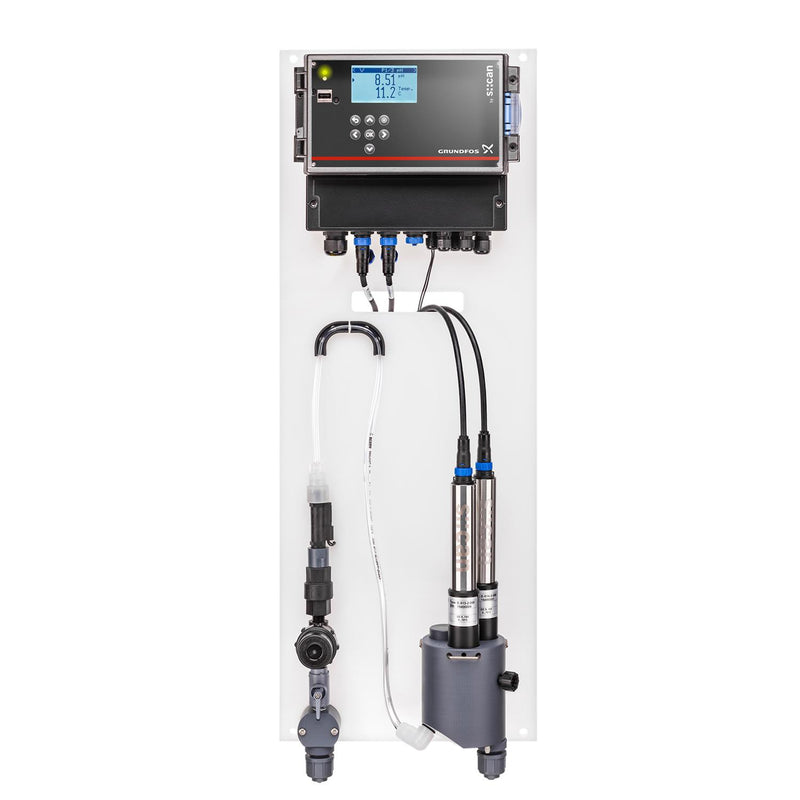

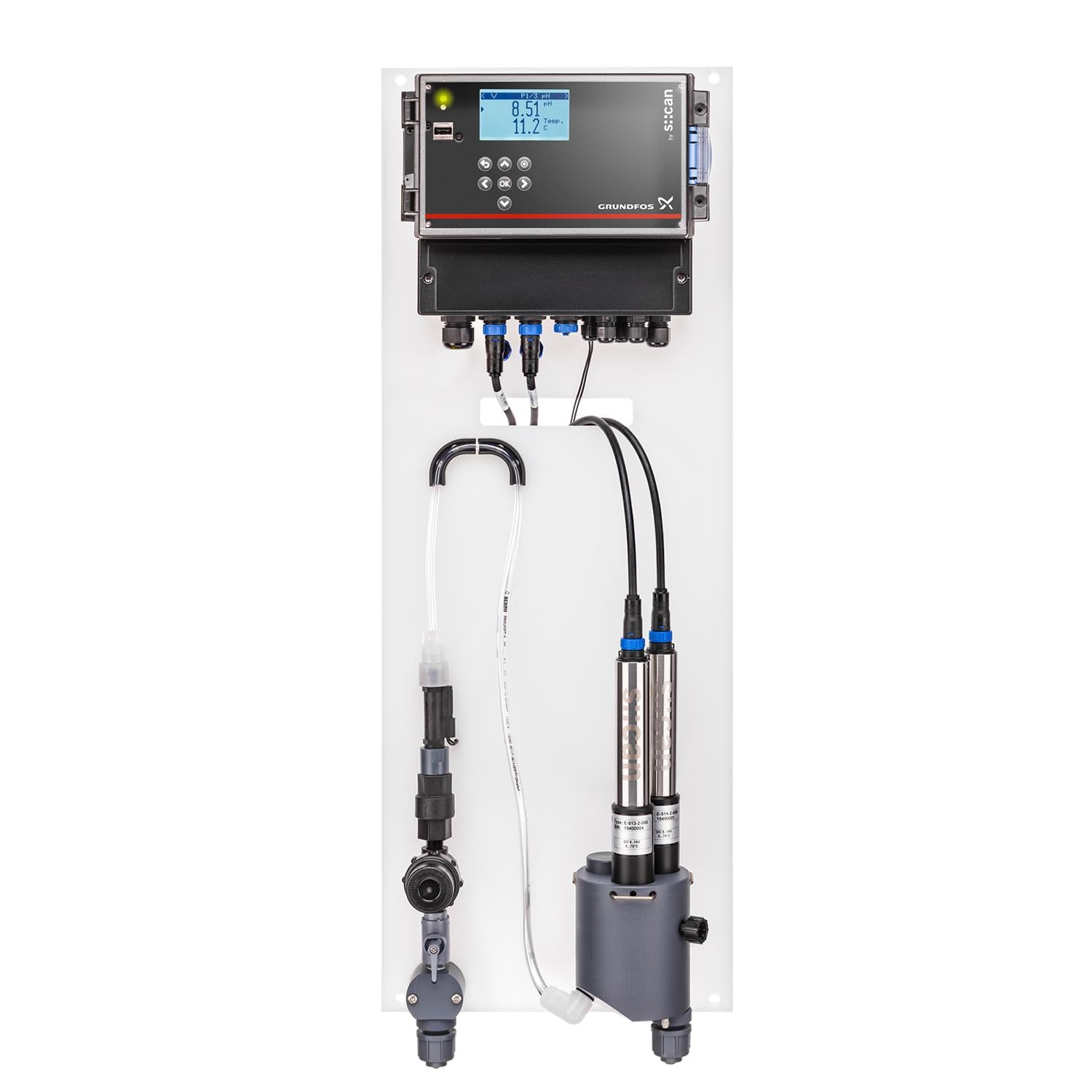

DID-3 TI2-ORP/PH PN: 98915668 System for measurement and control of water quality parametersThe DID system with tank immersed sensor(s) is intended for monitoring and control of pH, ORP, conductivity and temperatureThe sensor(s) are placed directly in the tank or basin without the need for a bypass line and flow cell. The system is a kit for assembly on site and includes a control unit CU382, the water parameter sensor(s) with cable(s) to the control unit and tank immersion sensor holder(s). CU 382 control unit: Intuitive plain-text operation
Data logger functionality (settings, calibration data and measured values)
Up to 3 controller outputs, freely assignable
Modbus (slave)
Modbus sensor interface
Data interchange with USB stick
Wide-range power supplyWater parameter sensors: Modbus interface to CU 382 control unit
Onboard storage of calibration data
Temperature measurement and compensation included for all sensors
Pre-calibrated (pH, ORP, conductivity sensor)Tank immersion sensor holder(s) For use with site supplied pipe with OD. 50mm (DN40) or inch pipe with OD. 2"
Probe guard(s) to protect the sensor tips from damage
Prepared for add on of compressed air cleaning assembly
Motor Curves

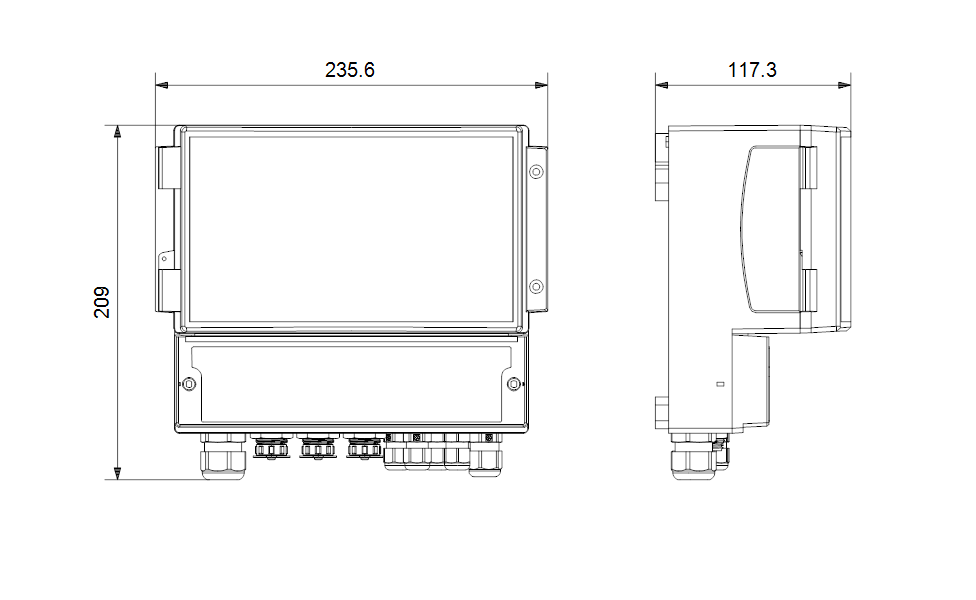

Dimensional Drawing
