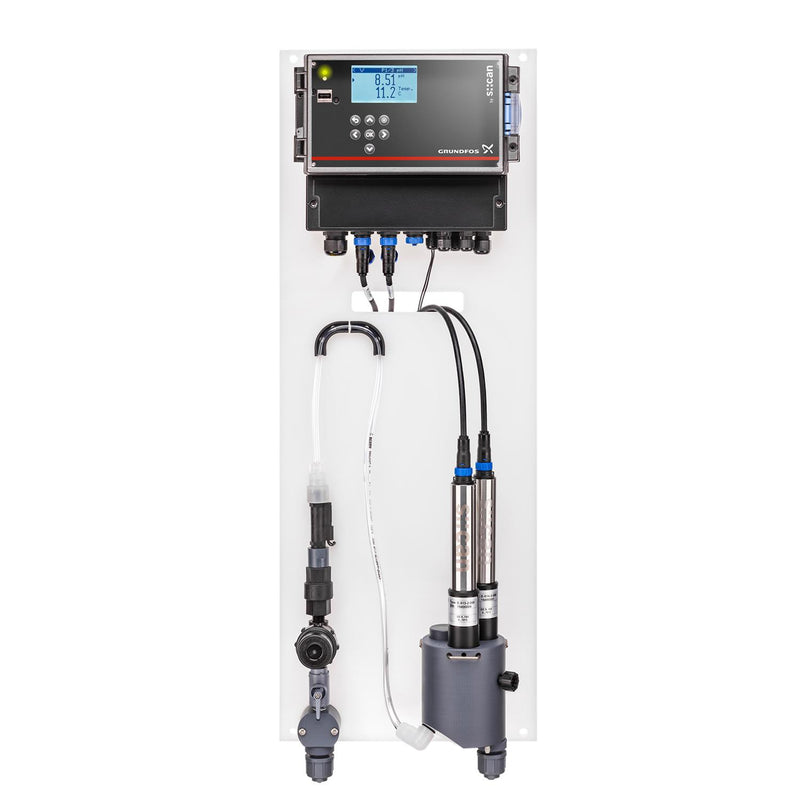

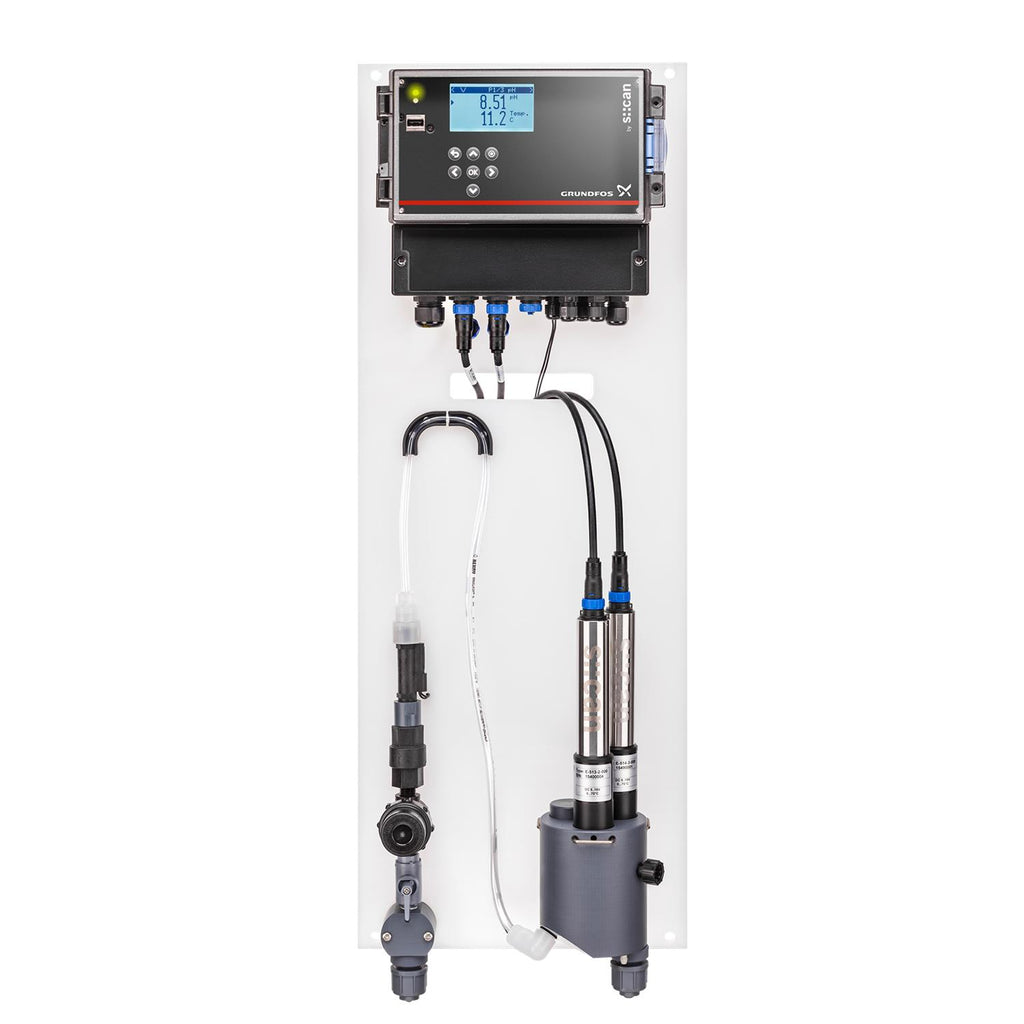

Grundfos 98915663 - DID-3 BF3-FCL2/ORP | Dosing Interface | Digital | Display

This item ships free!
GRUNDFOSSKU: 98915663

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98915663 DID-3 BF3-FCL2/ORP is a dosing interface module used with chemical feed and measurement control systems; typical users include industrial maintenance and water treatment technicians.

Key features

  • Digital dosing interface with integrated display for easy status viewing
  • Designed for measurement control and controller integration (Did, Grundfos Controls & Accessories)
  • Facilitates precise ORP/pH dosing for reliable process control

Applications

Suitable for water treatment, industrial process dosing, chemical feed systems, and general measurement/control accessory use.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98915663

EAN 5712603520537
Applications Dosing & Disinfection
Cable length and type 1
Enclosure class (IEC 34-5) 65/67
Language En
Liquid temperature range 5-45 °C
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Maximum operating pressure 3 bar
Power 1 33 VA
Preassembled Preassembled on back plate
Product family DID
Rated voltage x 100-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sensor installation type BF3 -flowcell for 3 sensors
Sensor type Sensor(s) with plug
Type Sensor(s) with plug
Type key DID-3 BF3-FCL2/ORP

Motor Curves

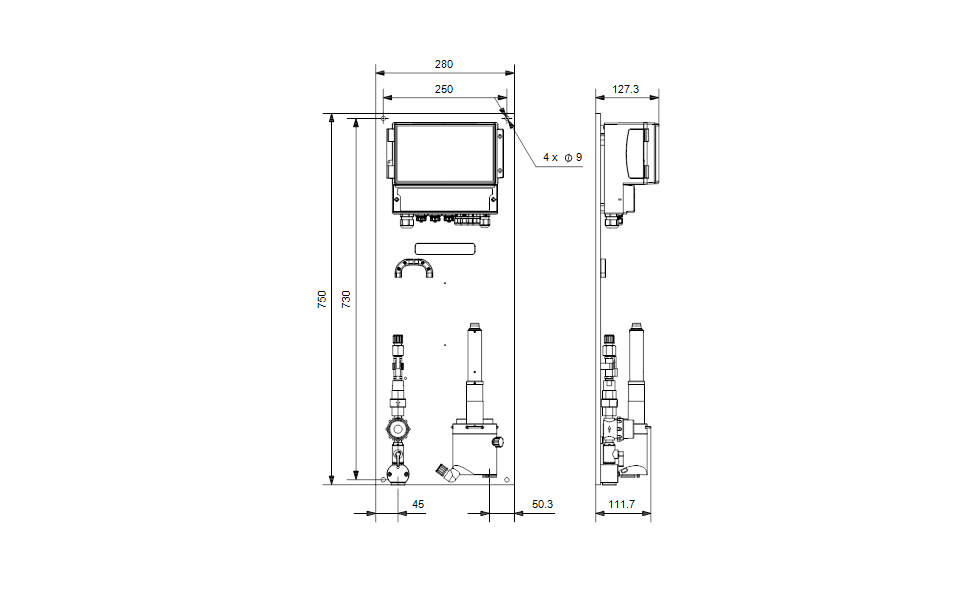

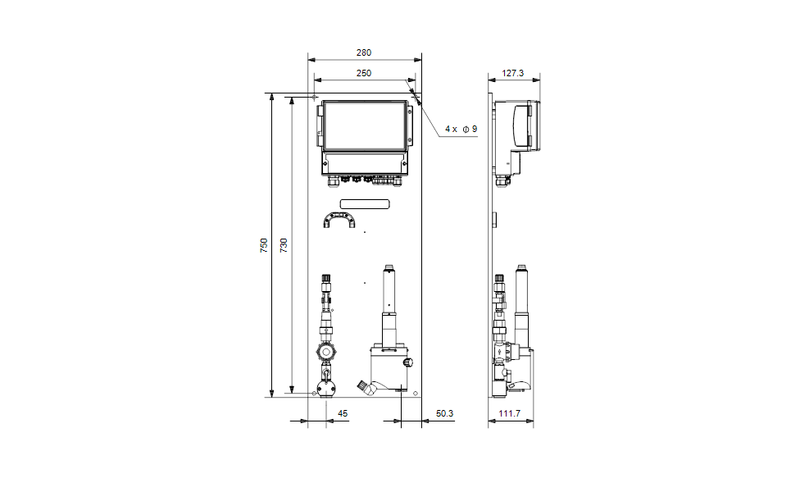

Dimensional Drawing
