Grundfos 98915658 - DID-1 BF1-PA2 | Dosing Interface | Digital | Display

This item ships free!
GRUNDFOSSKU: 98915658

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

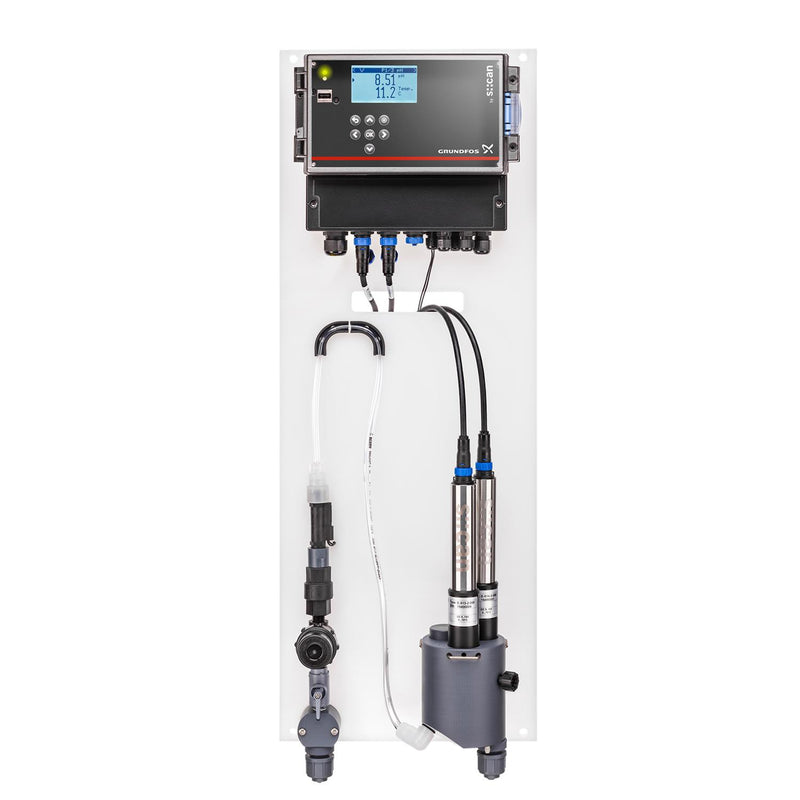

The Grundfos 98915658 DID-1 BF1-PA2 is a digital dosing interface with display designed to integrate with dosing and measurement systems; it fits control panels and is used by technicians and plant operators in industrial water treatment and process control.

Key features

  • Digital interface with built-in display for clear parameter monitoring
  • Designed for controllers and measurement control applications
  • Provides reliable dosing communication to simplify setup and maintenance

Applications

Suitable for chemical dosing panels, water treatment systems, process control cabinets, and other industrial measurement and control environments where precise dosing interfaces are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98915658

EAN 5712603520384
Applications Dosing & Disinfection
Cable length and type 1
Enclosure class (IEC 34-5) 65/67
Language En
Liquid temperature range 5-45 °C
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Maximum operating pressure 3 bar
Power 1 33 VA
Preassembled Preassembled on back plate
Product family DID
Rated voltage x 100-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sensor installation type BF1 -flowcell for 1 sensor
Sensor type Sensor(s) with plug
Type Sensor(s) with plug
Type key DID-1 BF1-PA2

Motor Curves

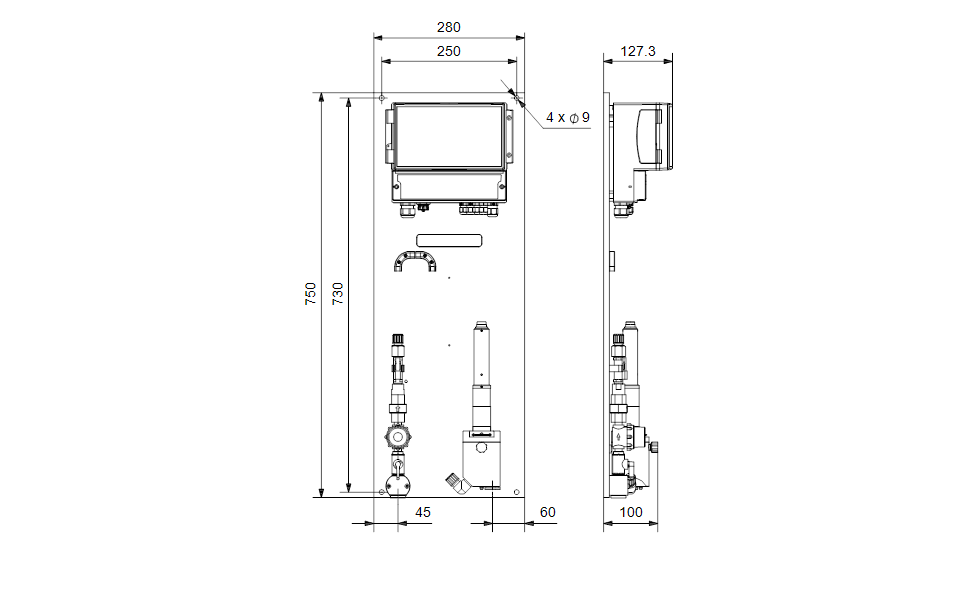

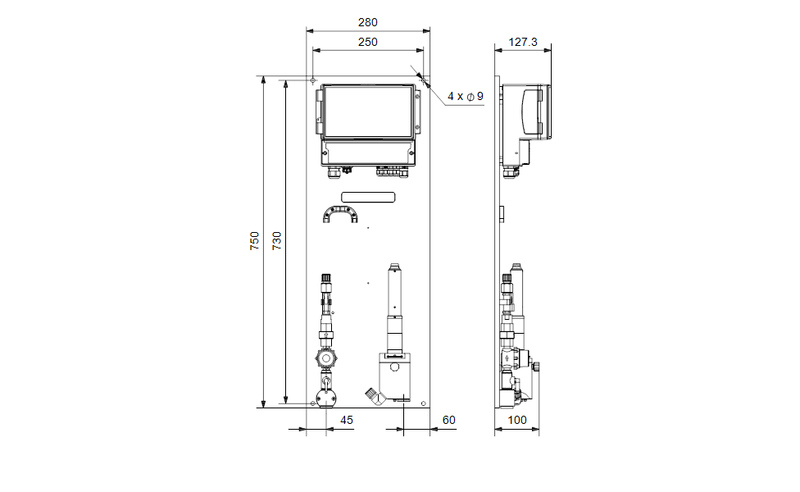

Dimensional Drawing
