Description

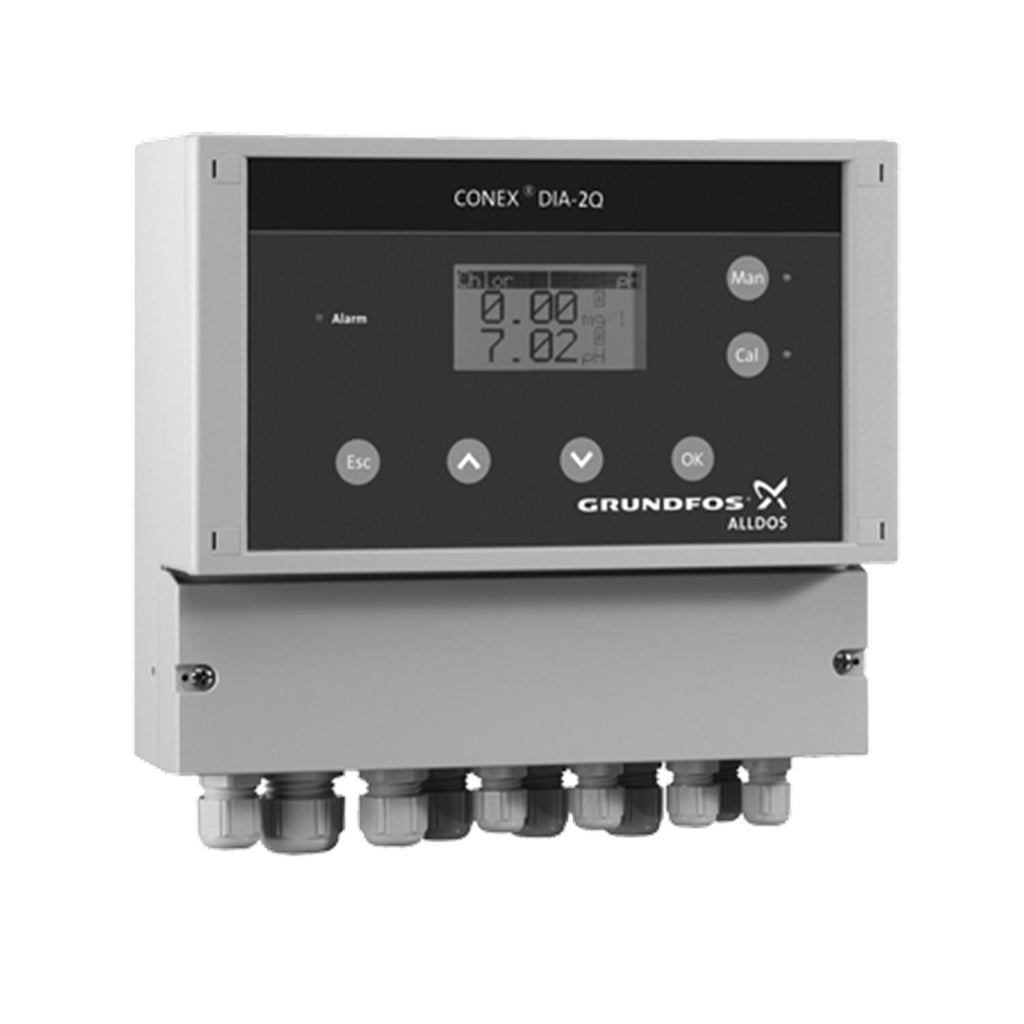

Measurement & Control Unit DIA-2Q DIA-2Q, 1-D/HP/PA 2-P/R, Q-W-HPN: 96609141 Type 352-2200-10002 Dual measuring amplifier and multi-functional controllerThe Conex® DIA-2Q is ideal for many disinfection applications. Theeasy-to-navigate user interface speaks nine languages. The unitmonitors itself and carries out a plausibility check during calibration. Additional features: automatic self-adaption input signals, manual or automatic temperature compensation, logbook function, compoundloop control for variable flow rates. The DIA-2Q controller is able to monitor / control two of these parameters at the same time: Parameter 1: (choose one)Chlorine, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Ozone, 0 – 5 mg/l, in 4 measuring ranges, or free adjustable
Hydrogen peroxide, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
Peracetic acid, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustableParameter 2: (choose one)pH, 0 – 14 pH (only Cl2), in 3 measuring ranges, or free adjustable
Redox (ORP), -1500 to +1500 mV, in 2 measuring ranges, or free adjustablemeasuring amplifiervoltage indications:
Motor Curves

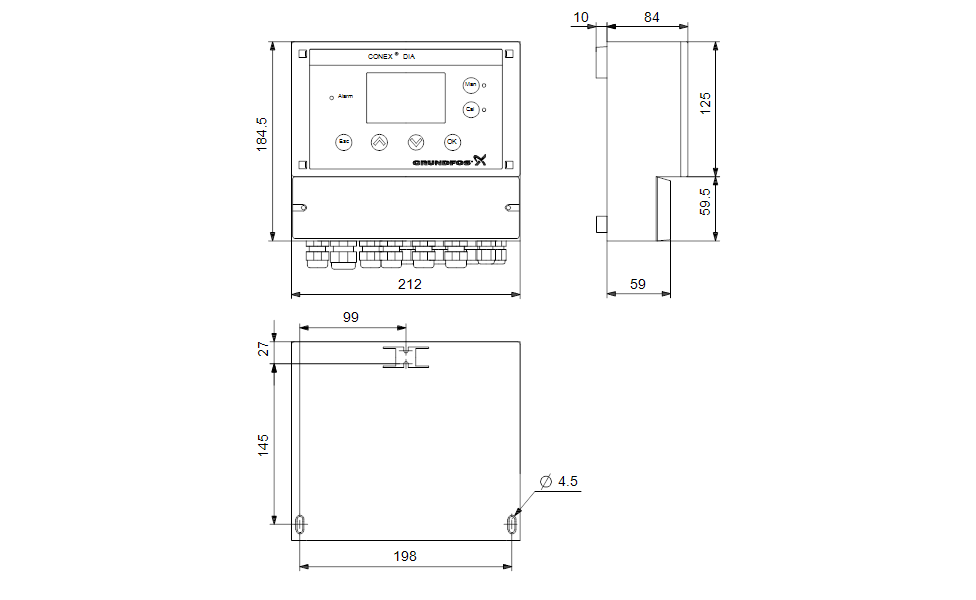

Dimensional Drawing
