Grundfos 96622369 - DIA-2, 1-D/HP 2-P, W-H | Digital Input | Alarm | Monitoring

This item ships free!
GRUNDFOSSKU: 96622369

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

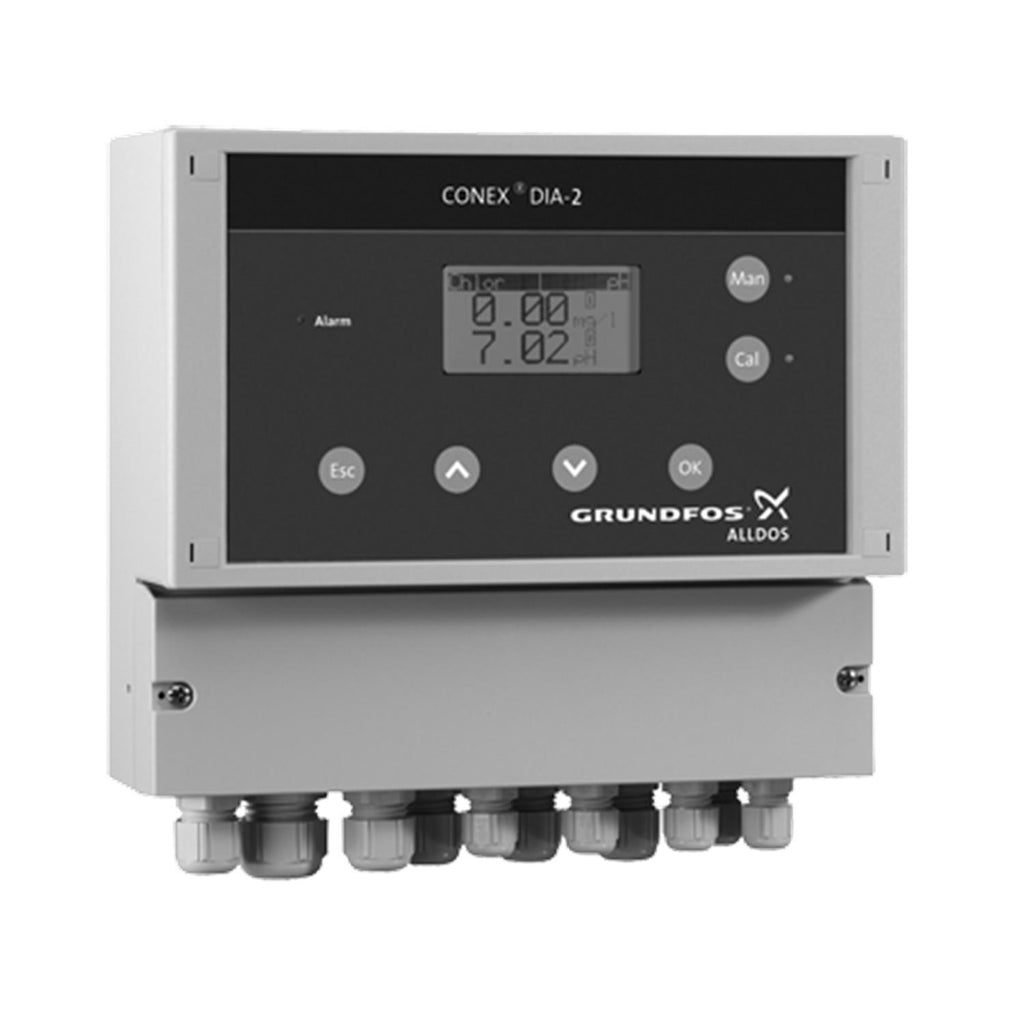

Measurement & Control Unit DIA-2 DIA-2, 1-D/HP 2-P, W-HPN: 96622369 Type 354-2200-10002 Dual measuring amplifier and controllerThe Conex® DIA-2 is ideal for many disinfection applications. Theeasy-to-navigate user interface speaks nine languages. The unitmonitors itself and carries out a plausibility check during calibration. Additional features: automatic self-adaption to input signals, manual or automatic temperature compensation, logbook function. The DIA-2 controller is able to monitor and control two of these parameters at the same time: Parameter 1: (choose one)Chlorine, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Ozone, 0 – 5 mg/l, in 4 measuring ranges, or free adjustable
Hydrogen peroxide, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustableParameter 2: (choose one)pH, 0 – 14 pH (only Cl2), in 3 measuring ranges, or free adjustablemeasuring amplifiervoltage indications:

EAN 5700835030405
Electrode 1 Cl2
Electrode 2 pH
Enclosure class (IEC 34-5) IP65
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Mounted on Wall mounting
Power 1 15 VA
Product number Alldos 354-2200-10002
Rated voltage x 115/120 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface without (only for panel installation versions)
Type key DIA-2

Motor Curves

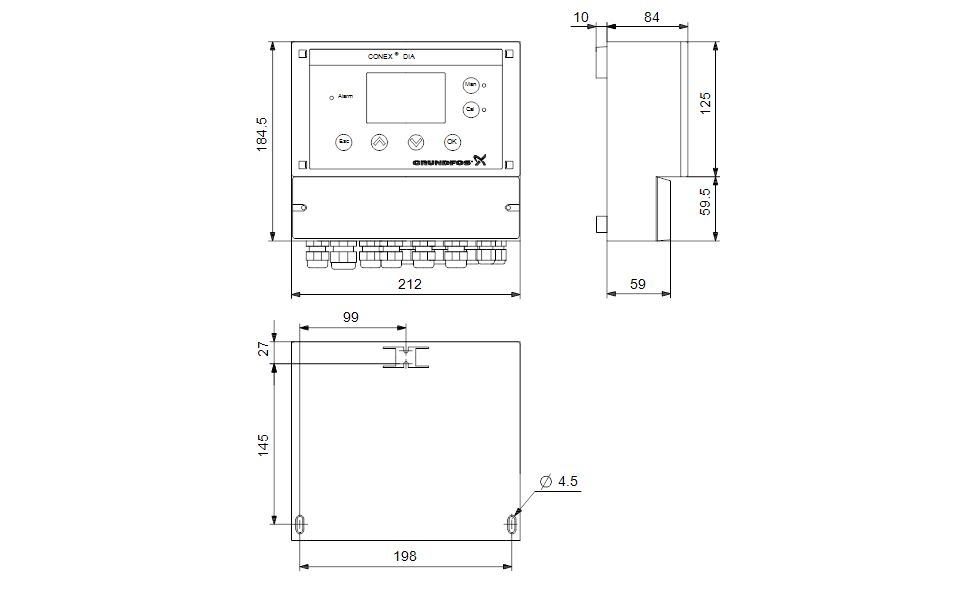

Dimensional Drawing
