Description

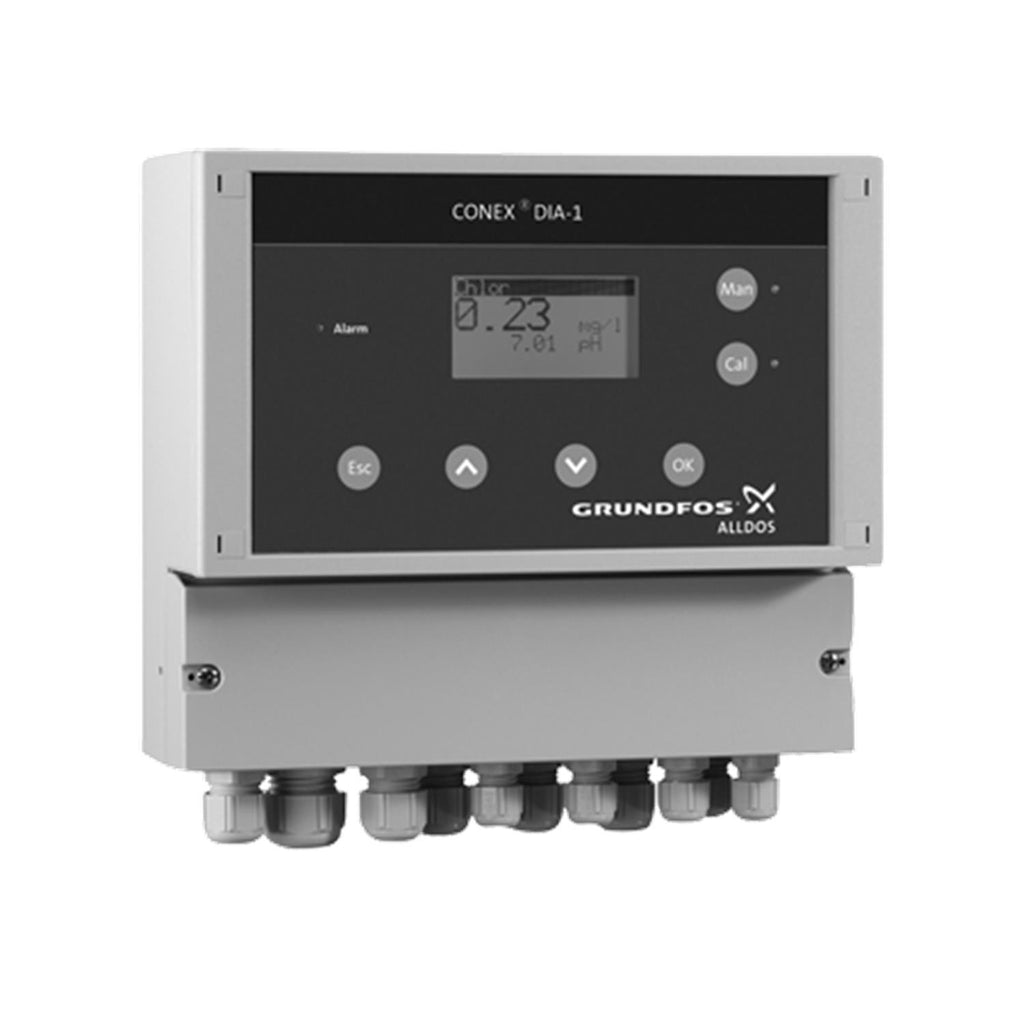

Measurement & Control Unit DIA-1 DIA-1, 1-P/R/D/HP/PA, W-HPN: 96622360 Type 350-2200-10002 Universal measuring amplifier and controllerThe Conex® DIA-1 is ideal for many disinfection applications. Theeasy-to-navigate user interface speaks nine languages. The unitmonitors itself and carries out a plausibility check during calibration. Additional features: automatic self-adaption to input signals, manual or automatic temperature compensation, logbook function. The DIA-1 controller is able to monitor / control one of these parameters: Chlorine, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Ozone, 0 – 5 mg/l, in 4 measuring ranges, or free adjustable
Hydrogen peroxide, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
Peracetic acid, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
pH, 0 – 14 pH, in 3 measuring ranges, or free adjustable
Redox (ORP), -1500 to +1500 mV, in 2 measuring ranges, or free adjustablemeasuring amplifiervoltage indications:
Motor Curves

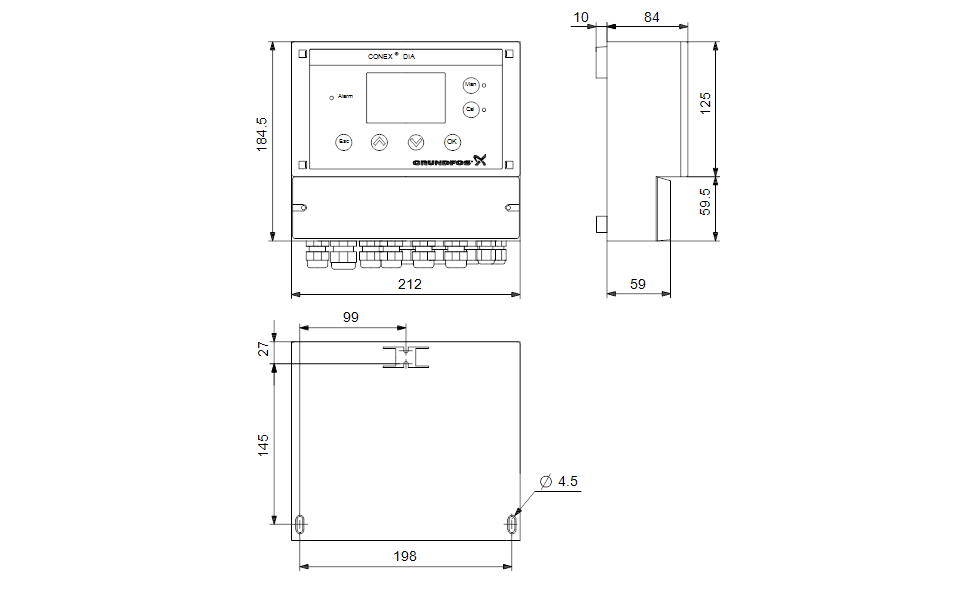

Dimensional Drawing
Perfect control for clean and healthy water
DOSING PUMPS, MEASUREMENT & CONTROL AND DISINFECTION SYSTEMS (Product brochure)
SUSTAINABLE WATER TREATMENT PROJECTS
Process Driven Engineering (Leaflet)
GRUNDFOS DISTRICT HEATING (Product brochure)
Conex® DIA-1 (Multi language) (Installation and operating instructions)
