Grundfos 96622359 - DIA-1, 1-P/R/D/HP/PA, W-G | Digital Input | Alarm | Monitoring

This item ships free!
GRUNDFOSSKU: 96622359

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

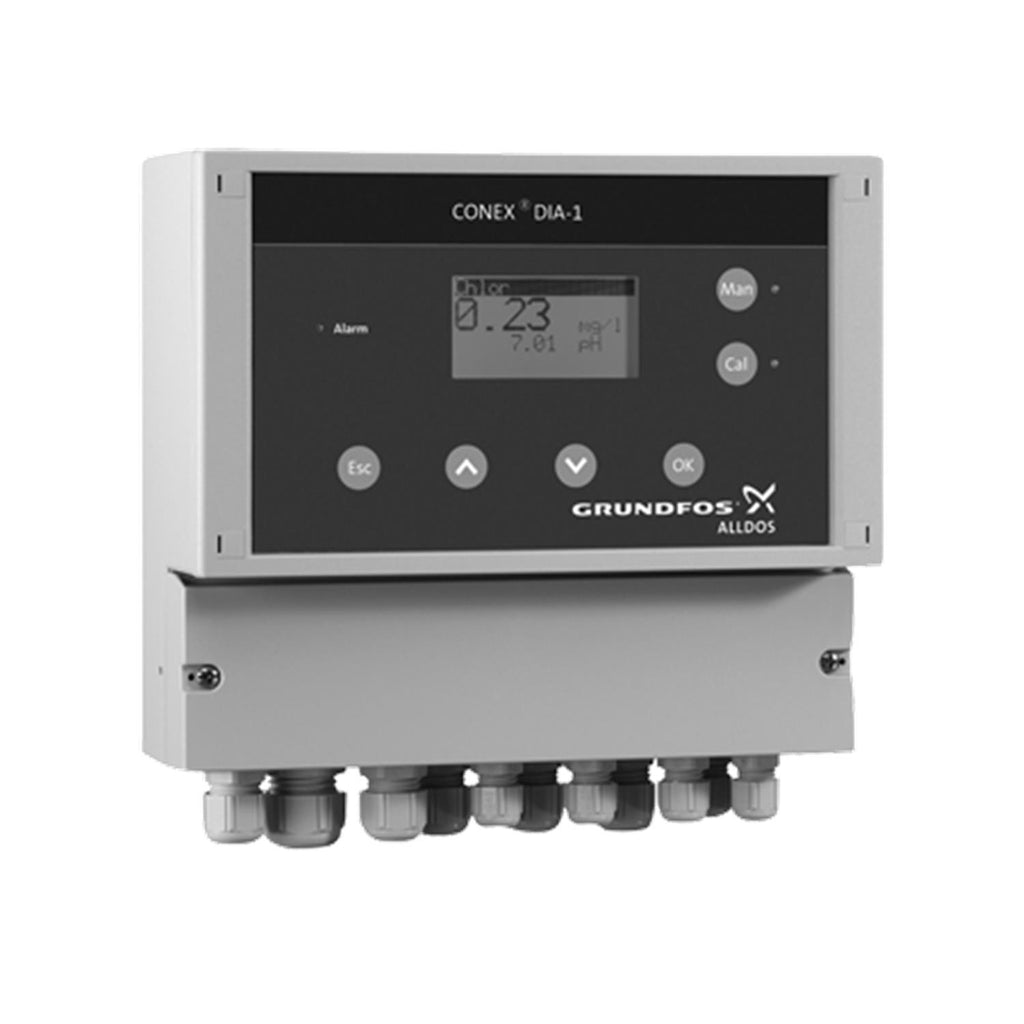

Measurement & Control Unit DIA-1 DIA-1, 1-P/R/D/HP/PA, W-GPN: 96622359 Type 350-2200-10000 Universal measuring amplifier and controllerThe Conex® DIA-1 is ideal for many disinfection applications. Theeasy-to-navigate user interface speaks nine languages. The unitmonitors itself and carries out a plausibility check during calibration. Additional features: automatic self-adaption to input signals, manual or automatic temperature compensation, logbook function. The DIA-1 controller is able to monitor / control one of these parameters: Chlorine, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Ozone, 0 – 5 mg/l, in 4 measuring ranges, or free adjustable
Hydrogen peroxide, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
Peracetic acid, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
pH, 0 – 14 pH, in 3 measuring ranges, or free adjustable
Redox (ORP), -1500 to +1500 mV, in 2 measuring ranges, or free adjustablemeasuring amplifiervoltage indications:

EAN 5712609582850
Applications Dosing & Disinfection
Electrode 1 ph
Enclosure class (IEC 34-5) IP65
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Mounted on Wall mounting
Power 1 15 VA
Product family Conex DIA-1
Product number Alldos 350-2200-10000
Rated voltage x 230/240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface without (only for panel installation versions)
Type key DIA-1

Motor Curves

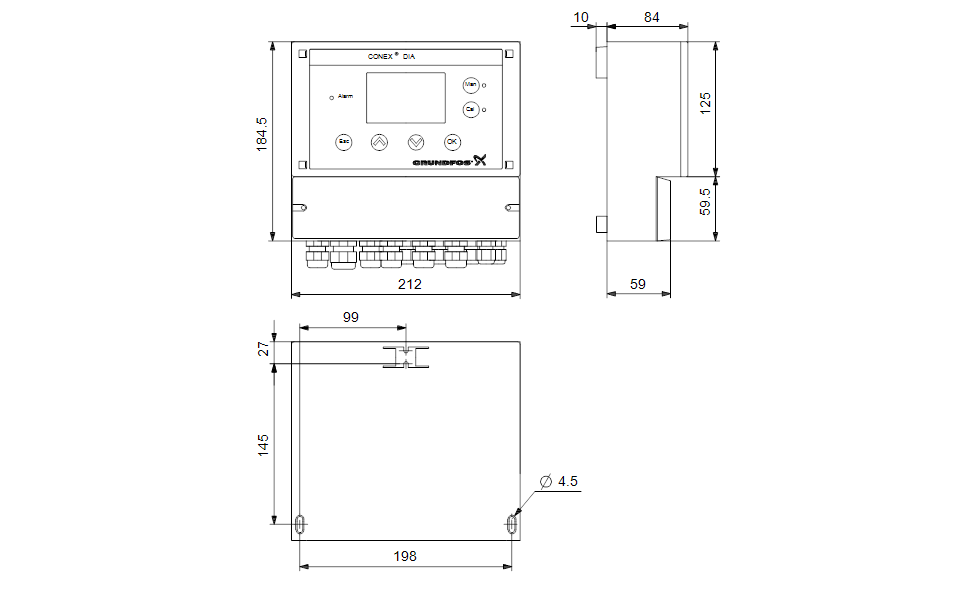

Dimensional Drawing
