Description

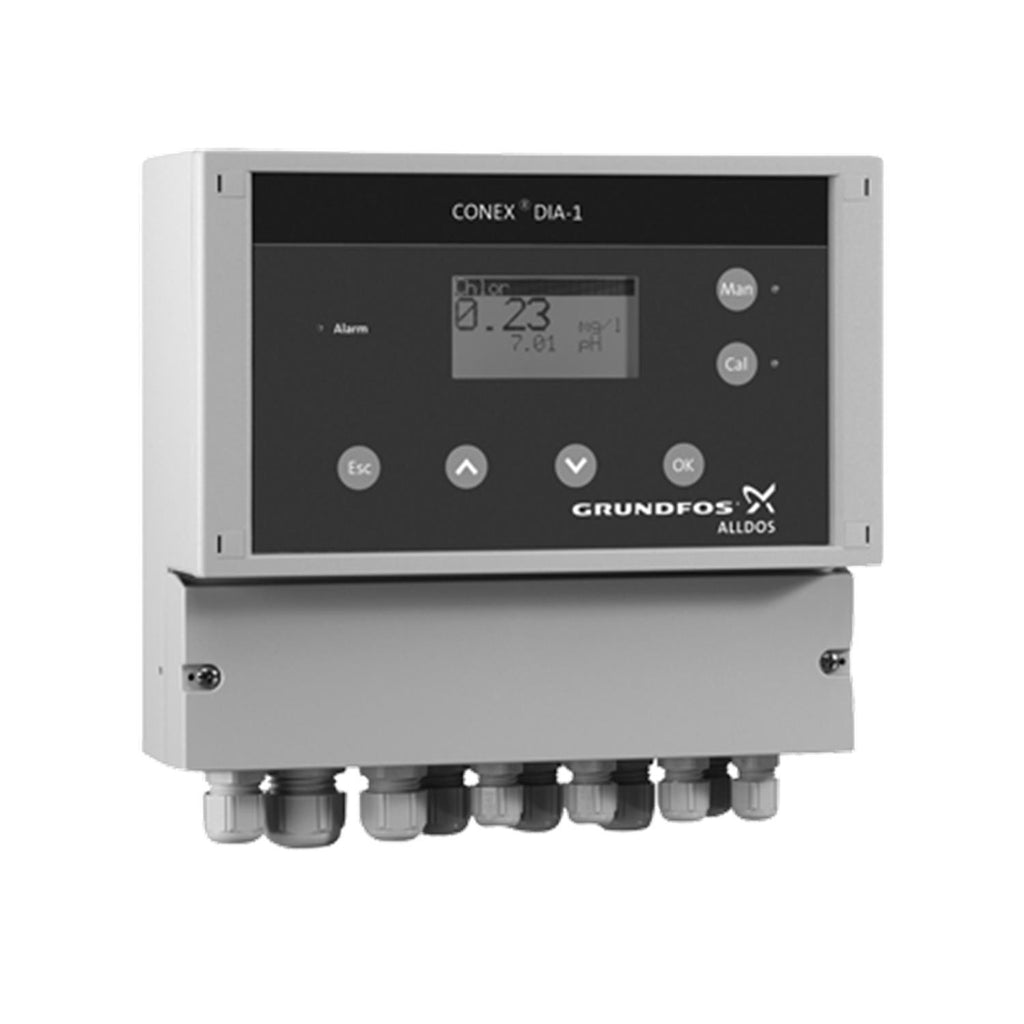

Measurement & Control Unit DIA-1 DIA-1, 1-P/R/D/HP/PA, P-HPN: 96622364 Type 350-2205-10001 Universal measuring amplifier and controllerThe Conex® DIA-1 is ideal for many disinfection applications. Theeasy-to-navigate user interface speaks nine languages. The unitmonitors itself and carries out a plausibility check during calibration. Additional features: automatic self-adaption to input signals, manual or automatic temperature compensation, logbook function. The DIA-1 controller is able to monitor / control one of these parameters: Chlorine, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Chlorine dioxide, 0 – 50 mg/l, in 7 measuring ranges, or free adjustable
Ozone, 0 – 5 mg/l, in 4 measuring ranges, or free adjustable
Hydrogen peroxide, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
Peracetic acid, 0 – 2000 mg/l, in 4 measuring ranges, or free adjustable
pH, 0 – 14 pH, in 3 measuring ranges, or free adjustable
Redox (ORP), -1500 to +1500 mV, in 2 measuring ranges, or free adjustablemeasuring amplifiervoltage indications:

EAN 5700835030344
Applications Dosing & Disinfection
Electrode 1 ph
Enclosure class (IEC 34-5) IP54
Mains frequency 50 / 60 Hz
Material Pricing Group 64
Mounted on panel installation
Power 1 15 VA
Product family Conex DIA-1
Product number Alldos 350-2205-10001
Rated voltage x 115/120 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Sens.interface installation: wall mounting
Type key DIA-1

Motor Curves

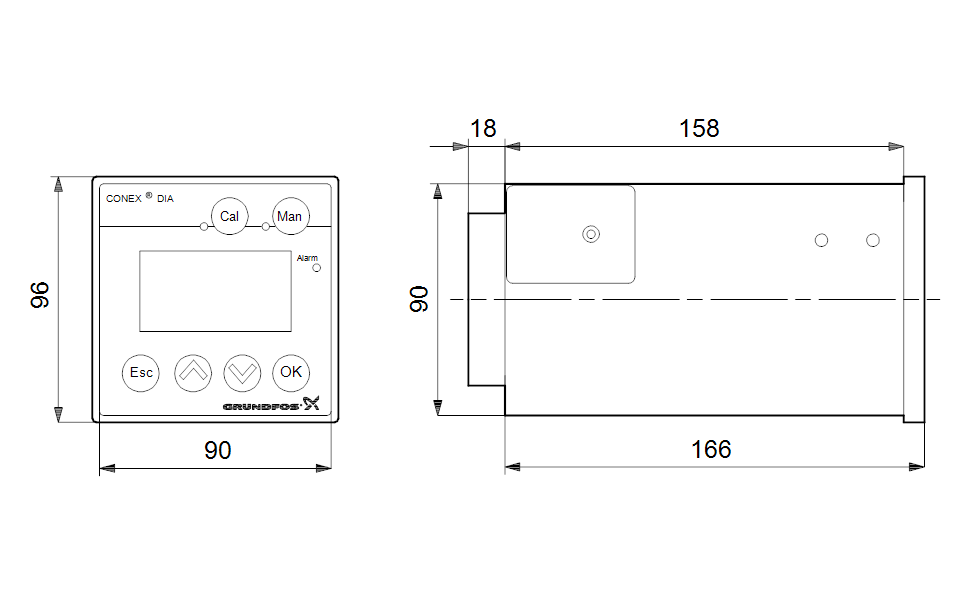

Dimensional Drawing
