Description

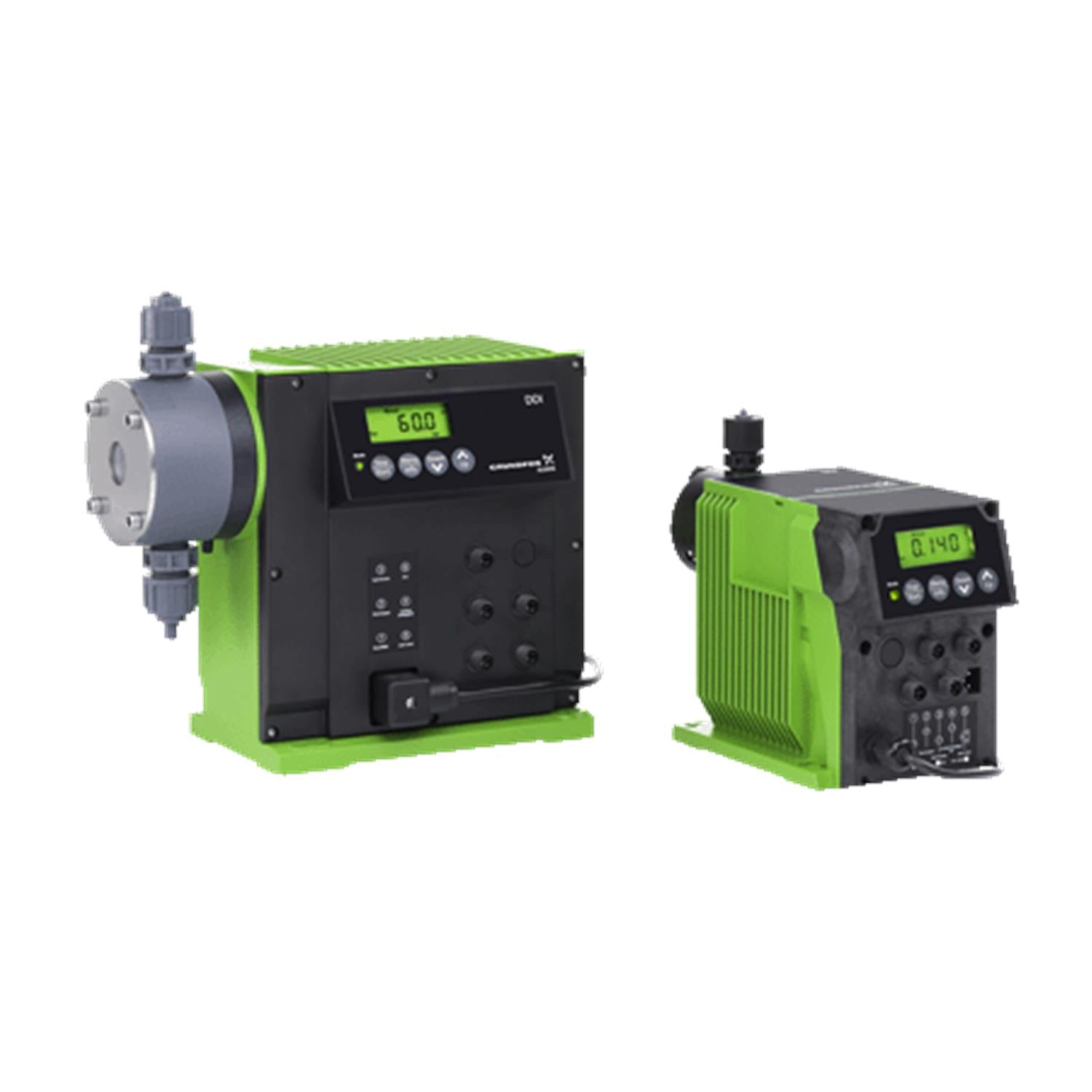

The Grundfos 96717301 (DDI 222 150-4) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 100-240 V 50/60 HzV, 1-Phase, 50, 60 Hz. Applications include Plumbing: Water Disinfection.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96717301 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 100-240 V 50/60 HzV |
| Phase | 1-Phase |
| Frequency | 50, 60 Hz |
| Protection Class (IP) | IP 65 |
| Max Operating Pressure | 58.02psi |
| Inlet Connection | Tube, 13/20 mm / cementing d.25 mm |
| Outlet Connection | Tube, 13/20 mm / cementing d.25 mm |
| Housing Material | PVC |
| Approvals / Certifications | CE |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 100-240 V 50/60 HzV, 1-Phase, 50, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700837806251
- Applications
- Dosing & Disinfection
- 4-20 mA control
- Input for analog 0/4-20 mA control integrated
- Adjustment
- Input for pulse control
- Approvals
- CE
- Capacity
- 150 l/h
- Control panel
- SIDE
- Control variant
- AR
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP 65
- Flow and pressure monitoring
- Not integrated
- Flow rate adjustment
- Input for pulse control
- Gasket
- PTFE
- Grundfos Alldos PN
- 222-150D-10209
- Housing
- PVC
- Length of cable
- 2 m
- Level control
- Input for dual-level sensor or external start/stop
- Mains frequency
- 50 / 60 Hz
- Material Pricing Group
- 60
- Max. capacity 1
- 150 l/h
- Maximum operating pressure
- 4 bar
- Other in/output
- NO
- Power 1
- 0.05 kW
- Power input - P1
- 0.05 kW
- Product family
- DDI
- Pulse control
- Input for pulse control integrated
- Pump housing
- PVC
- Pump inlet
- Tube, 13/20 mm / cementing d.25 mm
- Pump outlet
- Tube, 13/20 mm / cementing d.25 mm
- Pumped liquid
- Water
- Rated voltage
- 1 x 100-240 V 50/60 Hz V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Type of cable plug
- Australia
- Valve
- Standard
- Valve ball
- PTFE
Dimensional Drawing
