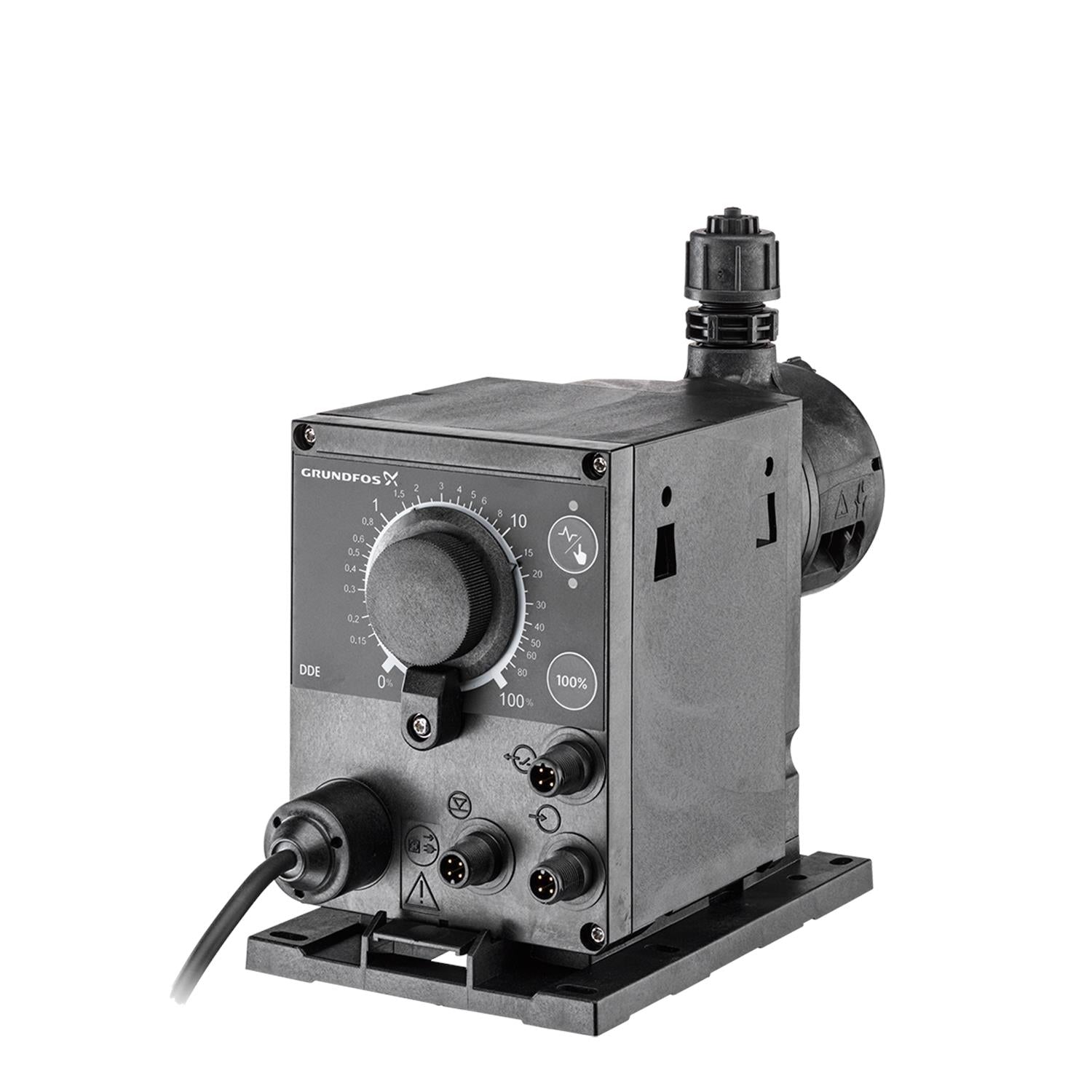

Grundfos 97721204 - DDE 6-10

GRUNDFOSSKU: 97721204

Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

DDE 6-10 | DDE 6-10 B-PVC/T/C-X-31U2U2IGThe SMART Digital DDE is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The dosing flow can be adjusted by means of an adjustment knob on a logarithmical scale from 0. 1-100%. The dosing head is composed of: Long lifetime and universal chemical resistant Full-PTFE diaphragm.
Double ball valves for highest dosing accuracy.
Deaeration valve for easy start-up. Operation modes: Manual dosing from 0. 1 to 100%. Other features: Mechanical lock to protect the pump against unauthorised access.

EAN 5710622713442
Applications Dosing & Disinfection
Material Pricing Group 68
Density 62.29 lb/ft³
Maximum operating pressure 10 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V
Pumped liquid Water
Power input - P1 19 W
Pump outlet 4/6, 6/9, 6/12, 9/12 mm
Pump inlet 4/6, 6/9, 6/12, 9/12 mm
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Net weight 4.41 lb
Gross weight 6.62 lb
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Type of cable plug Australia
Length of cable 1.5 m
Range of ambient temperature 32 .. 113 °F
Maximum power input - P1 19 W
Control variant B
Approvals CE
Type key DDE 6-10 B-PVC/T/C-X-31U2U2IG
Valve type Standard
Power 1 19 W
Max. Flow 6 l/h
Type No installation set
Gasket PTFE
Min flow 6.0 ml/h
Valve ball Ceramic
Inrush current 25A at 230V for 2ms
Turn-down ratio 0.7361111111111112

Motor Curves

Dimensional Drawing
