EAN
5712607841379
Applications
Dosing & Disinfection
Material Pricing Group
69
Density
62.29 lb/ft³
Maximum operating pressure
7 bar
Selected liquid temperature
68 °F
Rated voltage
1 x 100-240 V
Pumped liquid
Water
Power input - P1
62 W
Pump outlet
Conn.pack U3 (hose ID.19mm &..
Pump inlet
Conn.pack U3 (hose ID.19mm &..
Liquid temperature range
32 .. 104 °F
Mains frequency
50 / 60 Hz
Net weight
13.2 lb
Gross weight
15.4 lb
Enclosure class (IEC 34-5)
IP65 / NEMA 4X
Pulse control
YES
Level control
YES
Control panel
FRONT-MOUNTED
Type of cable plug
EU
Length of cable
1.5 m
Range of ambient temperature
32 .. 113 °F
Maximum power input - P1
62 W
Control variant
AR
Approvals
CE
Type key

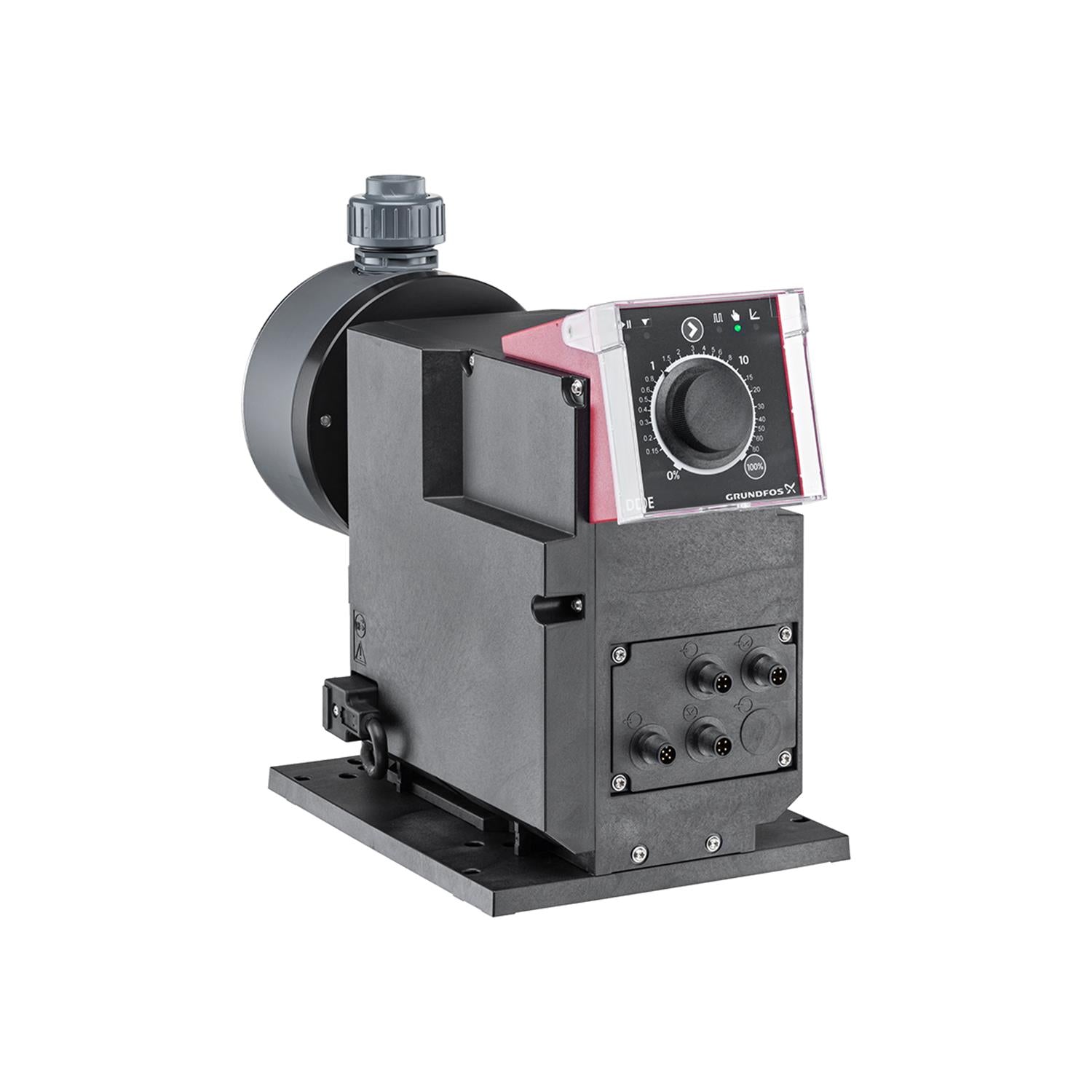

DDE 120-7 AR-PVC/E/C-F-31U3U3F
Valve type
Standard
Power 1
62 W
Max. Flow
120 l/h
Type
No installation set
Gasket
EPDM
Min flow
150 ml/h
Valve ball
Ceramic
Analog input
0/4-20 MA
Inrush current
70A at 240V (35A/100V) for 2ms
Turn-down ratio
0.5972222222222222
