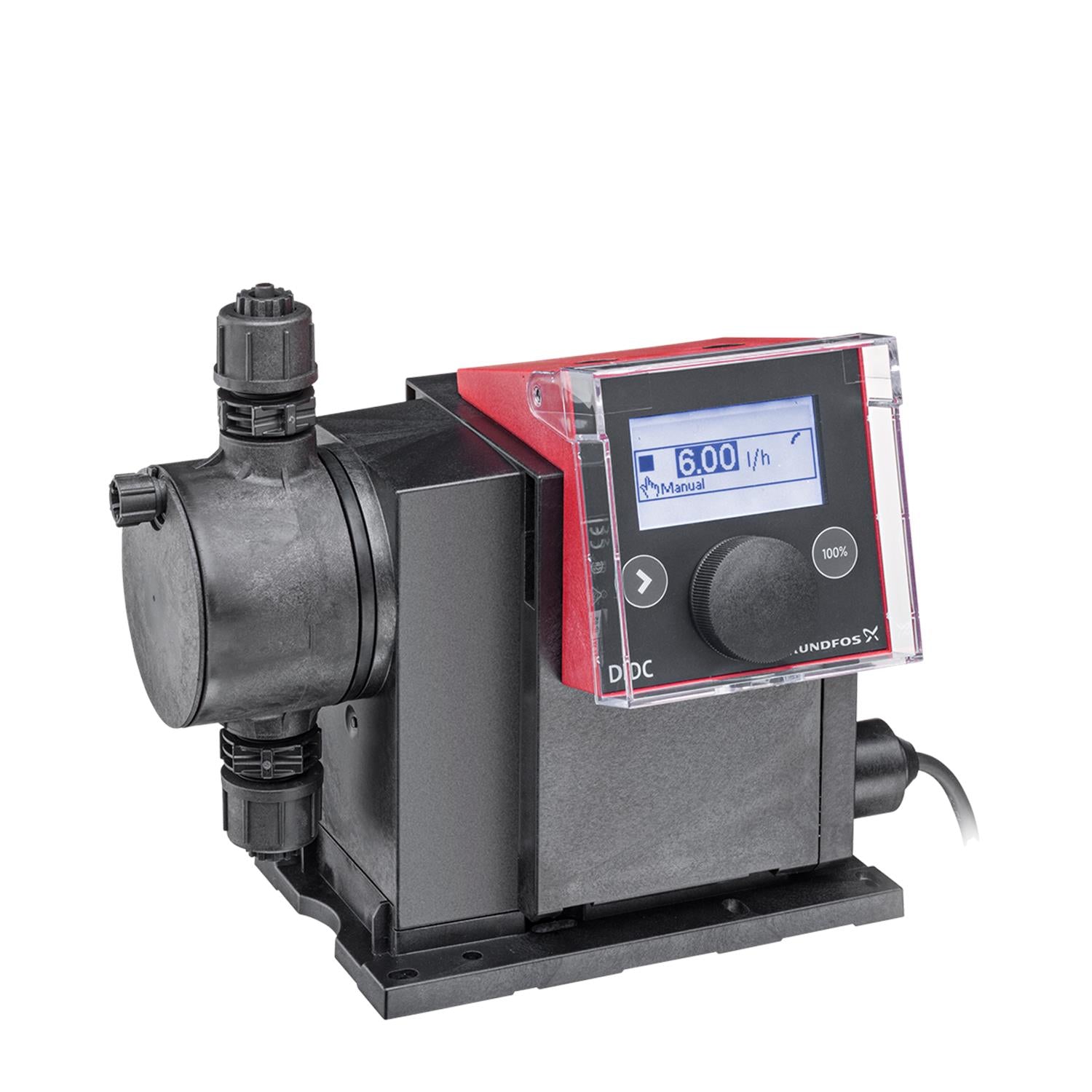

Grundfos 97721406 - DDC 9-7
Grundfos 97721406 - DDC 9-7
Grundfos 97721406 - DDC 9-7
Grundfos 97721406 - DDC 9-7

Grundfos 97721406 - DDC 9-7

GRUNDFOSSKU: 97721406
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

DDC 9-7 | DDC 9-7 A-PVC/V/C-F-31I002FGThe SMART Digital DDC is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover. The dosing head is composed of: Long lifetime and universal, chemically resistant full-PTFE diaphragm.
Double ball valves for highest dosing accuracy.
Deaeration valve for easy start-up. Operation modes: Manual dosing in ml/h, I/h or gph.
Pulse control in ml/pulse (incl. memory function). Other features: Two SlowMode steps (anti-cavitation), 50 % (maximum flow= 1. 189 US gal/hour) and 25 % (maximum flow= 0. 5944 US gal/hour), e. g. for high-viscosity or degassing liquids.
Service information display to show when service and which wear-part order number is required.
Two-step key lock function to protect the pump against unauthorised access.
Additional display function to provide further information.
Counter for total dosed volume (resettable), operating hours and others.
Save and load customised settings as well as reload of factory settings. Signal inputs/outputs: Input for pulse, external stop.
Input for low-level and empty-tank signal. Installation set includes: 2 pump connections (Hose 9/12 mm 6).
Foot valve (without level switch).
Injection unit.
6 m PE discharge hose.
2 m PVC suction hose.
2 m PVC deaeration hose (4/6 mm).

EAN 5710622715460
Applications Dosing & Disinfection
Material Pricing Group 68
Density 62.29 lb/ft³
Maximum operating pressure 7 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V
Pumped liquid Water
Power input - P1 22 W
Pump outlet Hose 9/12 mm 6
Pump inlet Hose 9/12 mm 6
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Net weight 4.41 lb
Gross weight 6.62 lb
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Pulse control YES
Level control YES
Control panel FRONT-MOUNTED
Type of cable plug EU
Length of cable 1.5 m
Range of ambient temperature 32 .. 113 °F
Maximum power input - P1 22 W
Control variant A
Approvals CE
Type key DDC 9-7 A-PVC/V/C-F-31I002FG
Valve type Standard
Power 1 22 W
Max. Flow 9 l/h
Type 9/12 mm up to 60 l/h
Gasket FKM
Min flow 9.0 ml/h
Max. flow in slow mode 50% 4.5 l/h
Valve ball Ceramic
Inrush current 25A at 230V for 2ms
Max. flow in slow mode 25% 2.25 l/h
Turn-down ratio 0.7361111111111112
