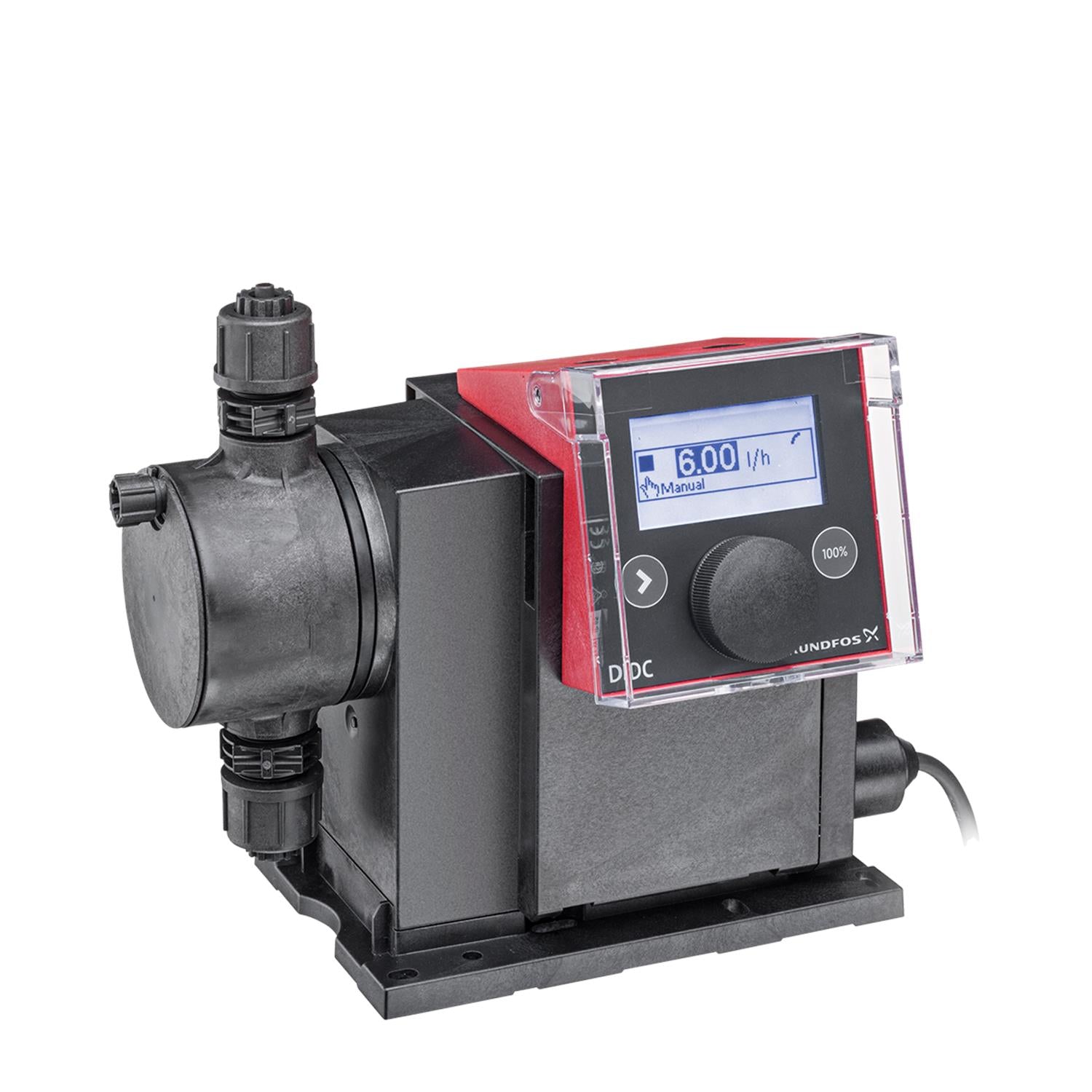

Grundfos 97721358 - DDC 6-10
Grundfos 97721358 - DDC 6-10
Grundfos 97721358 - DDC 6-10
Grundfos 97721358 - DDC 6-10

Grundfos 97721358 - DDC 6-10

GRUNDFOSSKU: 97721358
Price:
$2,783.33
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97721358 - DDC 6-10 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710622714999
Applications Dosing & Disinfection
Material Pricing Group 68
Finnish LVI No. 4981115
Density 62.29 lb/ft³
Maximum operating pressure 10 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V
Pumped liquid Water
Power input - P1 22 W
Pump outlet 4/6, 6/9, 6/12, 9/12 mm
Pump inlet 4/6, 6/9, 6/12, 9/12 mm
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Net weight 4.41 lb
Gross weight 6.62 lb
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Pulse control YES
Level control YES
Control panel FRONT-MOUNTED
Type of cable plug EU
Length of cable 1.5 m
Range of ambient temperature 32 .. 113 °F
Maximum power input - P1 22 W
Control variant AR
Approvals CE
Type key DDC 6-10 AR-PP/E/C-F-31U2U2FG
Valve type Standard
Power 1 22 W
Max. Flow 6 l/h
Type No installation set
Gasket EPDM
Min flow 6.0 ml/h
Max. flow in slow mode 50% 3 l/h
Valve ball Ceramic
Analog input 0/4-20 MA
Inrush current 25A at 230V for 2ms
Max. flow in slow mode 25% 1.5 l/h
Turn-down ratio 0.7361111111111112
