Grundfos 97721697 - DDC 15-4 | Dosing Pump | Digital | Compact

GRUNDFOSSKU: 97721697

Price:
Sale price$6,152.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

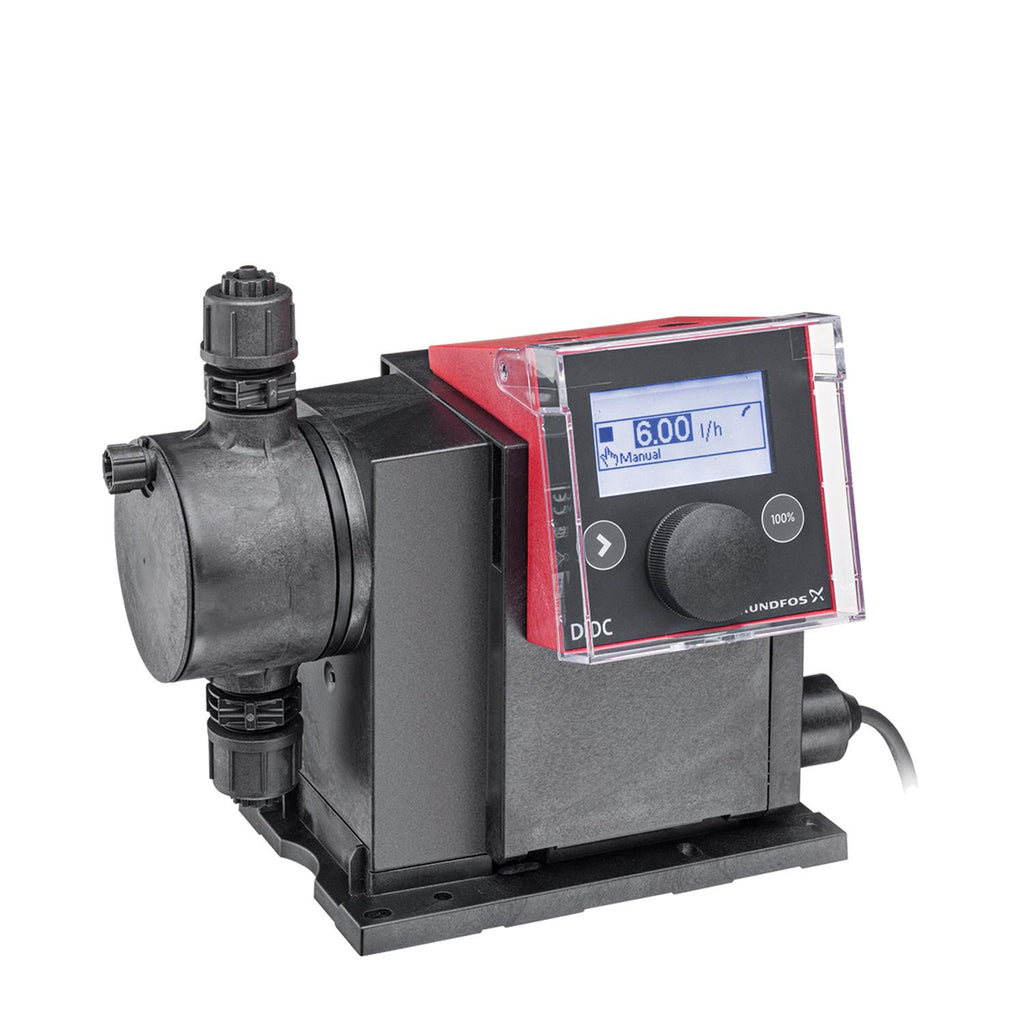

The Grundfos 97721697 DDC 15-4 is a compact digital dosing pump designed for precise chemical injection and metering in industrial and commercial systems. It suits technicians and facility managers needing reliable, space-saving control for dosing tasks.

Key features

  • Compact digital dosing pump manufactured by Grundfos for accurate chemical injection
  • Compatible with dosing pump controls and accessories for flexible system integration
  • Delivers reliable metering with straightforward setup and reduced maintenance downtime

Applications

Common uses include water treatment, chemical dosing, boiler and cooling tower treatment, and process metering where precise volume control is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97721697

EAN 5710622718409
Applications Dosing & Disinfection
Approvals CE
Control panel FRONT-MOUNTED
Control variant A
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Gasket PTFE
Gross weight 6.62 lb
Inrush current 25A at 230V for 2ms
Length of cable 1.5 m
Level control YES
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Material Pricing Group 61
Max. Flow 15 l/h
Max. flow in slow mode 25% 3.75 l/h
Max. flow in slow mode 50% 7.5 l/h
Maximum operating pressure 4 bar
Maximum power input - P1 22 W
Min flow 15.0 ml/h
Net weight 6.62 lb
Power 1 22 W
Power input - P1 22 W
Product family DDC
Pulse control YES
Pump inlet Threaded, NPT 1/4"
Pump outlet Threaded, NPT 1/4"
Pumped liquid Water
Range of ambient temperature 32 .. 113 °F
Rated voltage 1 x 100-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Turn-down ratio 0.7361111111111112
Type No installation set
Type key DDC 15-4 A-SS/T/SS-F-31VVBG
Type of cable plug USA
Valve ball Stainless steel
Valve type Standard

Motor Curves

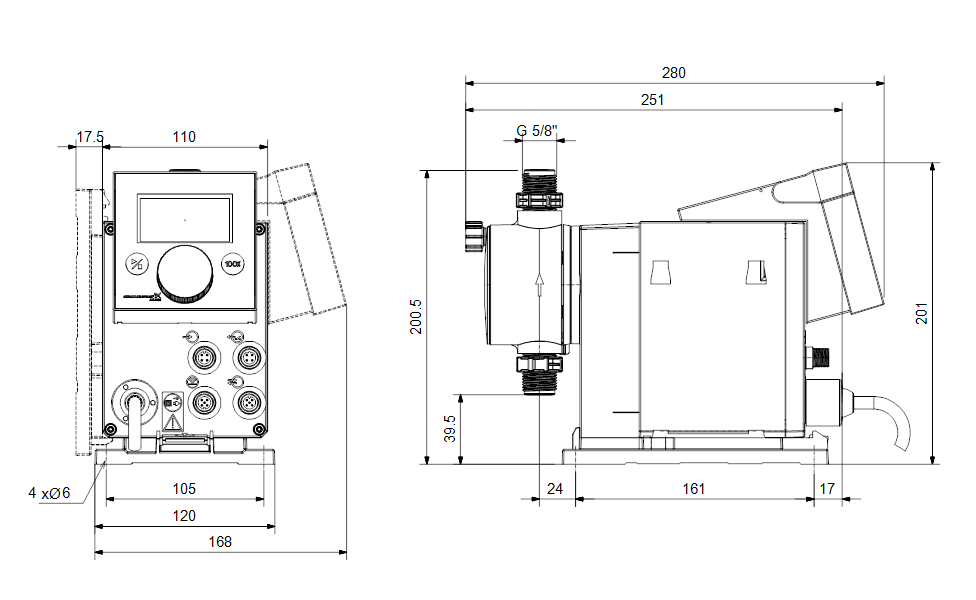

Dimensional Drawing
