Grundfos 97721690 - DDC 15-4 | Dosing Pump | Digital | Compact

GRUNDFOSSKU: 97721690

Price:
Sale price$4,130.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

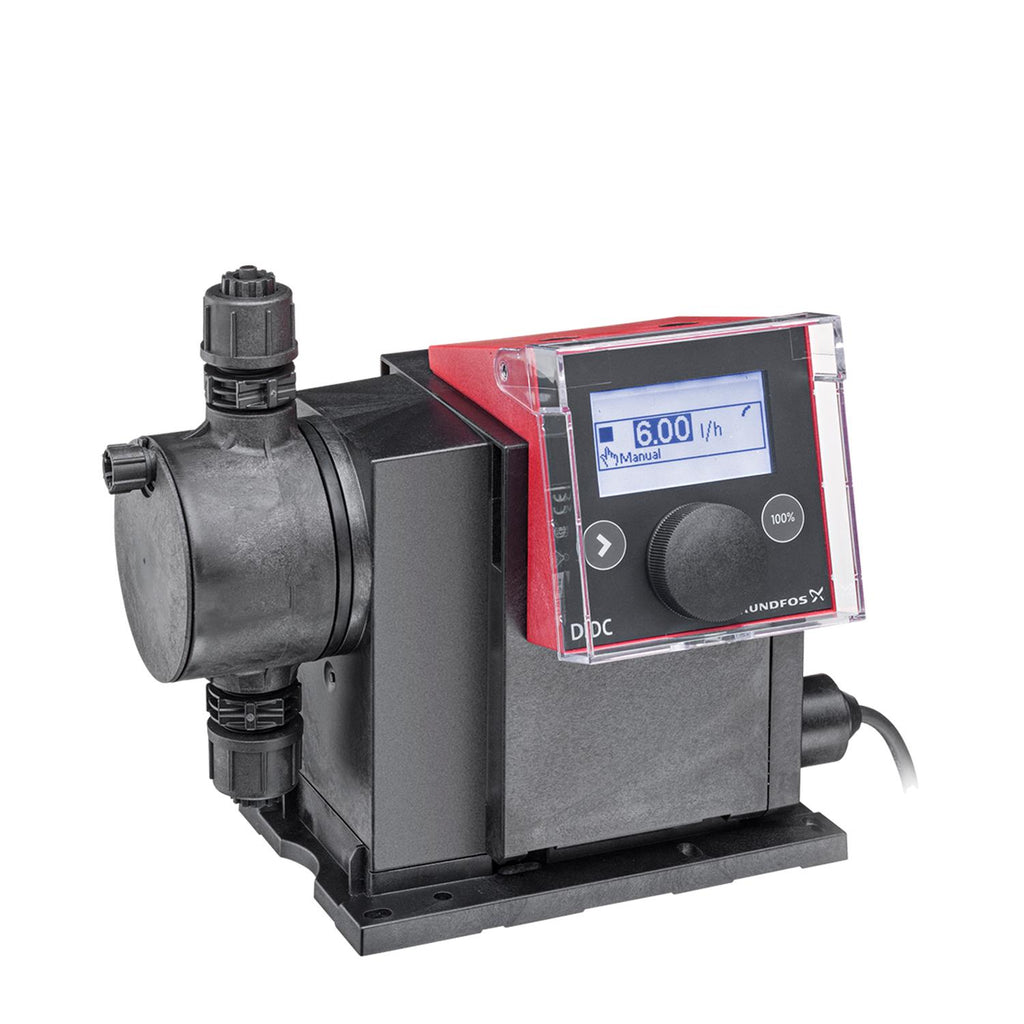

The Grundfos 97721690 DDC 15-4 is a compact digital dosing pump designed for injection and metering tasks in industrial and water treatment settings, suited for contractors and maintenance teams.

Key features

  • Digital dosing control for precise chemical feed and automated operation
  • Compact footprint ideal for tight installations and panel mounting
  • Reliable metering performance to help maintain consistent process levels

Applications

Typical uses include chemical dosing, metering for water and wastewater treatment, injection systems, and process control in industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97721690

EAN 5710622718331
Applications Dosing & Disinfection
Approvals CE
Control panel FRONT-MOUNTED
Control variant A
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Gasket FKM
Gross weight 6.62 lb
Inrush current 25A at 230V for 2ms
Length of cable 1.5 m
Level control YES
Liquid temperature range 14 .. 113 °F
Mains frequency 50 / 60 Hz
Material Pricing Group 61
Max. Flow 15 l/h
Max. flow in slow mode 25% 3.75 l/h
Max. flow in slow mode 50% 7.5 l/h
Maximum operating pressure 4 bar
Maximum power input - P1 22 W
Min flow 15.0 ml/h
Net weight 4.41 lb
Power 1 22 W
Power input - P1 22 W
Product family DDC
Pulse control YES
Pump inlet Hose 3/8x1/2" S
Pump outlet Hose 3/8x1/2" S
Pumped liquid Water
Range of ambient temperature 32 .. 113 °F
Rated voltage 1 x 100-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Turn-down ratio 0.7361111111111112
Type 3/8"x1/2" up to 60 l/h
Type key DDC 15-4 A-PV/V/C-F-31I004BG
Type of cable plug USA
Valve ball Ceramic
Valve type Standard

Motor Curves

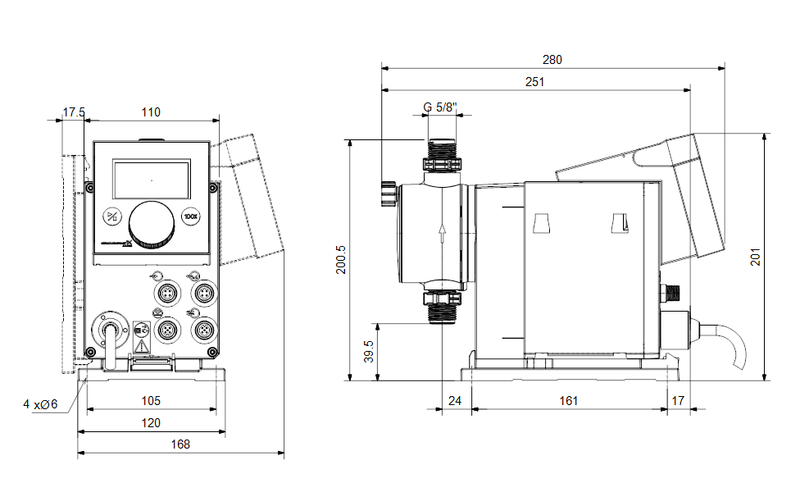

Dimensional Drawing
