Description

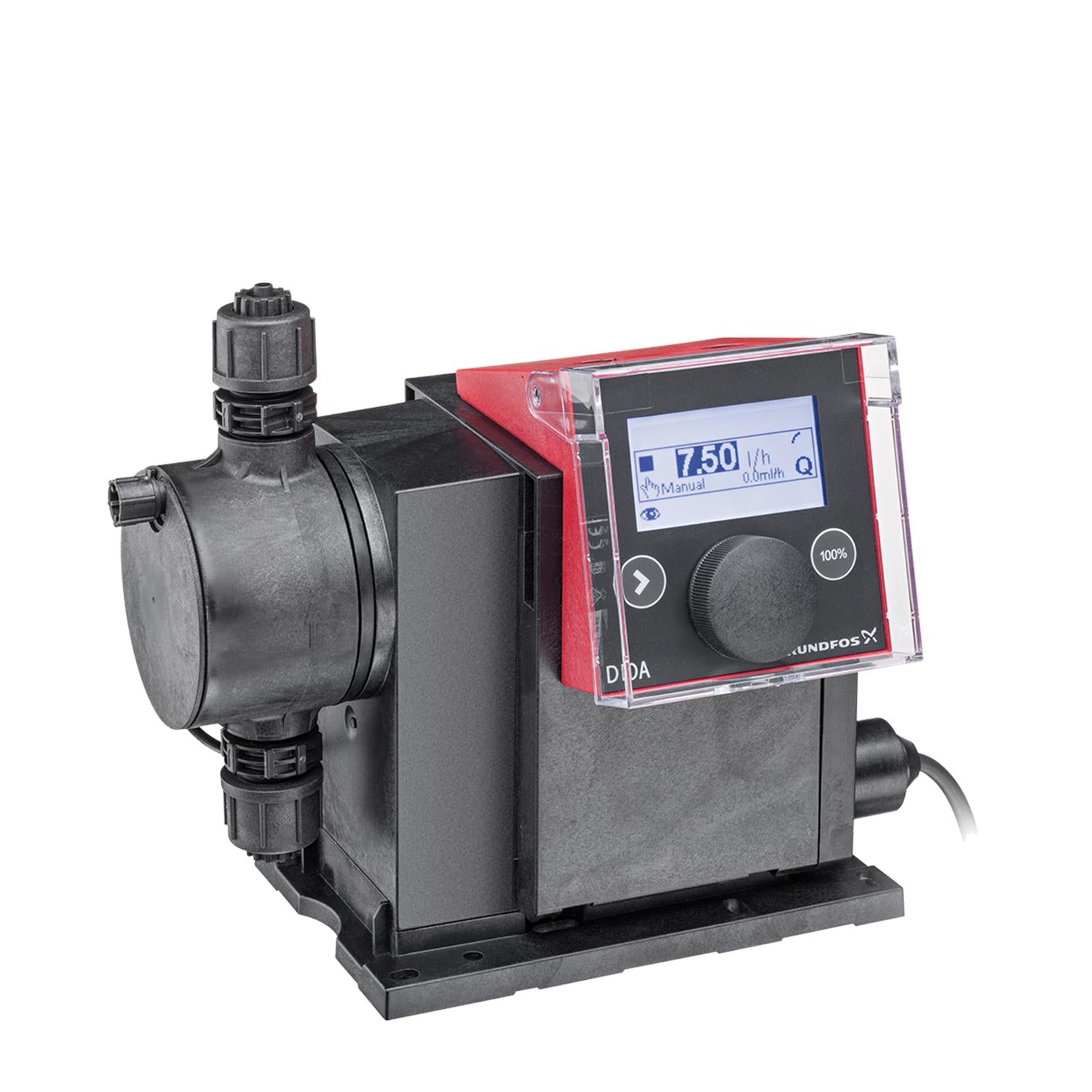

Grundfos 97722701 - DDA 30-4 FC-PP/E/C-F-32I004BG This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5710622728743
Applications
Dosing & Disinfection
Material Pricing Group
68
Density
62.29 lb/ft³
Maximum operating pressure
4 bar
Selected liquid temperature
68 °F
Rated voltage
1 x 100-240 V
Pumped liquid
Water
Power input - P1
24 W
Pump outlet
Hose 3/8x1/2" S
Pump inlet
Hose 3/8x1/2" S
Liquid temperature range
14 .. 113 °F
Mains frequency
50 / 60 Hz
Net weight
6.62 lb
Gross weight
6.62 lb
Enclosure class (IEC 34-5)
IP65 / NEMA 4X
Pulse control
YES
Level control
YES
Control panel
FRONT-MOUNTED
Type of cable plug
USA
Length of cable
1.5 m
Range of ambient temperature
32 .. 113 °F
Maximum power input - P1
24 W
Control variant
FC
Approvals
CE
Type key
DDA 30-4 FC-PP/E/C-F-32I004BG
Valve type
Spring-Loaded (HV-version)
Communication
YES
Power 1
24 W
Max. Flow
30 l/h
Type
3/8"x1/2" up to 60 l/h
Gasket
EPDM
Min flow
30.0 ml/h
Max. flow in slow mode 50%
15 l/h
Valve ball
Ceramic
Analog input
0/4-20 MA
Inrush current
25A at 230V for 2ms
Max. flow in slow mode 25%
7.5 l/h
Turn-down ratio
0.7361111111111112
