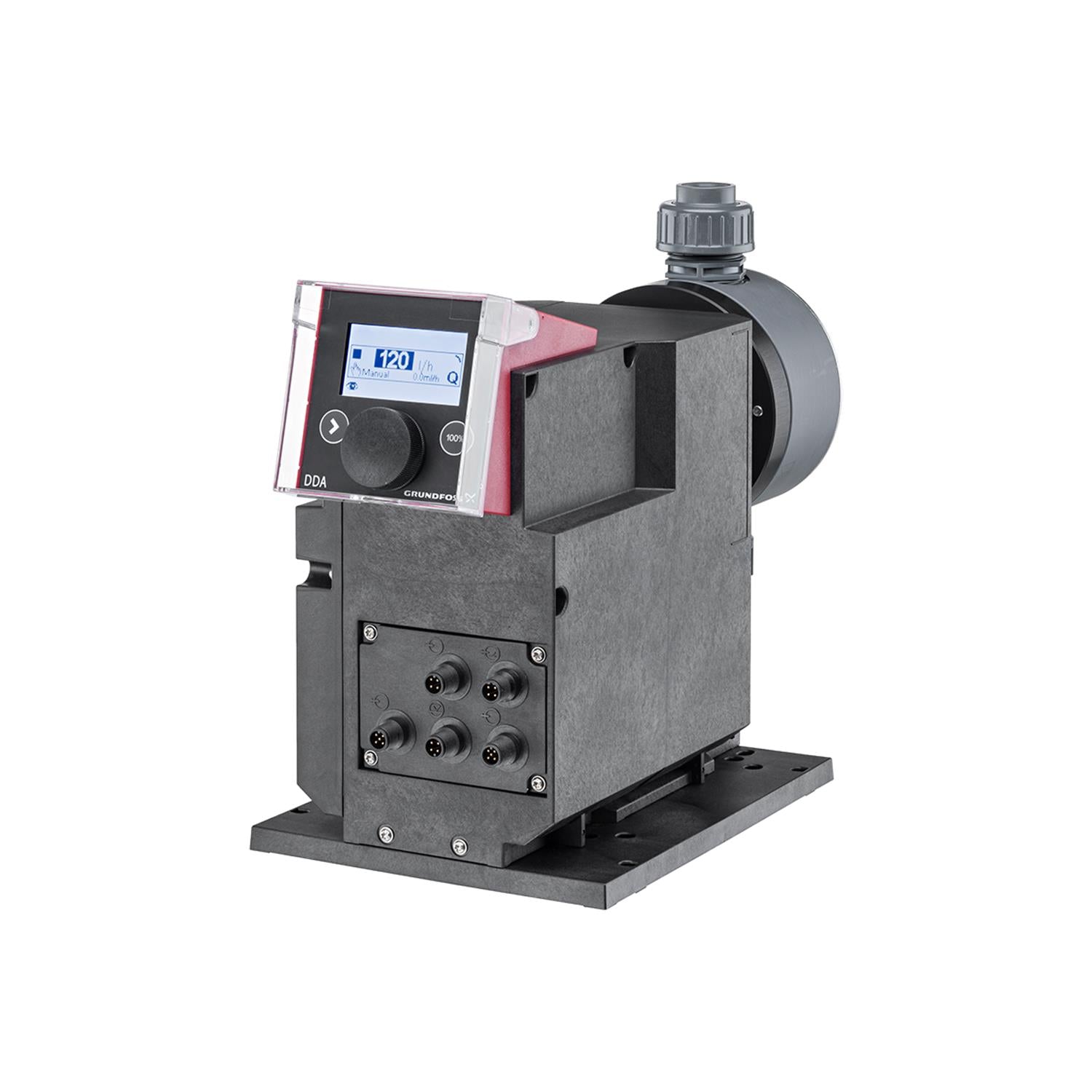

Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG
Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG
Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG
Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG

Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG

GRUNDFOSSKU: 99159399
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99159399 - DDA 200-4 AR-PVC/V/C-F-31U3U3FG This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5712607841874
Applications Dosing & Disinfection
Material Pricing Group 68
Density 62.29 lb/ft³
Maximum operating pressure 4 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V
Pumped liquid Water
Power input - P1 62 W
Pump outlet Conn.pack U3 (hose ID.19mm &..
Pump inlet Conn.pack U3 (hose ID.19mm &..
Liquid temperature range 32 .. 104 °F
Mains frequency 50 / 60 Hz
Net weight 15.4 lb
Gross weight 15.4 lb
Enclosure class (IEC 34-5) IP65 / NEMA 4X
Pulse control YES
Level control YES
Control panel FRONT-MOUNTED
Type of cable plug EU
Length of cable 1.5 m
Range of ambient temperature 32 .. 113 °F
Maximum power input - P1 62 W
Control variant AR
Approvals CE
Type key DDA 200-4 AR-PVC/V/C-F-31U3U3F
Valve type Standard
Communication YES
Power 1 62 W
Max. Flow 200 l/h
Type No installation set
Gasket FKM
Min flow 250 ml/h
Max. flow in slow mode 50% 100 l/h
Valve ball Ceramic
Analog input 0/4-20 MA
Inrush current 70A at 240V (35A/100V) for 2ms
Max. flow in slow mode 25% 50 l/h
Turn-down ratio 0.5972222222222222

Motor Curves

Dimensional Drawing

×
