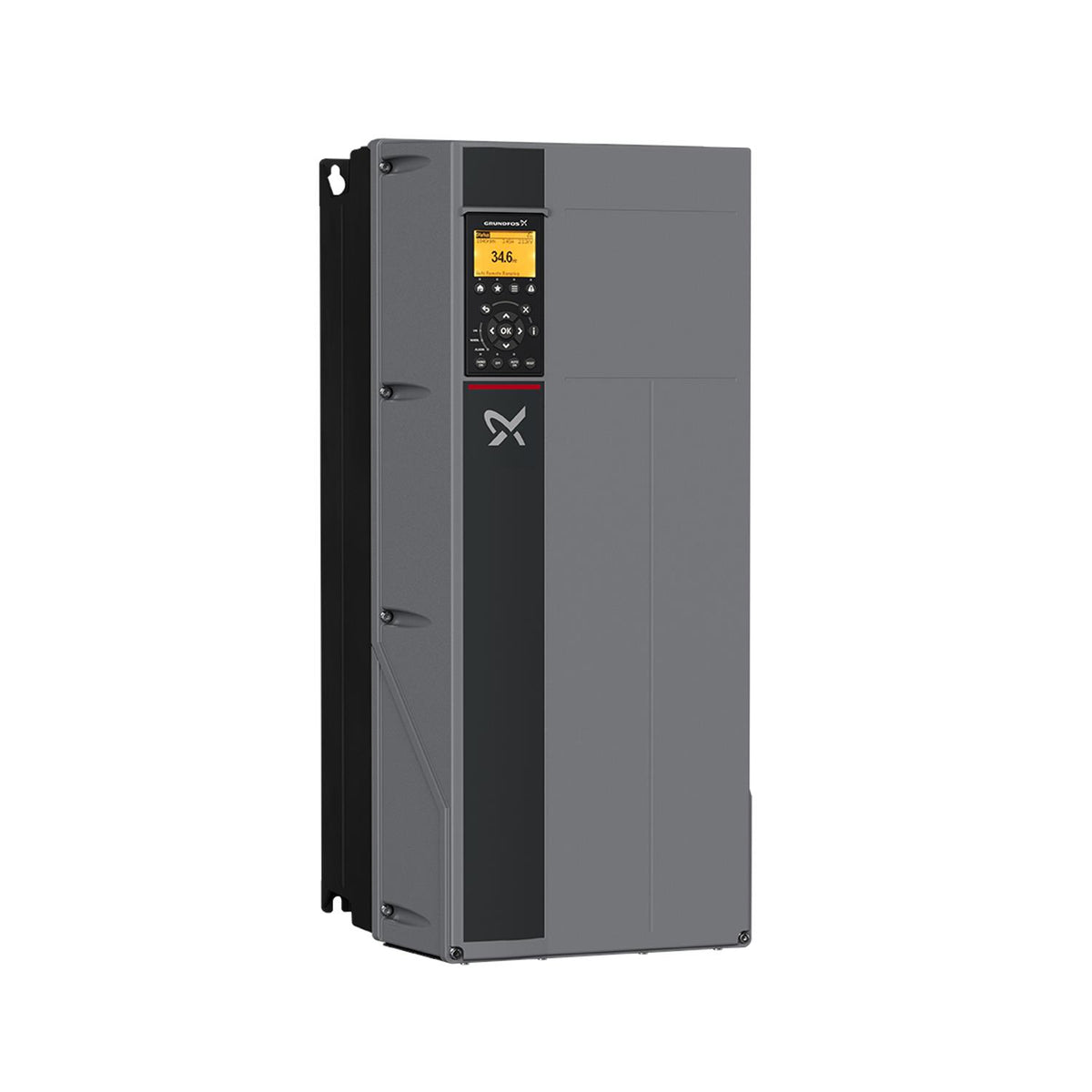

Name: Grundfos 99616814 - CUE 3X380-500V IP55 55KW DC | Pump Controller | Frequency Converter | Wall Mounted
Brand: Grundfos
SKU: 99616814
Price: 17698.0 USD
Availability: InStock

Image shown may not be actual product

Grundfos 99616814 - CUE 3X380-500V IP55 55KW DC | Pump Controller | Frequency Converter | Wall Mounted

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CUE 3X380-500V IP55 55KW DC · Grundfos Accessory / Spare Part / Control

ACC75HP380-440/441-500V3.0-Phase50, 60 HzIP55

The Grundfos 99616814 (CUE 3X380-500V IP55 55KW DC) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 380-440/441-500V, 3.0-Phase, 50, 60 Hz. Applications include Wash and clean, Industrial heating, Cooling and more.

Power

75HP

Voltage

380-440/441-500V

Phase

3.0-Phase

Frequency

50, 60 Hz

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

Built and tested to IEC and NEMA standards

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — CUE 3X380-500V IP55 55KW DC

Series: ACC

Model Code: CUE 3X380-500V IP55 55KW DC

Technical Specifications

Model Number	99616814
Product Series	ACC
Series Description	Grundfos Accessory / Spare Part / Control
Power	75HP
Voltage	380-440/441-500V
Phase	3.0-Phase
Frequency	50, 60 Hz
Full Load Current	106-105A
Motor Protection	YES
Protection Class (IP)	IP55
Max Ambient Temperature	122°F
Min Ambient Temperature	32°F
Approvals / Certifications	CE, CULUS, C-TICK

Applications

Wash and clean

Industrial heating

Cooling

Industrial water supply & transfer

Industrial wastewater treatment & reuse

Municipal surface water

Drinking water treatment

Municipal water transportation

Municipal wastewater transport

Municipal wastewater treatment

Rotor & spray irrigation

Ground water transfer

Livestock & Wildlife Watering

Water Treatment Fertigation

Chemigation & Dosing

Pivot & Lateral Irrigation

Frost protection

Solar boosting and water supply solutions

Controls and digital groundwater management

Solar controls and digital water management

Municipal solar solutions

Agriculture solar solutions

Livestock watering with solar solutions

Community solar solutions

Important Notices

Electrical	Verify supply voltage, phase, and frequency match nameplate before installation: 380-440/441-500V, 3.0-Phase, 50, 60 Hz.
Temperature limits	Do not exceed max fluid temperature per nameplate or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running	Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — ACC Series

✓ Product Data Sheet — CUE 3X380-500V IP55 55KW DC

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.

Grundfos 99616814 - CUE 3X380-500V IP55 55KW DC | Pump Controller | Frequency Converter | Wall Mounted

Description

Genuine Grundfos Part

Full Traceability

Authorized Source

Confirm Compatibility

Technical Support Available

Contact for Availability

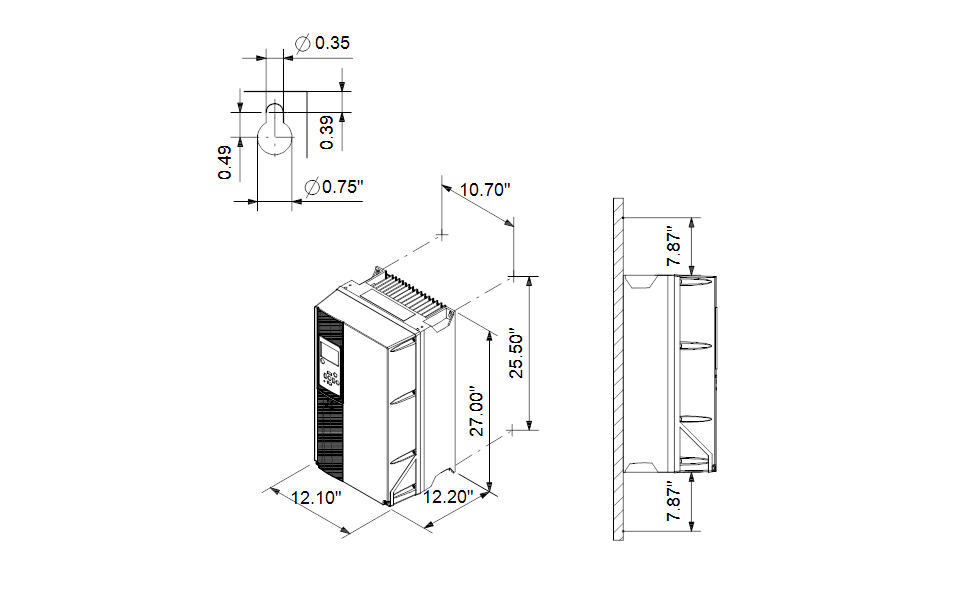

Dimensional Drawing

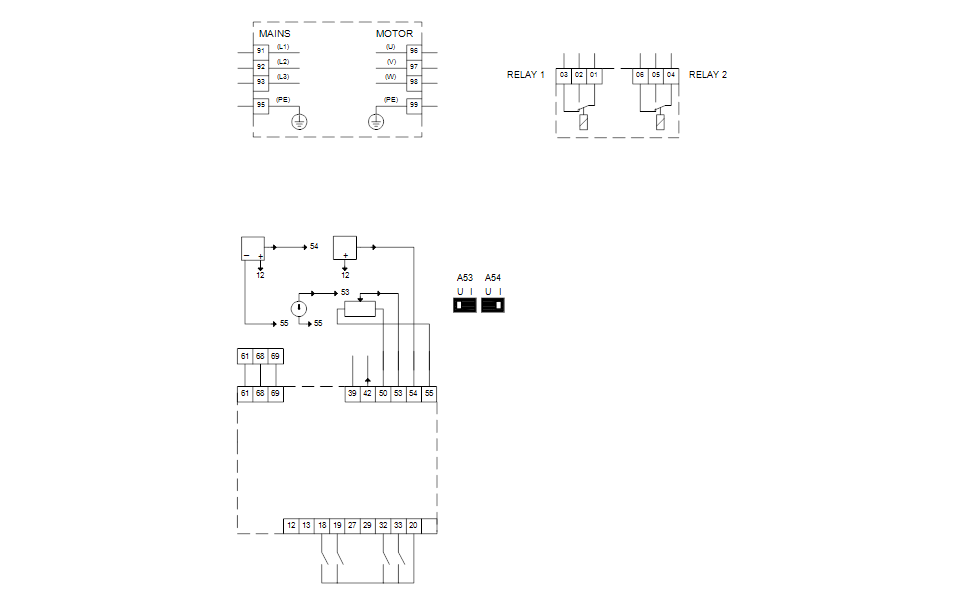

DWiring Diagram
