Grundfos 99616805 - CUE 3X380-500V IP55 5,5KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $1,815.75
GRUNDFOSSKU: 99616805

Price:
Sale price$2,219.25 Regular price$4,035.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99616805 - CUE 3X380-500V IP55 5.5KW DC is a high-performance pump controller designed for various industrial applications. Manufactured by the renowned brand Grundfos, this frequency converter ensures efficient operation and reliable performance in demanding environments.

With an IP55 rating, the CUE controller is built to withstand dust and water exposure, making it suitable for a wide range of settings. The 5.5KW power output and compatibility with 3-phase 380-500V systems make it an ideal choice for optimizing pump performance and energy efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this product to ensure compatibility.

Explore our selection of Grundfos motors and drives, and discover the quality and reliability that comes with the CUE series. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 31.3 lb
I MAX 13A
IP Class IP55
Length 150/300 m
Maximum current consumption 13 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 30.9 lb
P2 kW 7.5 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 13-11 A
Rated power - P2 7.5 HP
Rated voltage 3 x 380-440/441-500 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

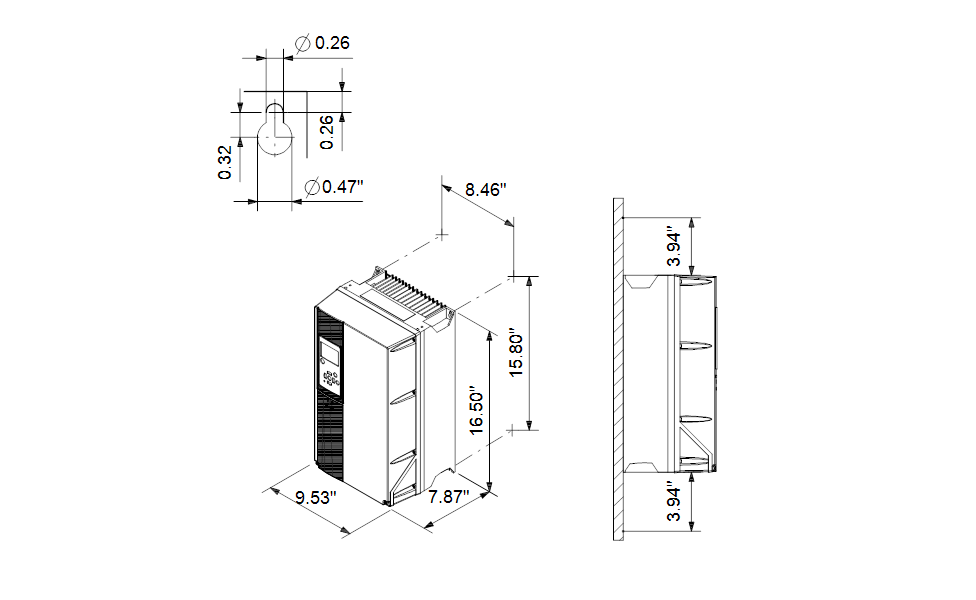

Dimensional Drawing

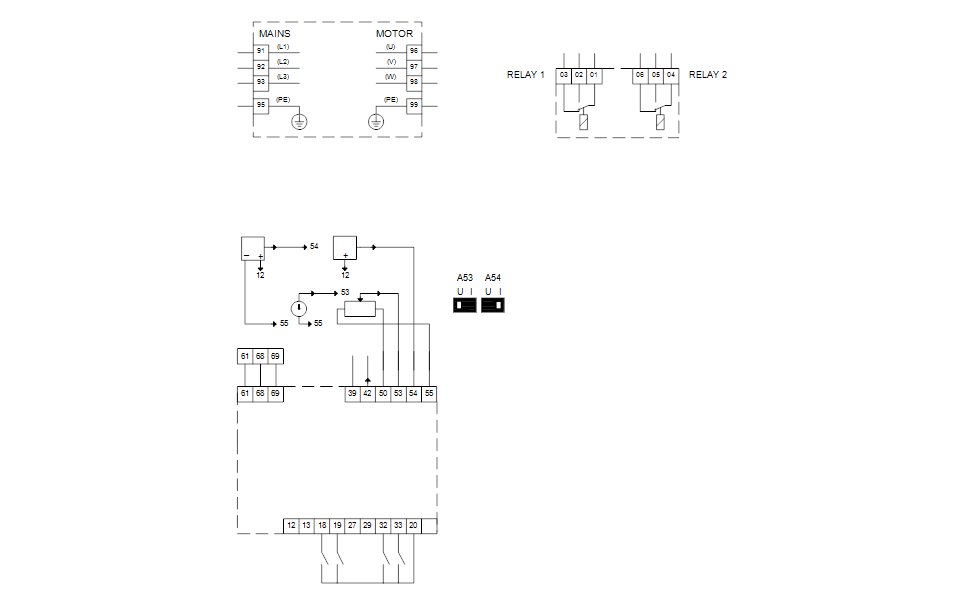

DWiring Diagram
