Grundfos 99616812 - CUE 3X380-500V IP55 37KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $5,024.70
GRUNDFOSSKU: 99616812

Price:
Sale price$6,141.30 Regular price$11,166.00
Typically In Stock – standard inventory item,typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

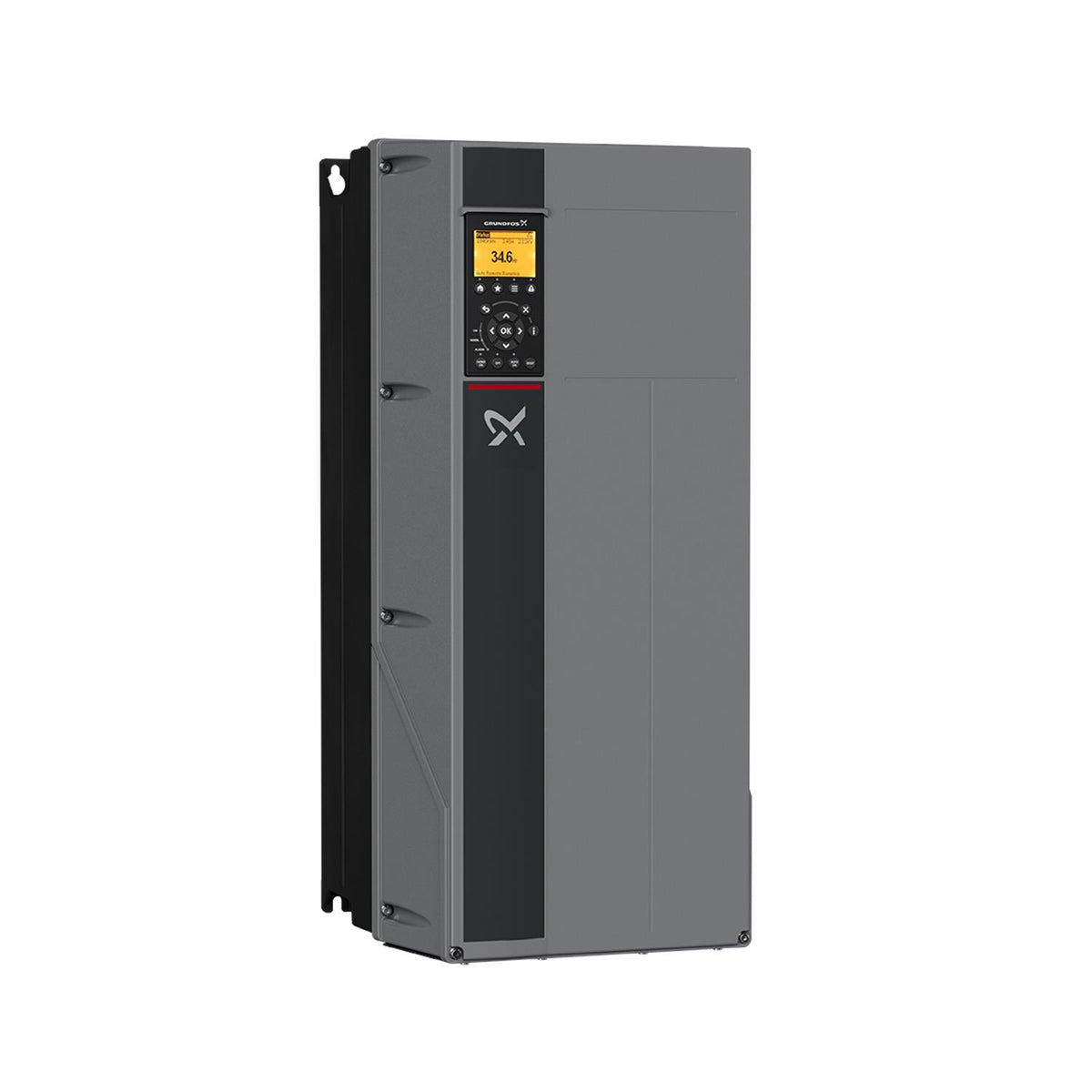

Grundfos 99616812 - CUE 3X380-500V IP55 37KW DC Pump Controller

The Grundfos 99616812 - CUE 3X380-500V IP55 37KW DC is a high-performance pump controller designed for various industrial applications. This wall-mounted frequency converter ensures optimal control and efficiency for your pumping systems, making it an essential component for any industrial setup.

With an IP55 rating, this controller is built to withstand challenging environments, providing reliable operation even in harsh conditions. The 37KW power capacity allows it to handle demanding tasks with ease, ensuring your pumps operate at peak performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 99.7 lb
I MAX 73A
IP Class IP55
Length 150/300 m
Maximum current consumption 73 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 99.2 lb
P2 kW 50 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 73-65 A
Rated power - P2 50 HP
Rated voltage 3 x 380-440/441-500 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

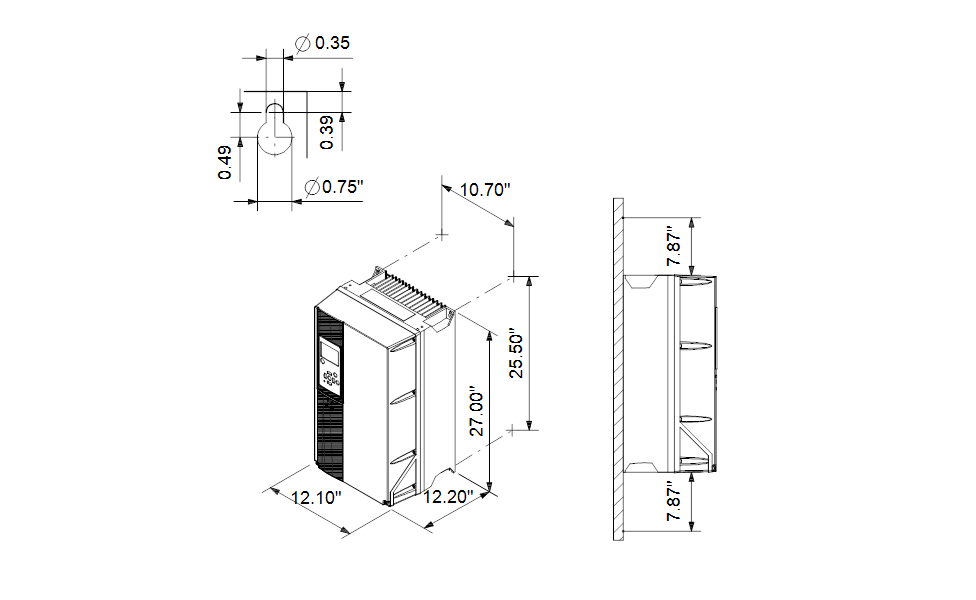

Dimensional Drawing

DWiring Diagram
