Grundfos 99616810 - CUE 3X380-500V IP55 22KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $3,291.75
GRUNDFOSSKU: 99616810

Price:
Sale price$4,023.25 Regular price$7,315.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

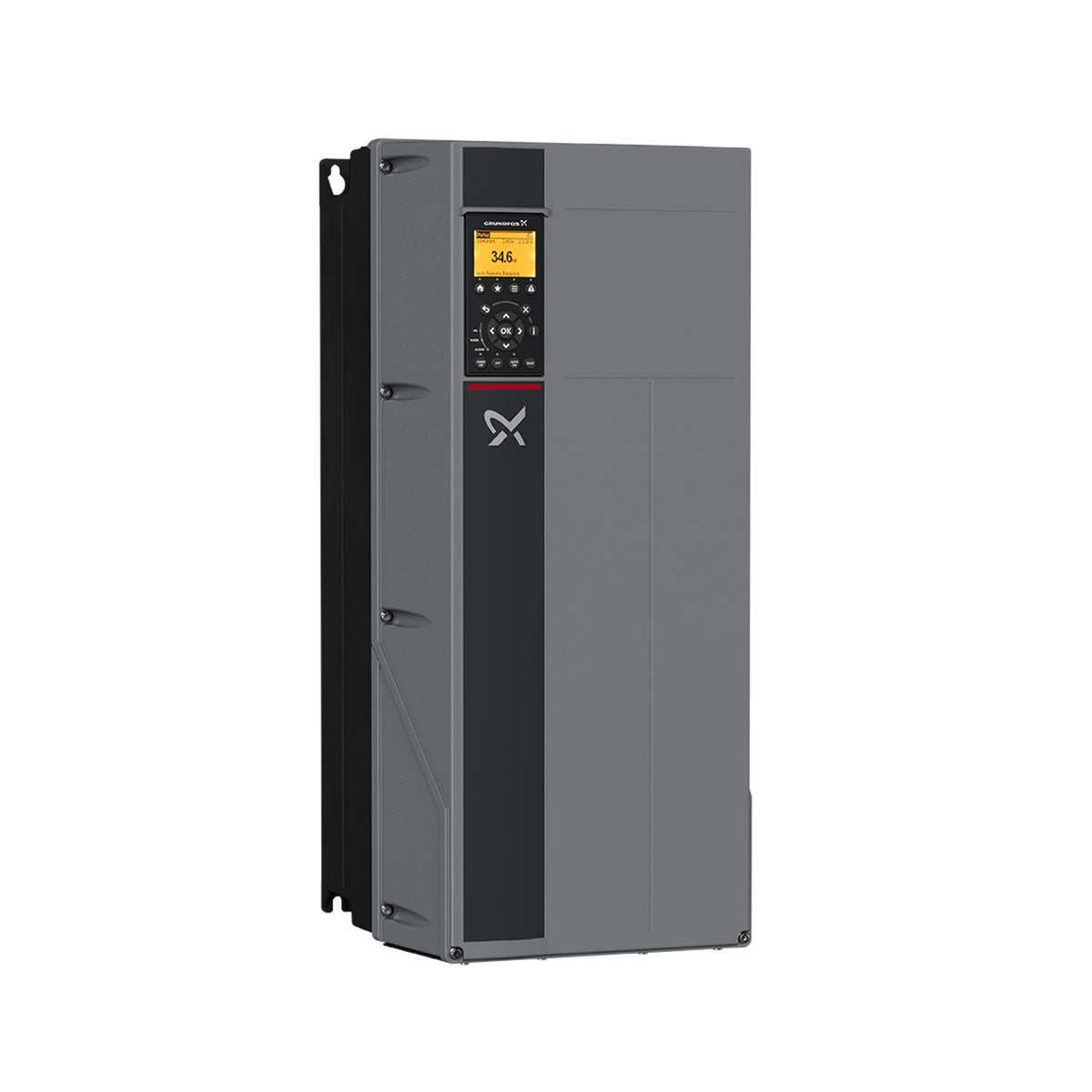

Grundfos 99616810 - CUE 3X380-500V IP55 22KW DC Pump Controller

The Grundfos 99616810 - CUE 3X380-500V IP55 22KW DC is a high-performance pump controller designed for various industrial applications. This frequency converter is wall-mounted and offers reliable operation in demanding environments, ensuring optimal performance for your pumping systems.

With an IP55 rating, this controller is built to withstand dust and water exposure, making it suitable for a wide range of applications. The 22KW power capacity allows for efficient control of Grundfos motors, enhancing the overall efficiency of your pumping operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 51.2 lb
I MAX 44A
IP Class IP55
Length 150/300 m
Maximum current consumption 44 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 50.7 lb
P2 kW 30 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 44-40 A
Rated power - P2 30 HP
Rated voltage 3 x 380-440/441-500 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

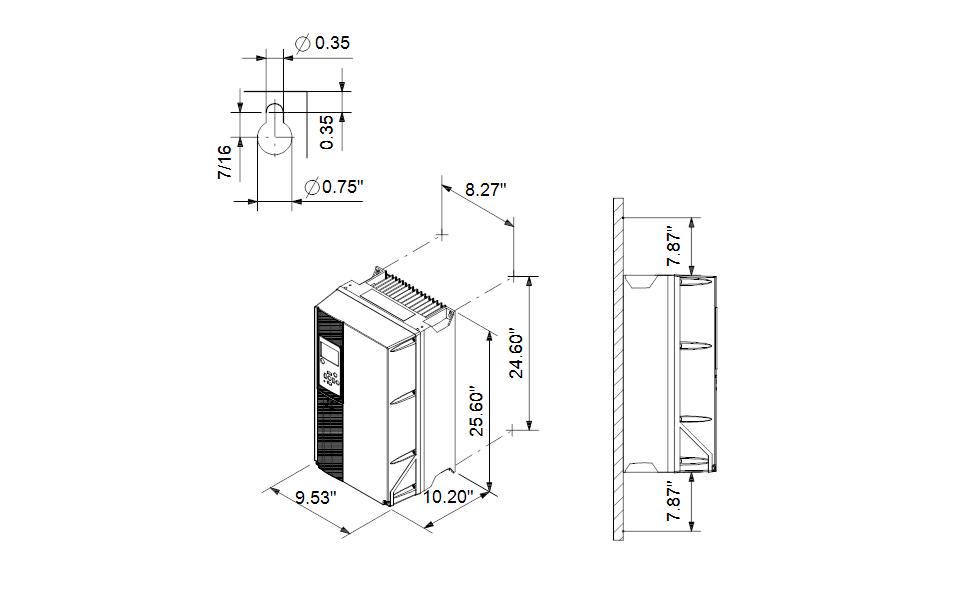

Dimensional Drawing

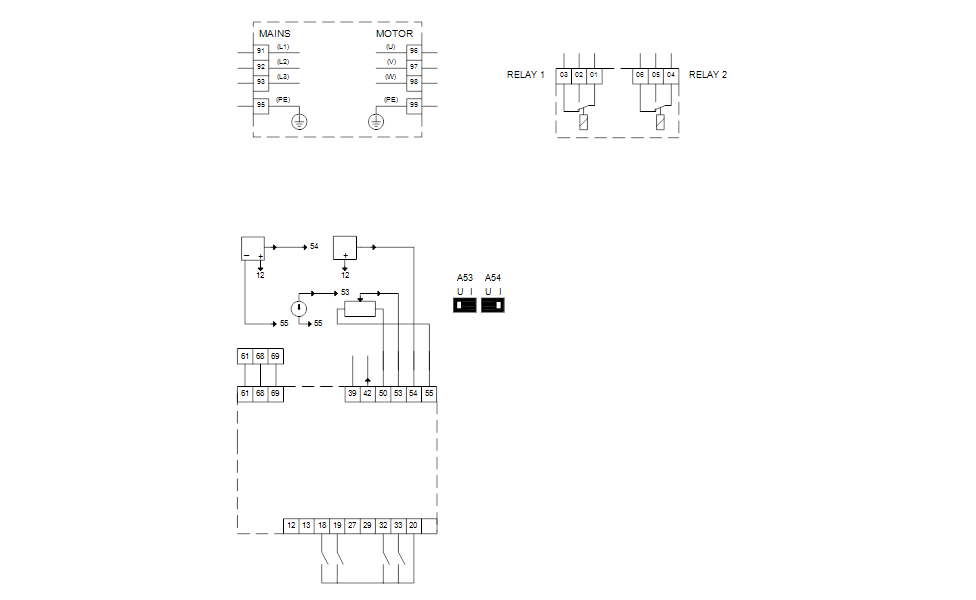

DWiring Diagram
