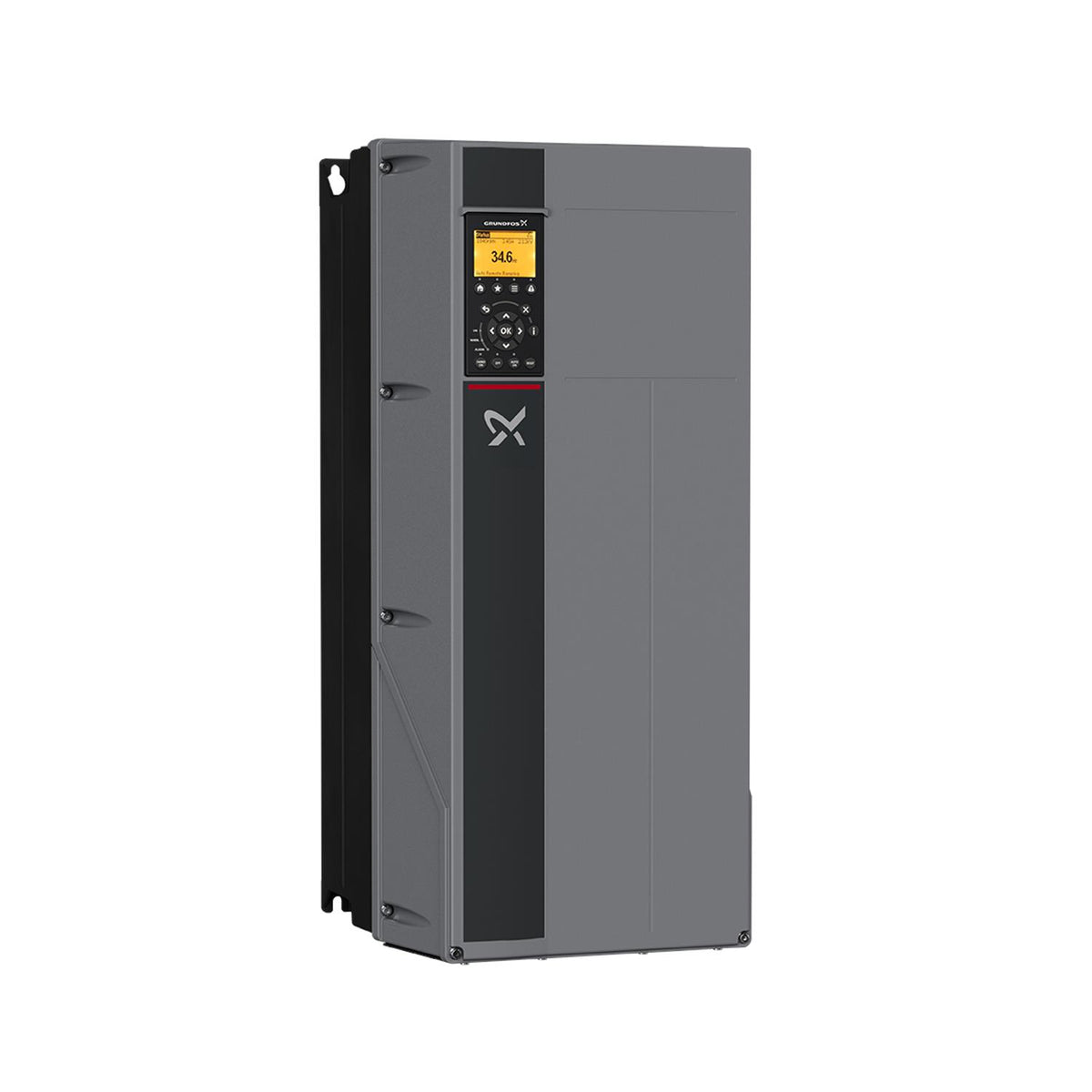

Grundfos 99616807 - CUE 3X380-500V IP55 11KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $2,337.75
GRUNDFOSSKU: 99616807

Price:
Sale price$2,857.25 Regular price$5,195.00
Typically In Stock – standard inventory item,typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99616807 - CUE 3X380-500V IP55 11KW DC is a high-performance pump controller designed for various industrial applications. Manufactured by the renowned brand Grundfos, this frequency converter ensures efficient operation and reliable performance in demanding environments.

With an IP55 rating, the CUE controller is built to withstand dust and water exposure, making it suitable for a wide range of settings. The 11KW power capacity allows for robust control of pumps, enhancing their efficiency and longevity.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call our team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99616807. If you encounter any difficulties, our knowledgeable staff is here to help you find the perfect solution.

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 51.2 lb
I MAX 24A
IP Class IP55
Length 150/300 m
Maximum current consumption 24 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 50.7 lb
P2 kW 15 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 24-21 A
Rated power - P2 15 HP
Rated voltage 3 x 380-440/441-500 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

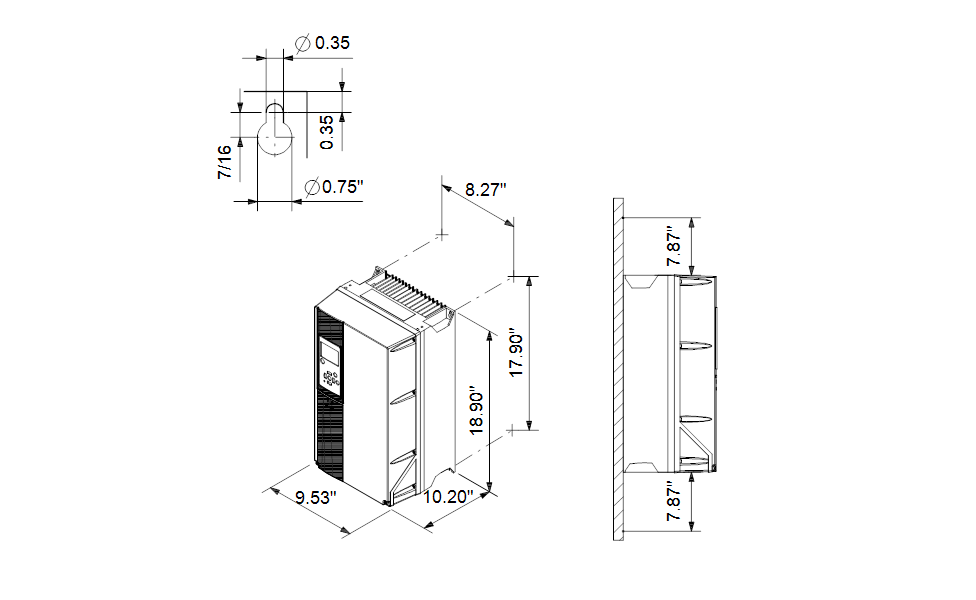

Dimensional Drawing

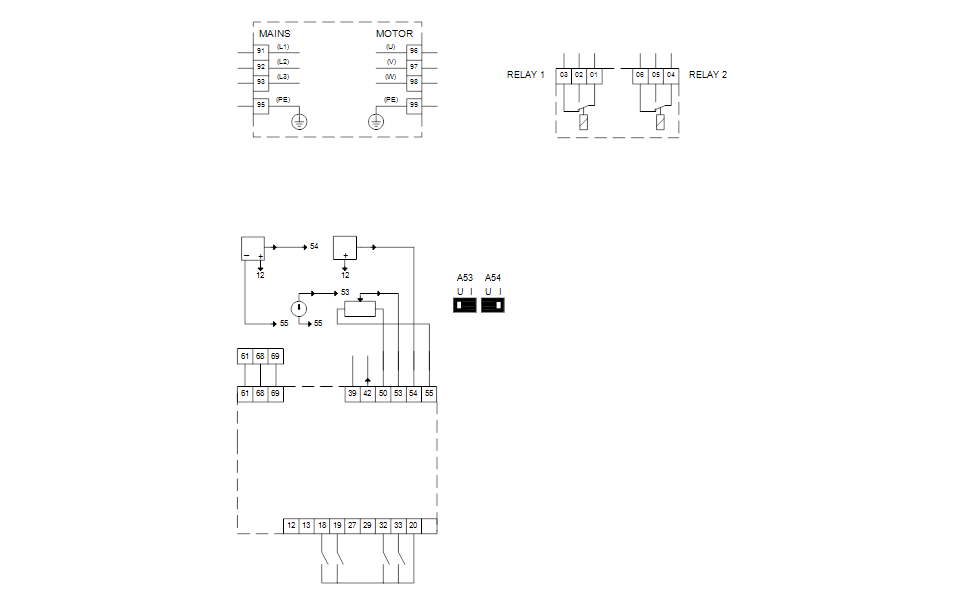

DWiring Diagram
