Grundfos 99616698 - CUE 3X200-240V IP55 5,5KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $2,064.60
GRUNDFOSSKU: 99616698

Price:
Sale price$2,523.40 Regular price$4,588.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

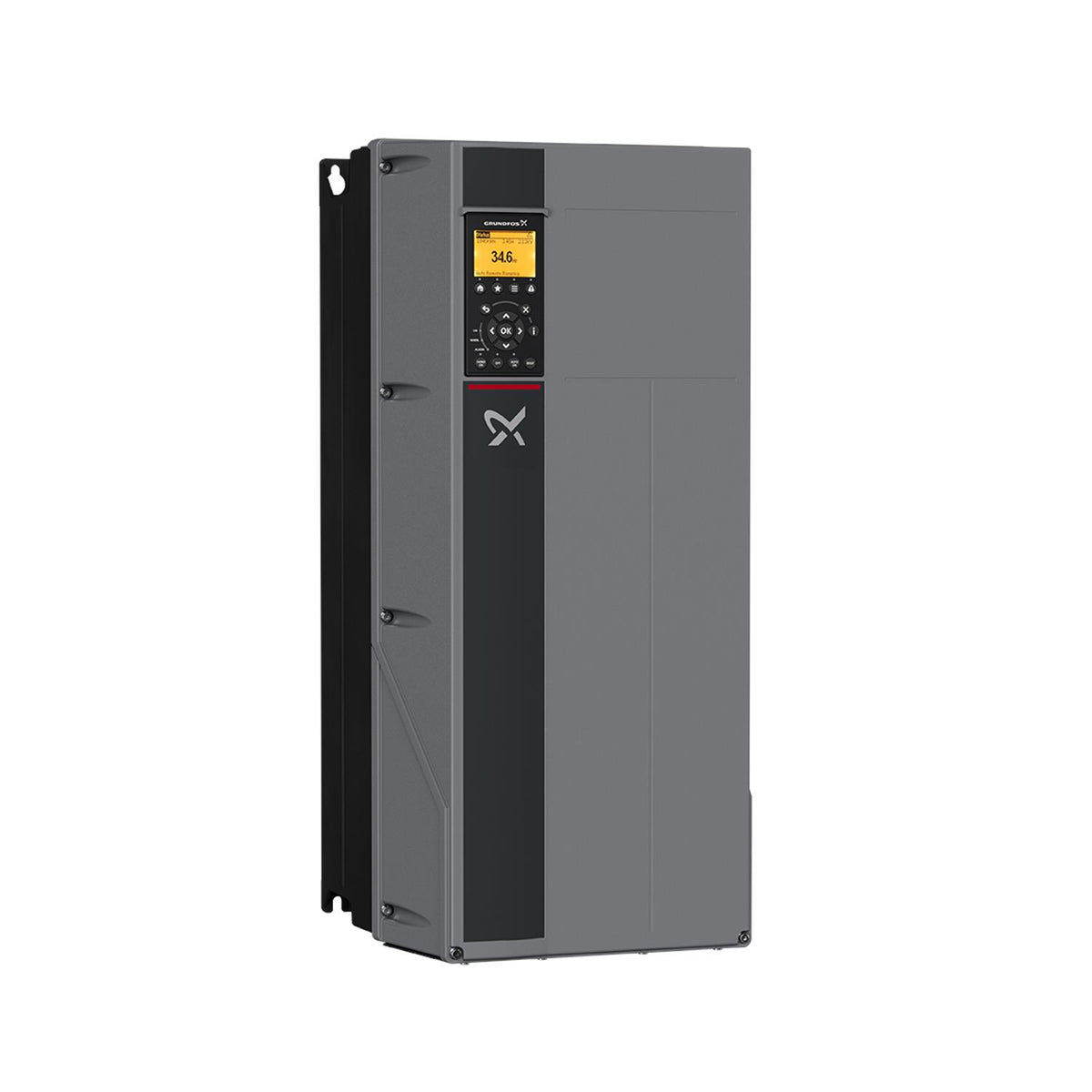

Grundfos 99616698 - CUE 3X200-240V IP55 5.5KW DC Pump Controller

The Grundfos 99616698 - CUE 3X200-240V IP55 5.5KW DC is a high-performance pump controller designed for various industrial applications. Manufactured by Grundfos, this frequency converter ensures efficient operation and reliable performance in demanding environments.

With an IP55 rating, the CUE controller is built to withstand dust and water exposure, making it suitable for both indoor and outdoor installations. Its robust design and advanced technology make it an ideal choice for optimizing pump performance and energy efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 51.2 lb
I MAX 24.2A
IP Class IP55
Length 150/300 m
Maximum current consumption 24.2 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 50.7 lb
P2 kW 7.5 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 24.2 A
Rated power - P2 7.5 HP
Rated voltage 3 x 200-240 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

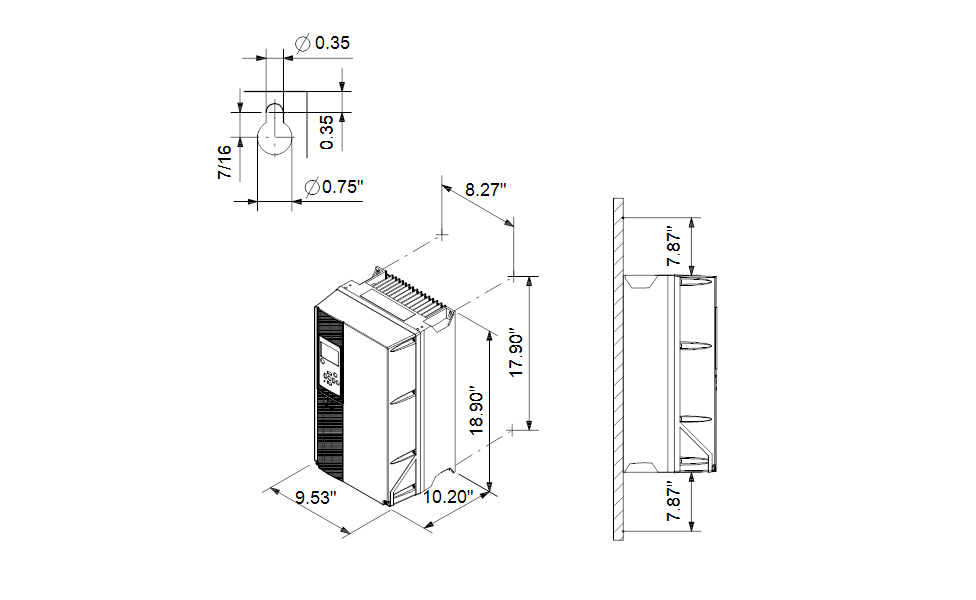

Dimensional Drawing

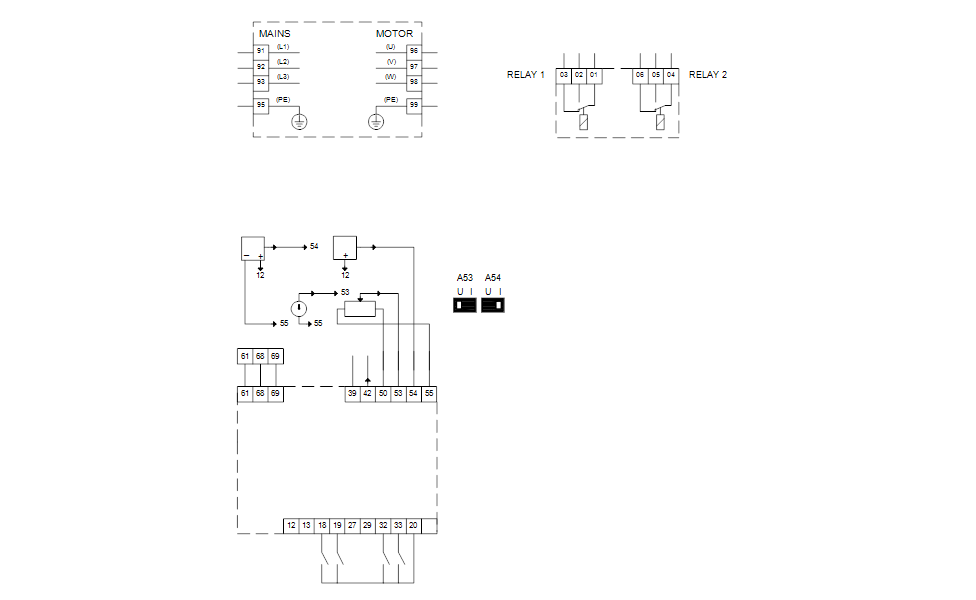

DWiring Diagram
