Grundfos 99616704 - CUE 3X200-240V IP55 30KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $5,161.95
GRUNDFOSSKU: 99616704

Price:
Sale price$6,309.05 Regular price$11,471.00
Typically In Stock – standard inventory item, typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

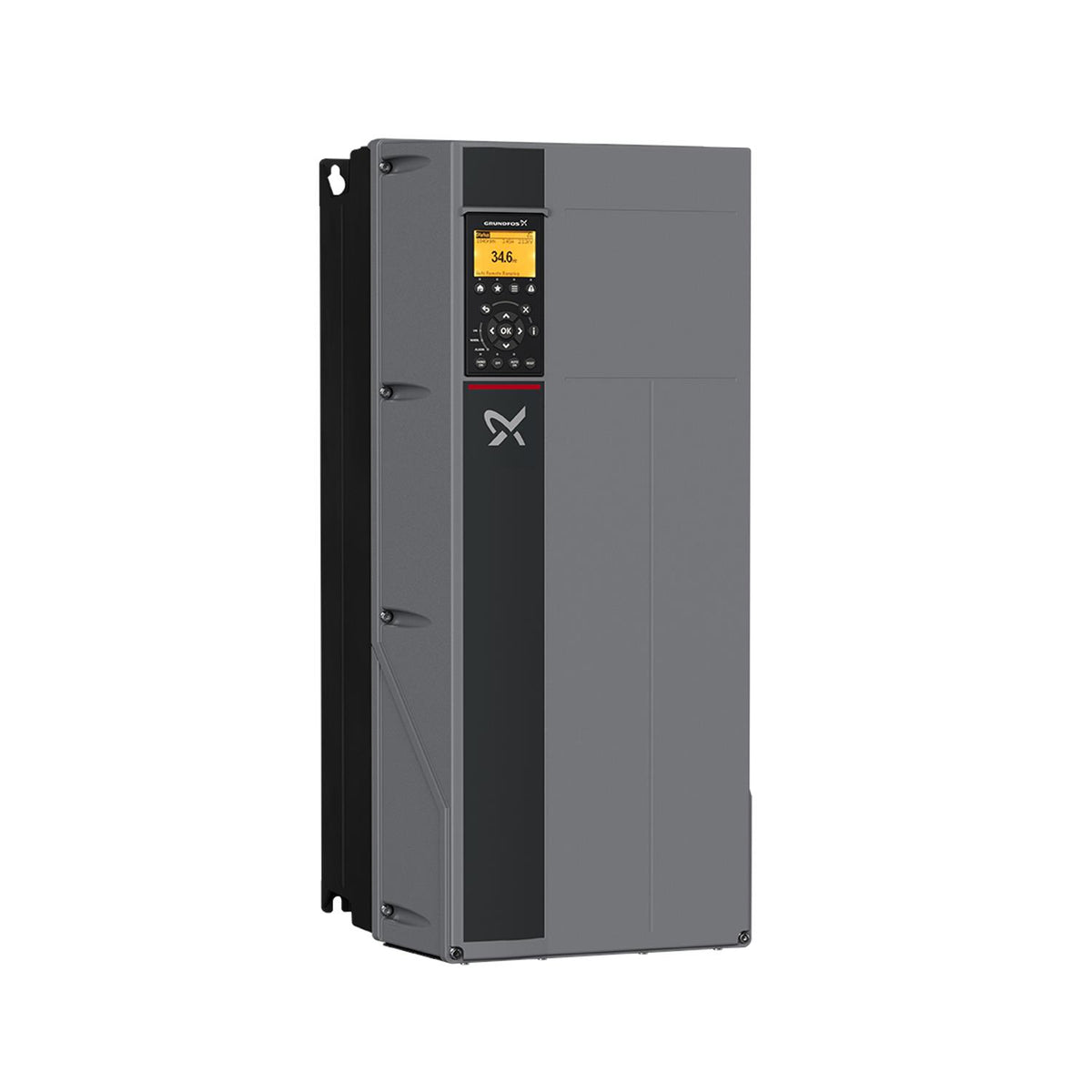

Grundfos 99616704 - CUE 3X200-240V IP55 30KW DC Pump Controller

The Grundfos 99616704 - CUE 3X200-240V IP55 30KW DC is a high-performance pump controller designed for various industrial applications. Manufactured by Grundfos, this frequency converter ensures efficient operation and reliable performance in demanding environments.

With an IP55 rating, this wall-mounted controller is built to withstand dust and water exposure, making it ideal for both indoor and outdoor installations. The 30KW power capacity allows for robust control of your pump systems, enhancing operational efficiency and reducing energy consumption.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 137.0 lb
I MAX 115A
IP Class IP55
Length 150/300 m
Maximum current consumption 115 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 136.0 lb
P2 kW 40 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 115 A
Rated power - P2 40 HP
Rated voltage 3 x 200-240 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

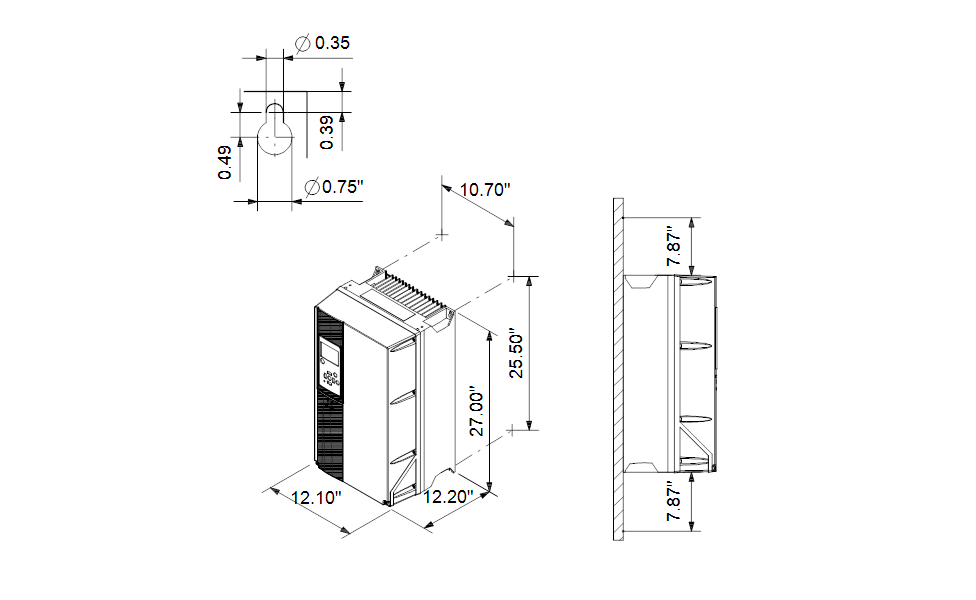

Dimensional Drawing

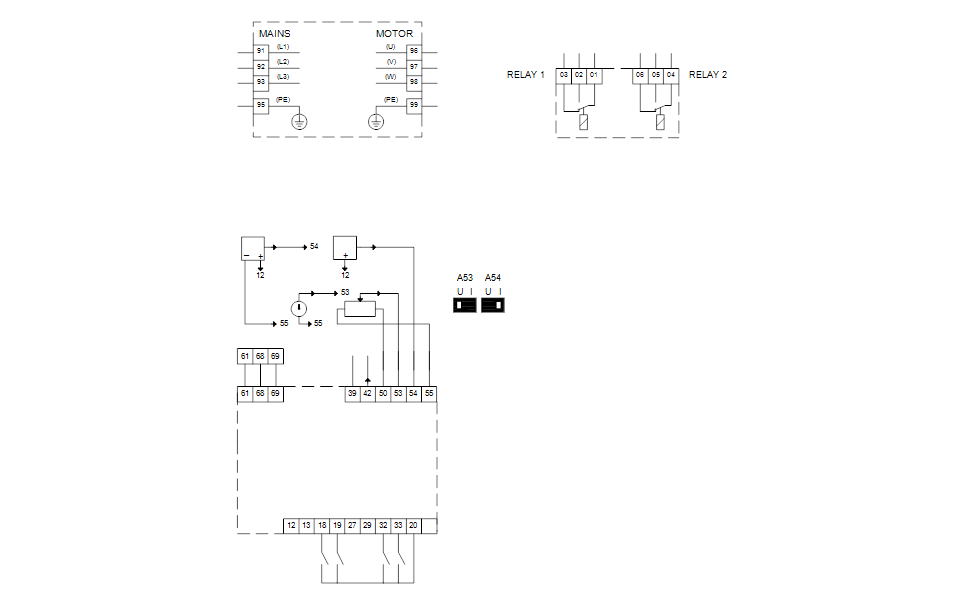

DWiring Diagram
