Grundfos 99616702 - CUE 3X200-240V IP55 18,5KW DC | Pump Controller | Frequency Converter | Wall Mounted

Save $3,703.05
GRUNDFOSSKU: 99616702

Price:
Sale price$4,525.95 Regular price$8,229.00
Typically In Stock – standard inventory item,typically available in 1 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99616702 - CUE 3X200-240V IP55 18.5KW DC is a high-performance pump controller designed for various industrial applications. Manufactured by Grundfos, this frequency converter ensures efficient operation and reliable performance in demanding environments.

With an IP55 rating, the CUE controller is built to withstand dust and water exposure, making it suitable for both indoor and outdoor installations. The 18.5KW power capacity allows for effective control of pumps, enhancing their efficiency and longevity.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

Explore our range of Grundfos products, including the CUE series, and experience the quality and reliability that comes with the Grundfos name.

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP55
Frequency 50 / 60 Hz
Gross weight 99.7 lb
I MAX 74.8A
IP Class IP55
Length 150/300 m
Maximum current consumption 74.8 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 99.2 lb
P2 kW 25 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 74.8 A
Rated power - P2 25 HP
Rated voltage 3 x 200-240 V
Relative humidity 5-95 %
Sales region Namreg
Thermal protec external

Motor Curves

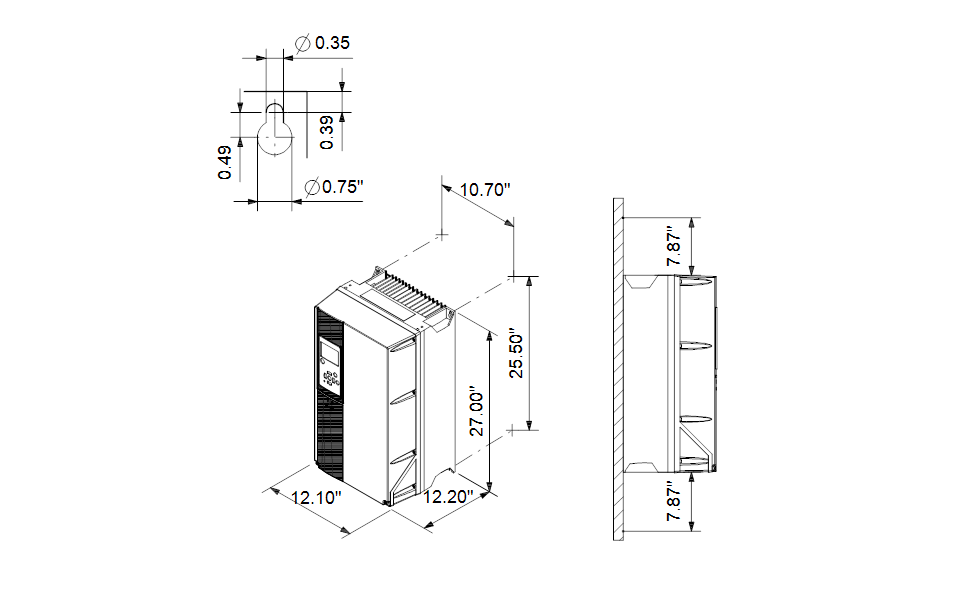

Dimensional Drawing

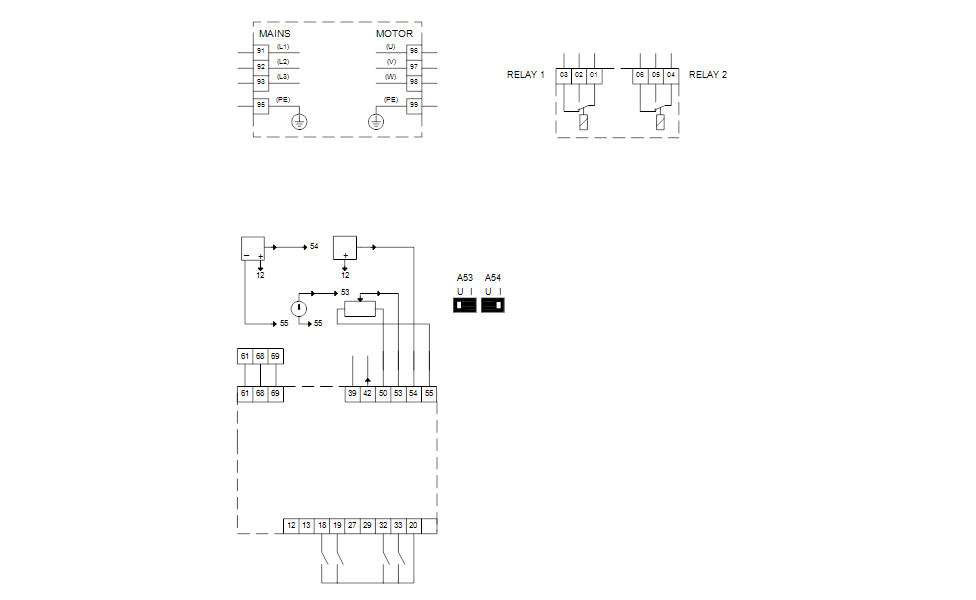

DWiring Diagram
