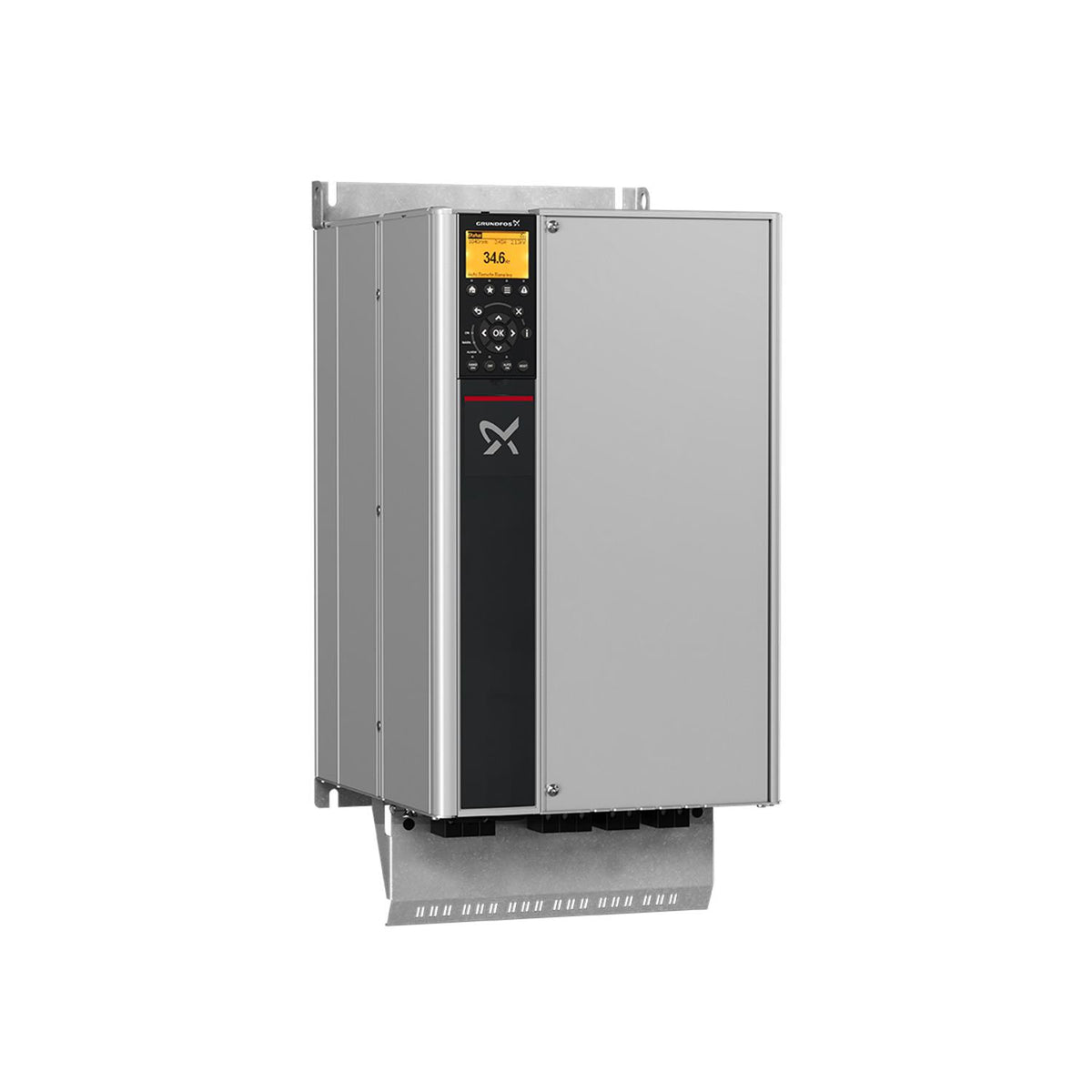

Grundfos 99616645 - CUE 3X200-240V IP20 15KW | Pump Controller | Frequency Converter | Wall Mounted

Save $1,774.35
GRUNDFOSSKU: 99616645

Price:
Sale price$2,168.65 Regular price$3,943.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99616645 - CUE 3X200-240V IP20 15KW Pump Controller

The Grundfos 99616645 - CUE 3X200-240V IP20 15KW is a high-performance pump controller designed for various industrial applications. This frequency converter is wall-mounted and offers reliable operation, ensuring optimal performance for your pumping systems.

As a trusted product from Grundfos, this controller is engineered to enhance the efficiency and longevity of your pumps. With its robust design and advanced technology, it is ideal for managing pump operations in demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

For the best results, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99616645. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP20
Frequency 50 / 60 Hz
Gross weight 52.3 lb
I MAX 59.4A
IP Class IP20
Length 150/300 m
Maximum current consumption 59.4 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 51.8 lb
P2 kW 20 HP
Phase 3
Range of ambient temperature 32 .. 113 °F
Rated current 59.4 A
Rated power - P2 20 HP
Rated voltage 3 x 200-240 V
Relative humidity 5-95 %
Thermal protec external

Motor Curves

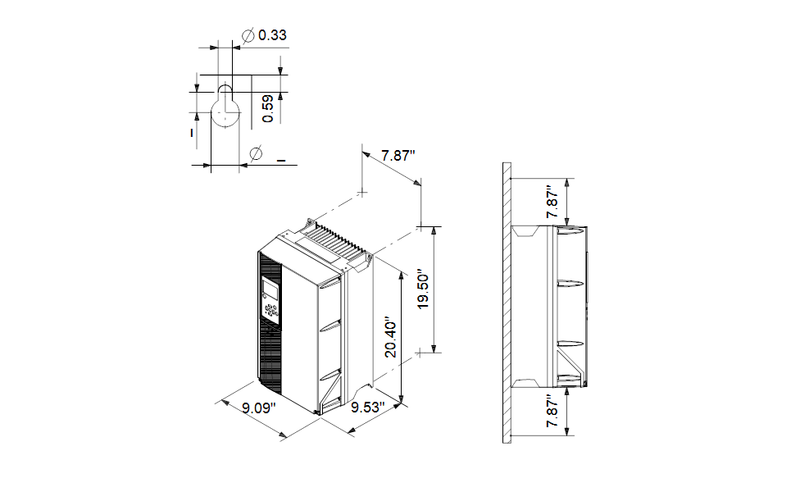

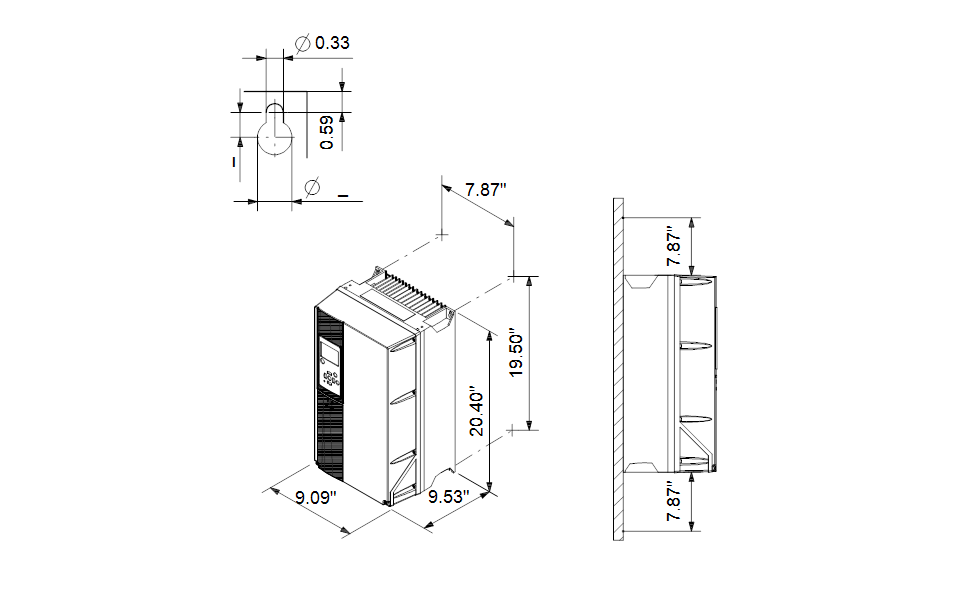

Dimensional Drawing

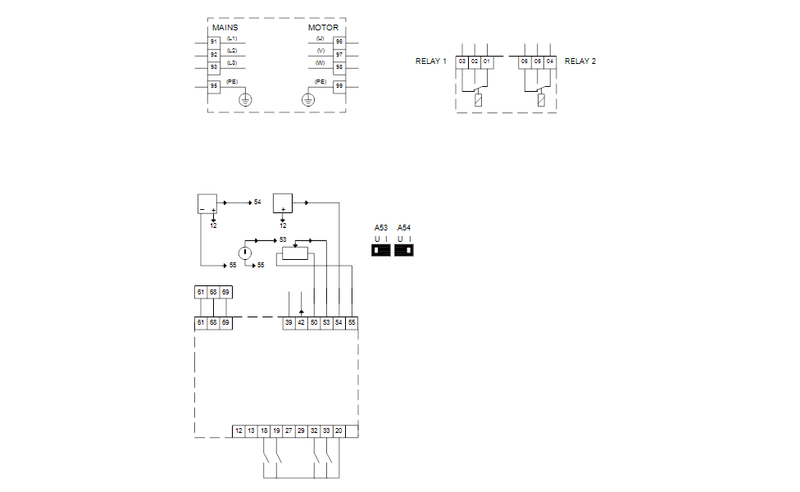

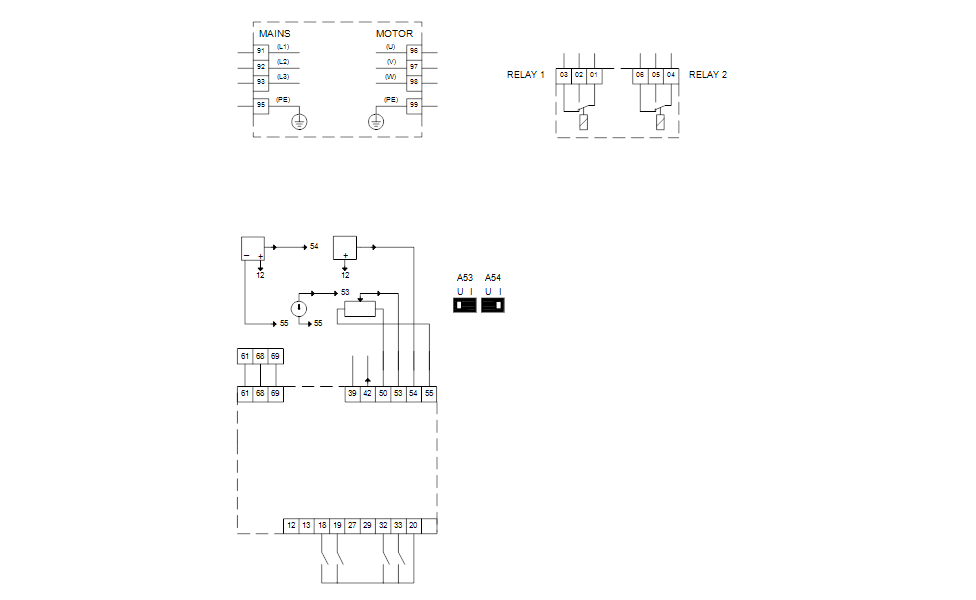

DWiring Diagram
