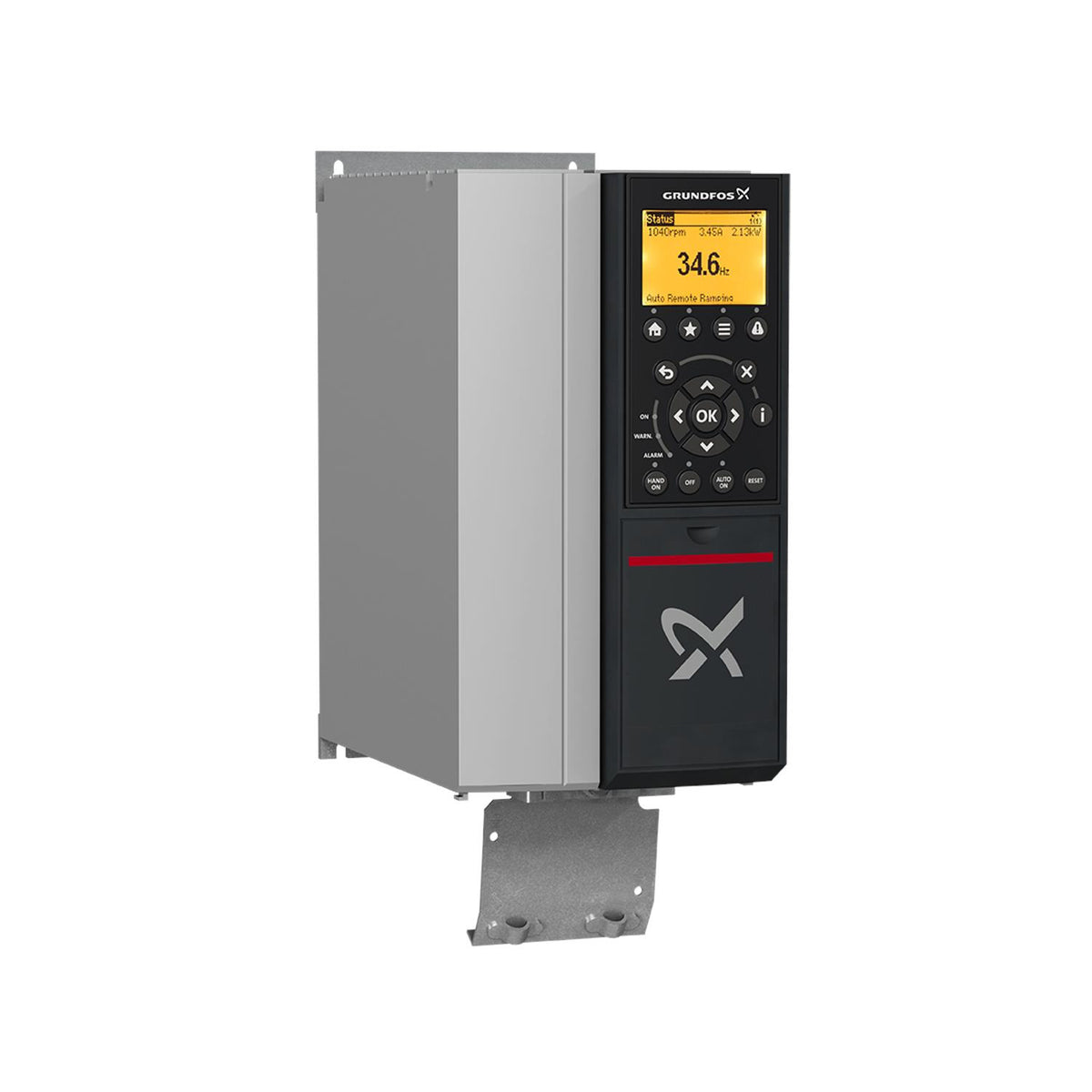

Grundfos 99616638 - CUE 3X200-240V IP20 1,5KW | Pump Controller | Frequency Converter | Wall Mounted

Save $626.85
GRUNDFOSSKU: 99616638

Price:
Sale price$766.15 Regular price$1,393.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99616638 - CUE 3X200-240V IP20 1.5KW is a high-performance pump controller designed for various industrial applications. Manufactured by the renowned brand Grundfos, this frequency converter ensures efficient operation and precise control of your pumping systems. With a power rating of 1.5KW and an IP20 protection class, it is suitable for wall-mounted installations in environments where space is limited.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call our expert team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 99616638. If you encounter any difficulties in locating the right item, our knowledgeable staff is here to help you find the perfect solution for your needs.

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP20
Frequency 50 / 60 Hz
Gross weight 11.2 lb
I MAX 7.5A
IP Class IP20
Length 150/300 m
Maximum current consumption 7.5 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 10.8 lb
P2 kW 2 HP
Phase 3
Range of ambient temperature 32 .. 122 °F
Rated current 7.5 A
Rated power - P2 2 HP
Rated voltage 3 x 200-240 V
Relative humidity 5-95 %
Thermal protec external

Motor Curves

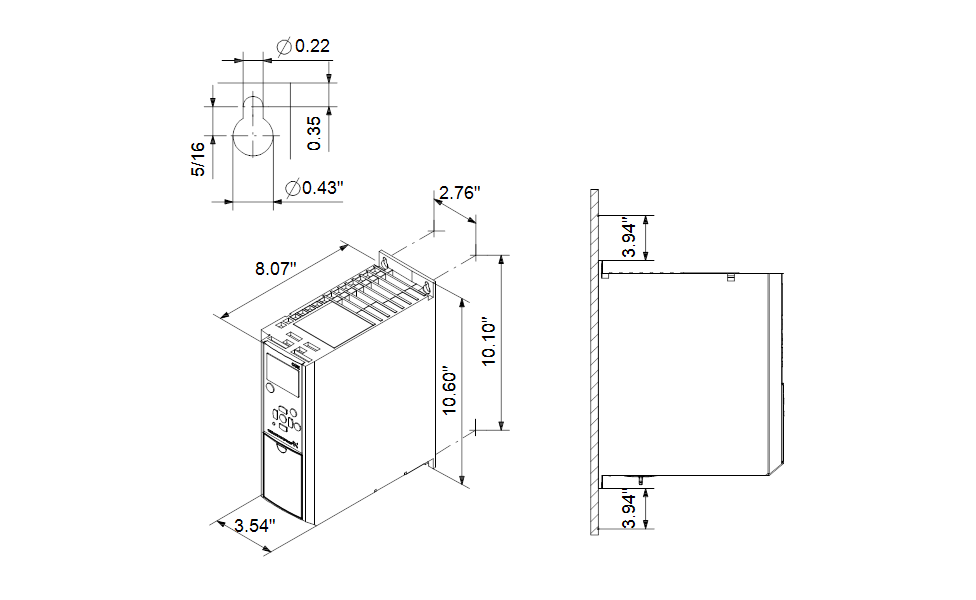

Dimensional Drawing

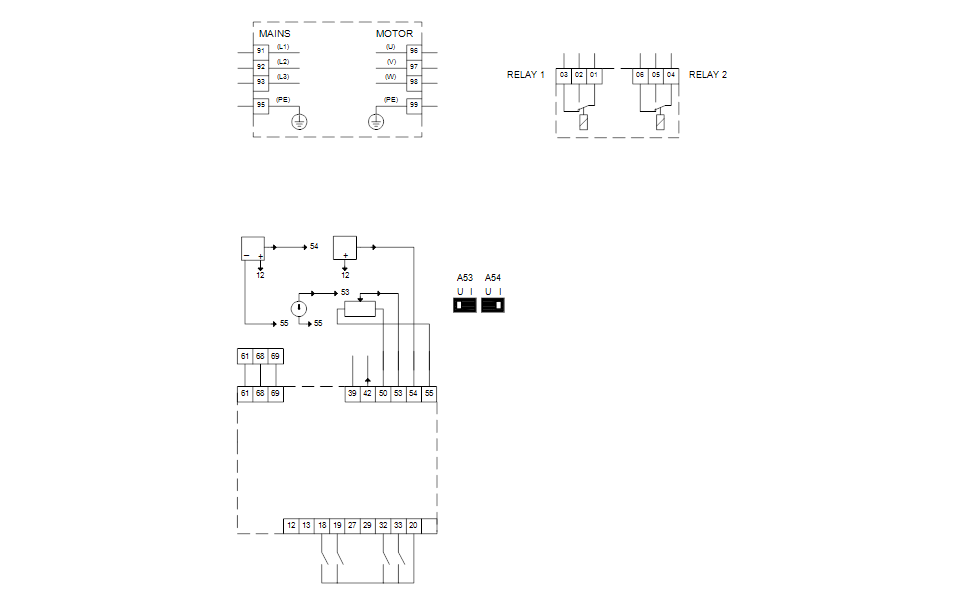

DWiring Diagram
