Grundfos 99616617 - CUE 1X200-240V IP21 7,5KW | Pump Controller | Frequency Converter | Wall Mounted

Save $2,183.40
GRUNDFOSSKU: 99616617

Price:
Sale price$2,668.60 Regular price$4,852.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

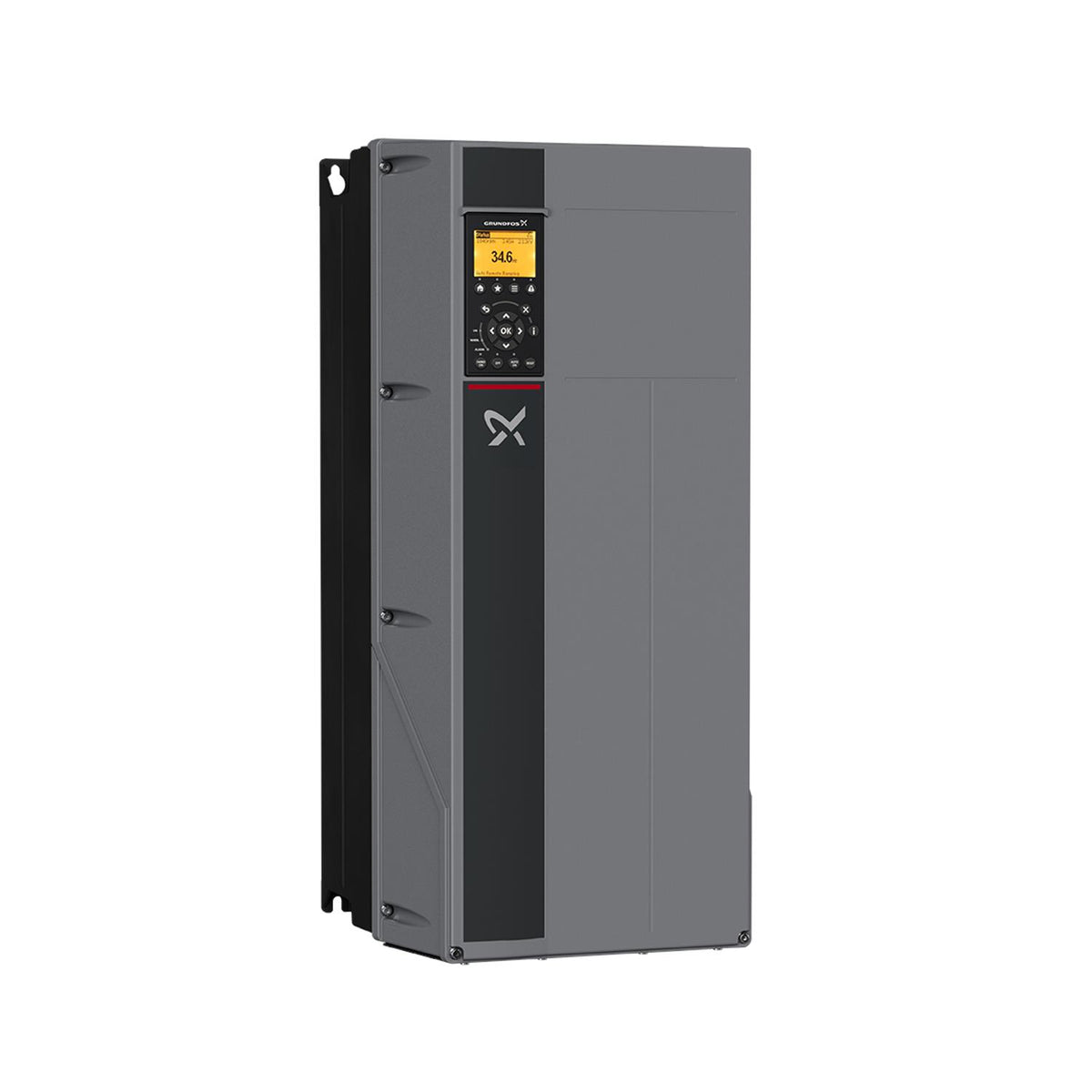

Grundfos 99616617 - CUE 1X200-240V IP21 7.5KW Pump Controller

The Grundfos 99616617 - CUE 1X200-240V IP21 7.5KW is a high-performance pump controller designed for various industrial applications. This frequency converter is wall-mounted and offers reliable control for Grundfos motors, ensuring optimal performance and energy efficiency.

With its robust IP21 rating, this controller is built to withstand challenging environments while providing precise control over your pumping systems. Whether you are looking to enhance your existing setup or replace an outdated unit, the CUE series is engineered to meet your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CE, CULUS, C-TICK
Built-in motor protection YES
Enclosure class (IEC 34-5) IP21
Frequency 50 / 60 Hz
Gross weight 60.0 lb
I MAX 30.8A
IP Class IP21
Length 150/300 m
Maximum current consumption 30.8 A
Minimum ambient temperature 32°F
Mounted on Wall
n rpm YES
Net weight 59.5 lb
P2 kW 10 HP
Phase 1
Range of ambient temperature 32 .. 113 °F
Rated current 30.8 A
Rated power - P2 10 HP
Rated voltage 1 x 200-240 V
Relative humidity 5-95 %
Thermal protec external
Danish VVS No. 382994275

Motor Curves

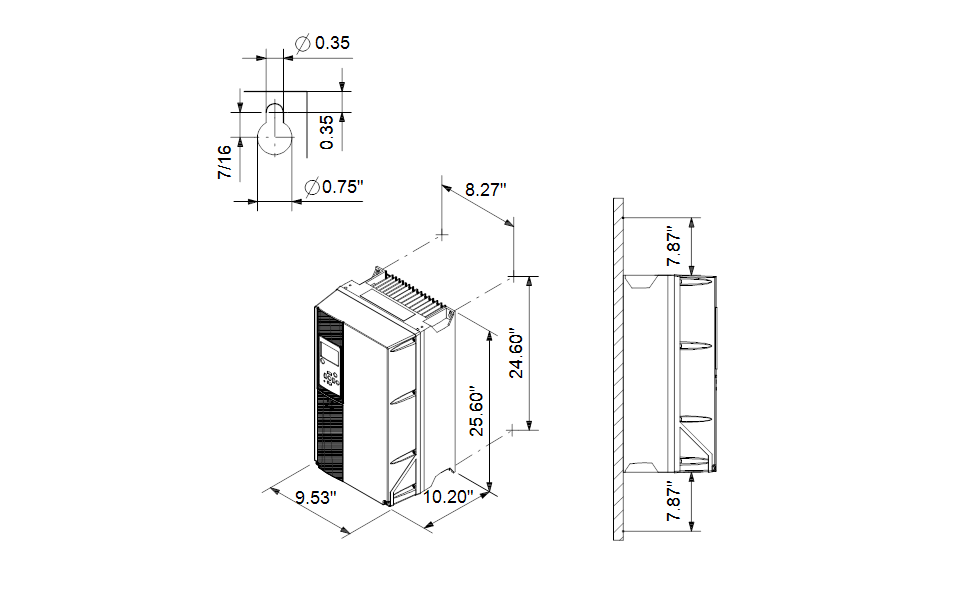

Dimensional Drawing

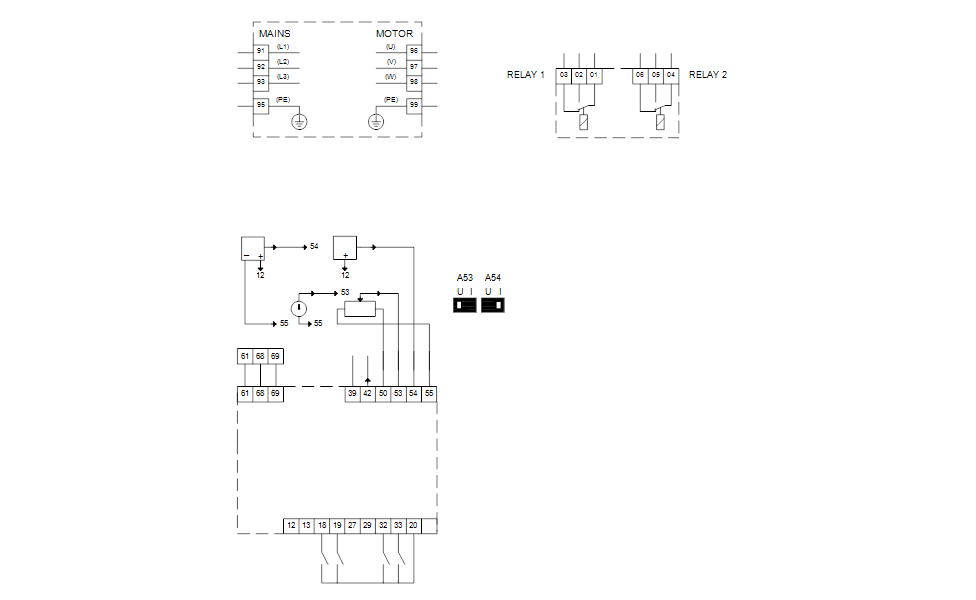

DWiring Diagram
