Grundfos 96124864 - CRT 8-2 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $4,928.42
GRUNDFOSSKU: 96124864

Price:
Sale price$6,586.58 Regular price$11,515.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRT 8-2 A-P-A-E-AUUE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700397138779
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 2
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 48.5 lb
Head max 102.7 ft
Housing Titanium
Impeller Titanium
Impellers 2
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3448rpm
Net weight 34.2 lb
Number of poles 2
Pipe connection PJE 2
Power (P2) required by pump 1.5 HP
Primary shaft seal AUUE
Product family CRT 8
Pump 1.5 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 52.8 US gpm
Rated flow 2 52.8 US gpm
Rated head 75.46 ft
Rated head 2 75.46 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 2
Standard Victaulic
Version A

Motor Curves

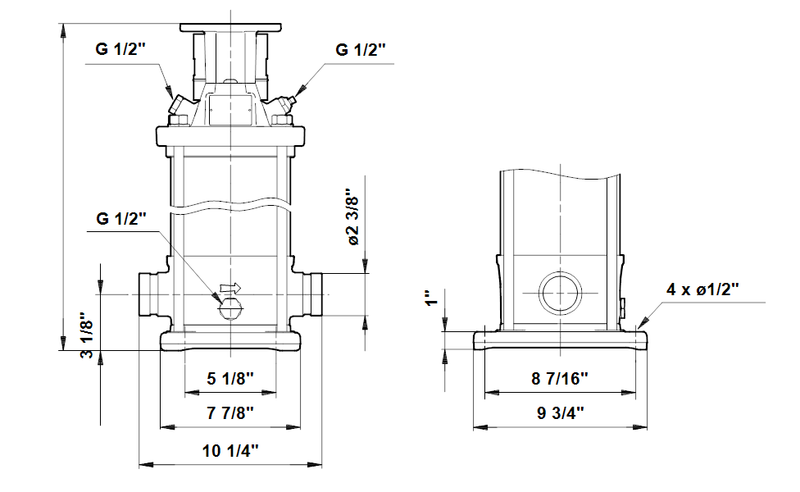

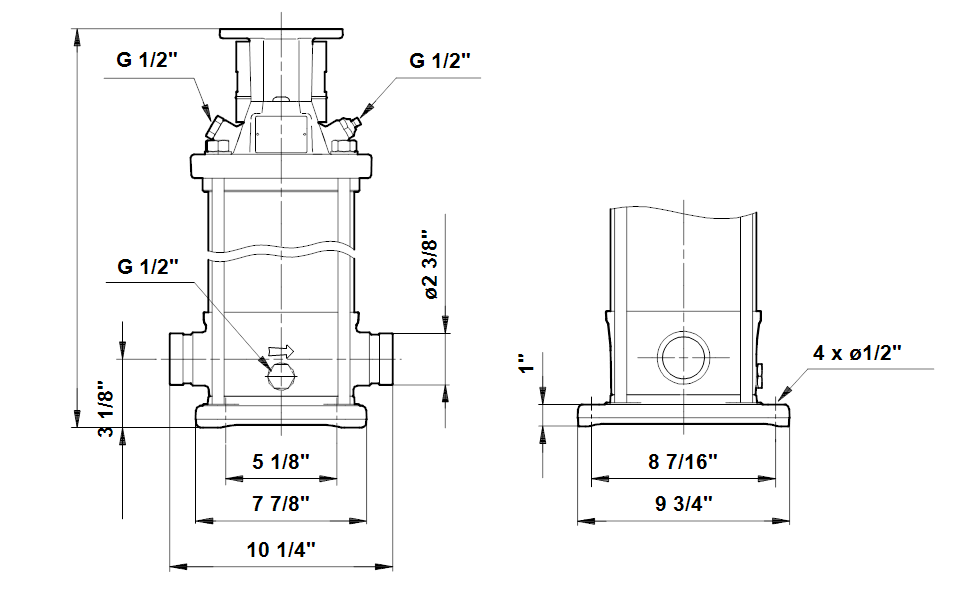

Dimensional Drawing
