Grundfos 96124871 - CRT 8-12 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $13,841.95
GRUNDFOSSKU: 96124871

Price:
Sale price$18,499.05 Regular price$32,341.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRT 8-12 A-P-A-E-AUUE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700397139479
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 2
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 215TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 104.0 lb
Head max 388.8 ft
Housing Titanium
Impeller Titanium
Impellers 12
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 215TC
Motor standard NEMA
n rpm 3467rpm
Net weight 81.6 lb
Number of poles 2
Pipe connection PJE 2
Power (P2) required by pump 10 HP
Primary shaft seal AUUE
Product family CRT 8
Pump 10 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 52.8 US gpm
Rated flow 2 52.8 US gpm
Rated head 460.3 ft
Rated head 2 460.3 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 14
Standard Victaulic
Version A

Motor Curves

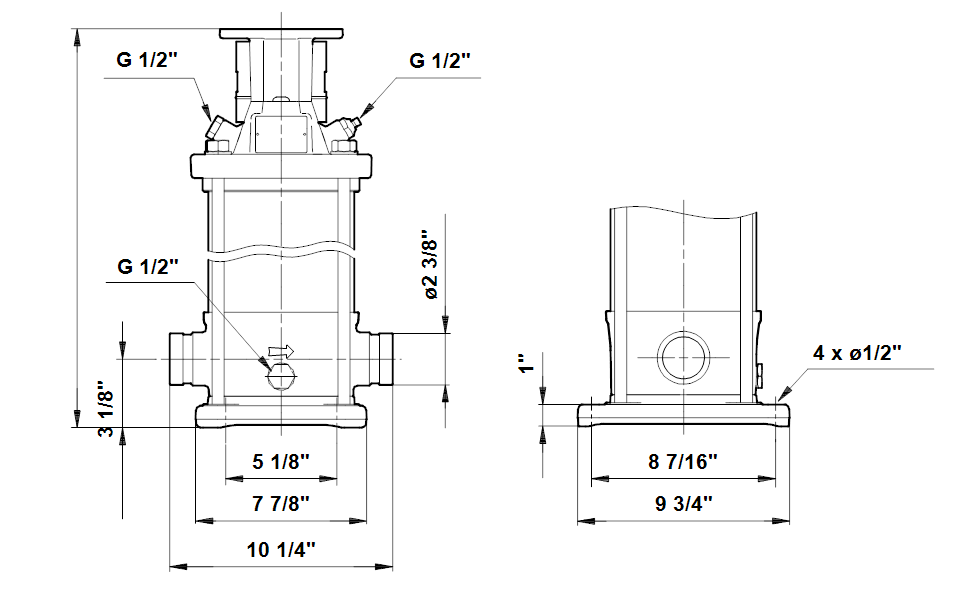

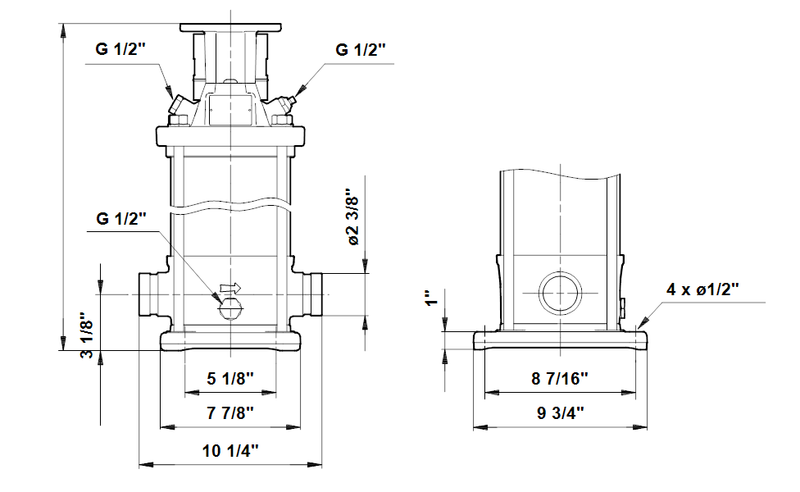

Dimensional Drawing
