Description

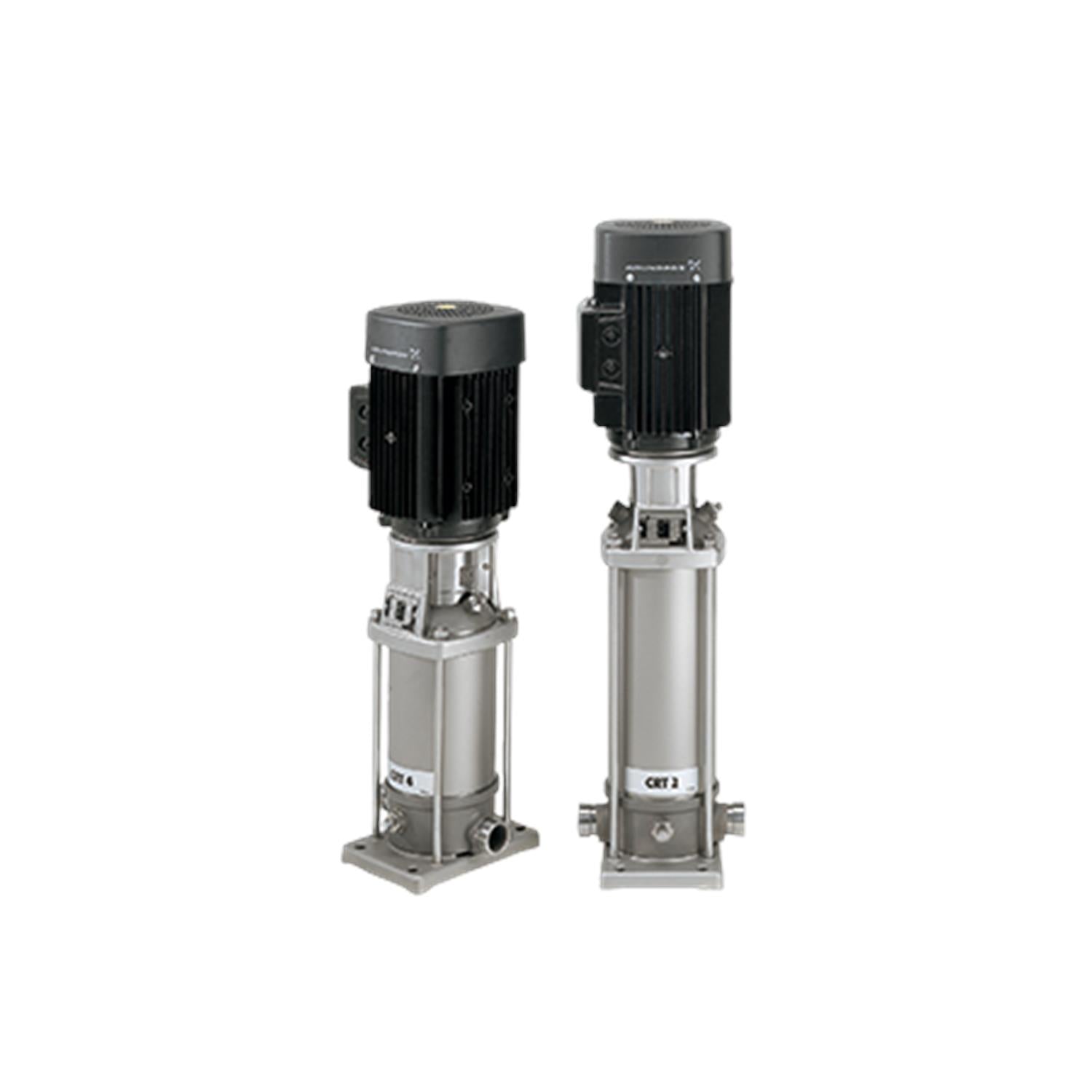

The Grundfos 96100209 (CRT 2-5 A-P-A-V-AUUV) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 11US gpm at 91.87ft. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96100209 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Frequency | 50 Hz |
| Pump Speed | 2900rpm |
| Nominal Flow | 11US gpm |
| Nominal Head | 91.87ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Nominal Pipe Bore | 42,4 mm |
| Pipe Standard | PJE |
| Impeller Material | Titanium |
| Housing Material | Titanium |
| Shaft Seal | AUUV |
| Approvals / Certifications | CE, EAC, UKCA, SEPRO |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature 194°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700395840438
- Approvals
- CE,EAC,UKCA,SEPRO
- Bearing 1
- SIC
- Code for rubber
- V
- Code for shaft seal
- AUUV
- Connect code
- P
- Connection
- PJE
- Connection 2
- 42,4 mm
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Flange size for motor
- FT85
- Flange standard
- PJE
- Frequency
- 50 HZ
- Frequency converter
- NONE
- Gross weight
- 31.8 lb
- Housing
- Titanium
- Impeller
- Titanium
- Impellers
- 5
- Liquid max temp
- 90°C
- Material code
- A
- Material Pricing Group
- 6
- Max pressure at stated temp
- 363 psi / 194 °F
- Maximum head
- 152.2 ft
- Maximum liquid temperature
- 194 °F
- Maximum operating pressure
- 362.59 psi
- Maximum permissible operating pressure
- 25bar
- MEI
- 0.7
- Minimum efficiency index, MEI ≥
- 0.7
- Minimum liquid temperature
- -4 °F
- Model
- A
- Motor
- FT85
- Motor standard
- IEC
- n rpm
- 2900rpm
- Net weight
- 20.7 lb
- Pipe connection
- 42,4 mm
- Power (P2) required by pump
- 0.75 HP
- Pump
- 0.75 HP
- Pump housing
- Titanium
- Pump version
- A
- Pumped liquid
- Water
- Rated flow
- 11 US gpm
- Rated flow 2
- 11 US gpm
- Rated head
- 91.87 ft
- Rated head 2
- 91.87 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- V
- Selected liquid temperature
- 68 °F
- Shaft seal
- AUUV
- Stages
- 5
- Standard
- IEC
- Type of connection
- PJE
- Version
- A
