Grundfos 96100974 - CRT 2-18 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $7,758.78
GRUNDFOSSKU: 96100974

Price:
Sale price$10,369.22 Regular price$18,128.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRT 2-18 A-P-A-E-AUUE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700396154466
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 1 1/4
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 184TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 56.0 lb
Head max 807.1 ft
Housing Titanium
Impeller Titanium
Impellers 18
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 184TC
Motor standard NEMA
n rpm 3450rpm
Net weight 39.7 lb
Number of poles 2
Pipe connection PJE 1 1/4
Power (P2) required by pump 5 HP
Primary shaft seal AUUE
Product family CRT 2
Pump 5 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 13.2 US gpm
Rated flow 2 13.2 US gpm
Rated head 548.3 ft
Rated head 2 548.3 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 18
Standard Victaulic
Version A

Motor Curves

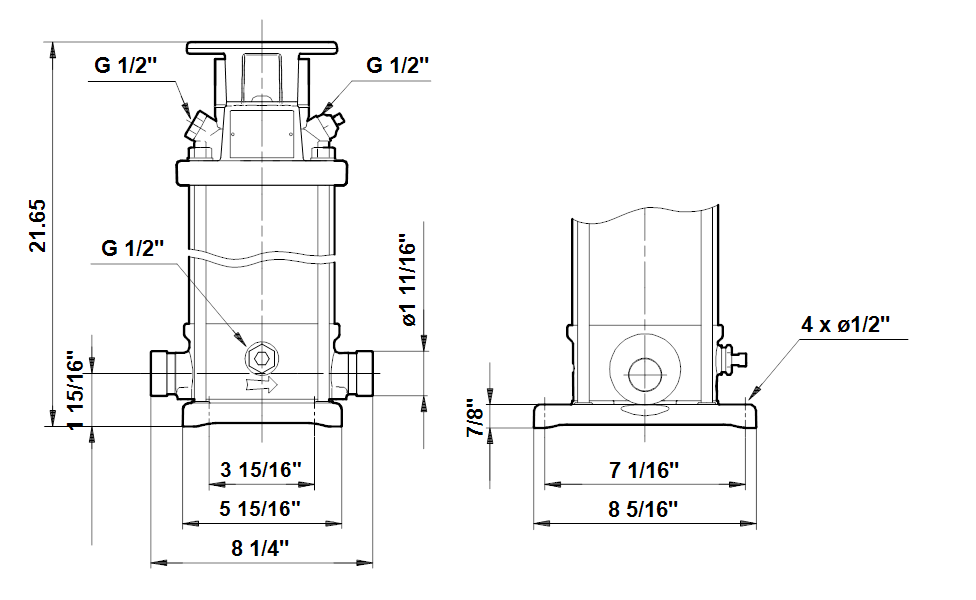

Dimensional Drawing
