Grundfos 96124886 - CRT 16-5 A-P-A-E-AUUE | Multistage | Centrifugal | Vertical | Inline

Save $9,615.88
GRUNDFOSSKU: 96124886

Price:
Sale price$12,851.12 Regular price$22,467.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRT 16-5 A-P-A-E-AUUE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in titanium. The pump is fitted with a mechanical shaft seal, type unbalanced O-ring seal. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700397139714
Applications Industrial applications
Approvals CE
Code for rubber E
Connect code P
Connection PJE 2
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 215TC
Flange standard Victaulic
Frequency 60 HZ
Frequency converter NONE
Gross weight 88.2 lb
Head max 340.6 ft
Housing Titanium
Impeller Titanium
Impellers 5
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 215TC
Motor standard NEMA
n rpm 3479rpm
Net weight 66.2 lb
Number of poles 2
Pipe connection PJE 2
Power (P2) required by pump 10 HP
Primary shaft seal AUUE
Product family CRT 16
Pump 10 HP
Pump housing Titanium
Pump version A
Pumped liquid Water
Rated flow 79.3 US gpm
Rated flow 2 79.3 US gpm
Rated head 282.2 ft
Rated head 2 282.2 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal AUUE
Stages 5
Standard Victaulic
Version A

Motor Curves

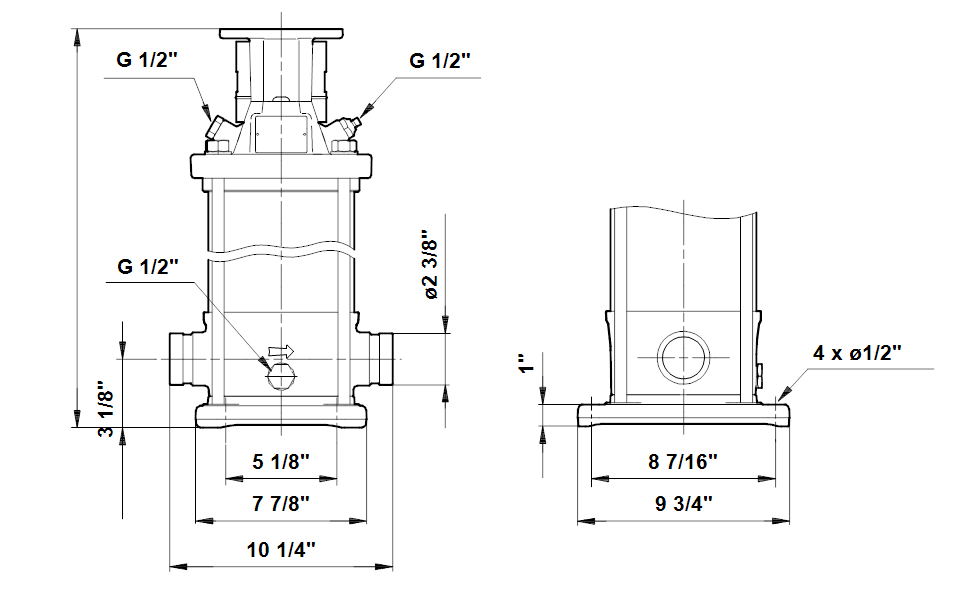

Dimensional Drawing
