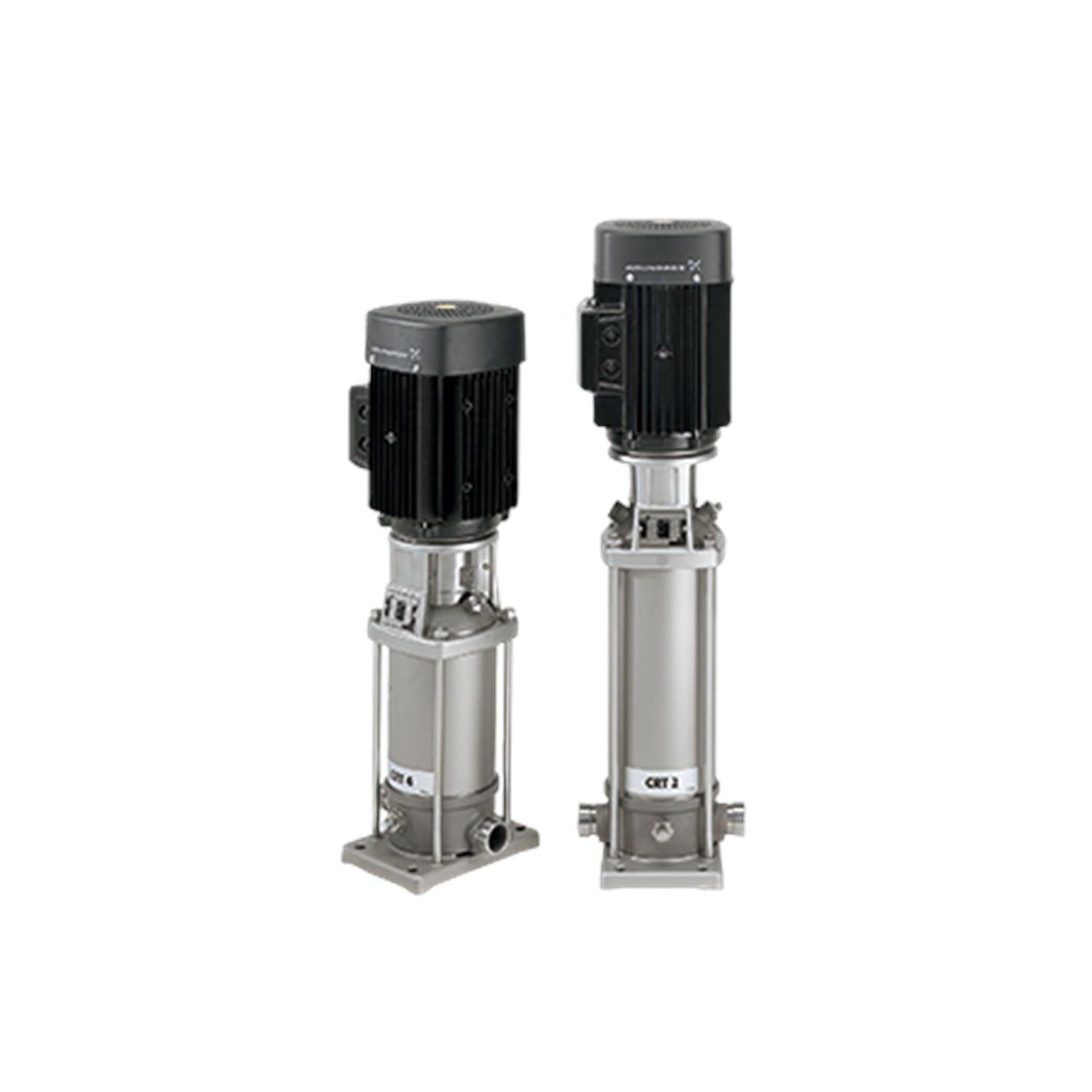

Image shown may not be actual product
![Grundfos 96108319 - CRT 16-4 A-P-A-V-AUUV]()
![Grundfos 96108319 - CRT 16-4 A-P-A-V-AUUV]()
![Grundfos 96108319 - CRT 16-4 A-P-A-V-AUUV]()
![Grundfos 96108319 - CRT 16-4 A-P-A-V-AUUV]()
Description
CRT 16-4 A-P-A-V-AUUV | Vertical, non-self-priming, multistage, in-line, centrifugal pump for installation in pipe systemsand mounting on a foundation. The pump has the following characteristics: Impellers, intermediate chambers and outersleeve are made of
Pump head cover and base are made of
The shaft seal has assembly lengthaccording to EN 12756.
Power transmission is via cast iron splitcoupling.
Pipework connection is via PJEflanges/couplings.
EAN
5700396402321
Material Pricing Group
6
Approvals
CE,EAC,UKCA,SEPRO
Frequency
50 HZ
Standard
IEC
Maximum liquid temperature
194 °F
Code for rubber
V
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
362.59 psi
Selected liquid temperature
68 °F
Type of connection
PJE
Bearing 1
SIC
Flange size for motor
FT130
Pumped liquid
Water
Connect code
P
Net weight
75.0 lb
Gross weight
97.0 lb
Power (P2) required by pump
5.5 HP
Pipe connection
60,3 mm
Minimum efficiency index, MEI ≥
0.69
Frequency converter
NONE
Minimum liquid temperature
-4 °F
Stages
5
Approvals
CE,EAC,UKCA,SEPRO
Rated flow
70.4 US gpm
Flange standard
PJE
Model
A
Version
A
Motor
FT130
Rubber
V
Maximum head
189 ft
Housing
Titanium
Motor standard
IEC
Rated head
142.7 ft
Curve tolerance
ISO9906:2012 3B
Impellers
4
Connection
PJE
Impeller
Titanium
Code for shaft seal
AUUV
Pump housing
Titanium
Pump
5.5 HP
Standard
IEC
Pump version
A
