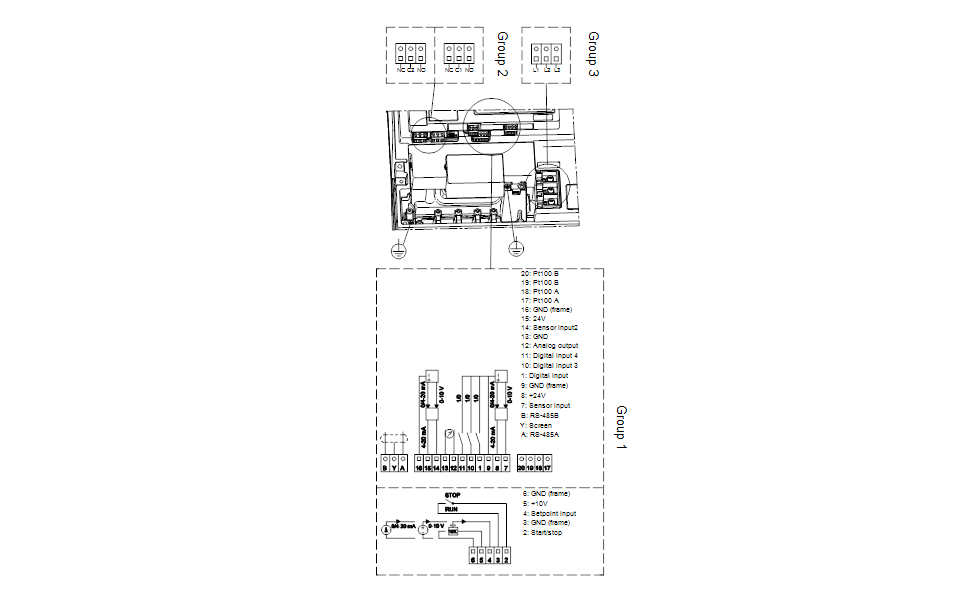

CRNE 64-3-2 N-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min. " or "Max. " operation or to "Stop". The operating panel has indicator lights for "Operation" and "Fault". Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The terminal box holds terminals for these connections: pump start/stop input (potential-free contact)
remote setpoint setting via analog signal, 0-10 V, 0(4)-20 mA
10 V voltage supply for setpoint potentiometer, Imax = 5 mA
three analog sensor inputs, 0-10 V, 0(4)-20 mA; the factory-fitted pressure sensor is connected to one of these inputs
24 V voltage supply for sensor, Imax = 40 mA
one analog output
three digital inputs
two Pt100 inputs
two potential-free fault signal relays with changeover contact, reporting "Fault", "Operation" or "Ready"
RS-485 GENIbus connection
interface for Grundfos CIM fieldbus module.
