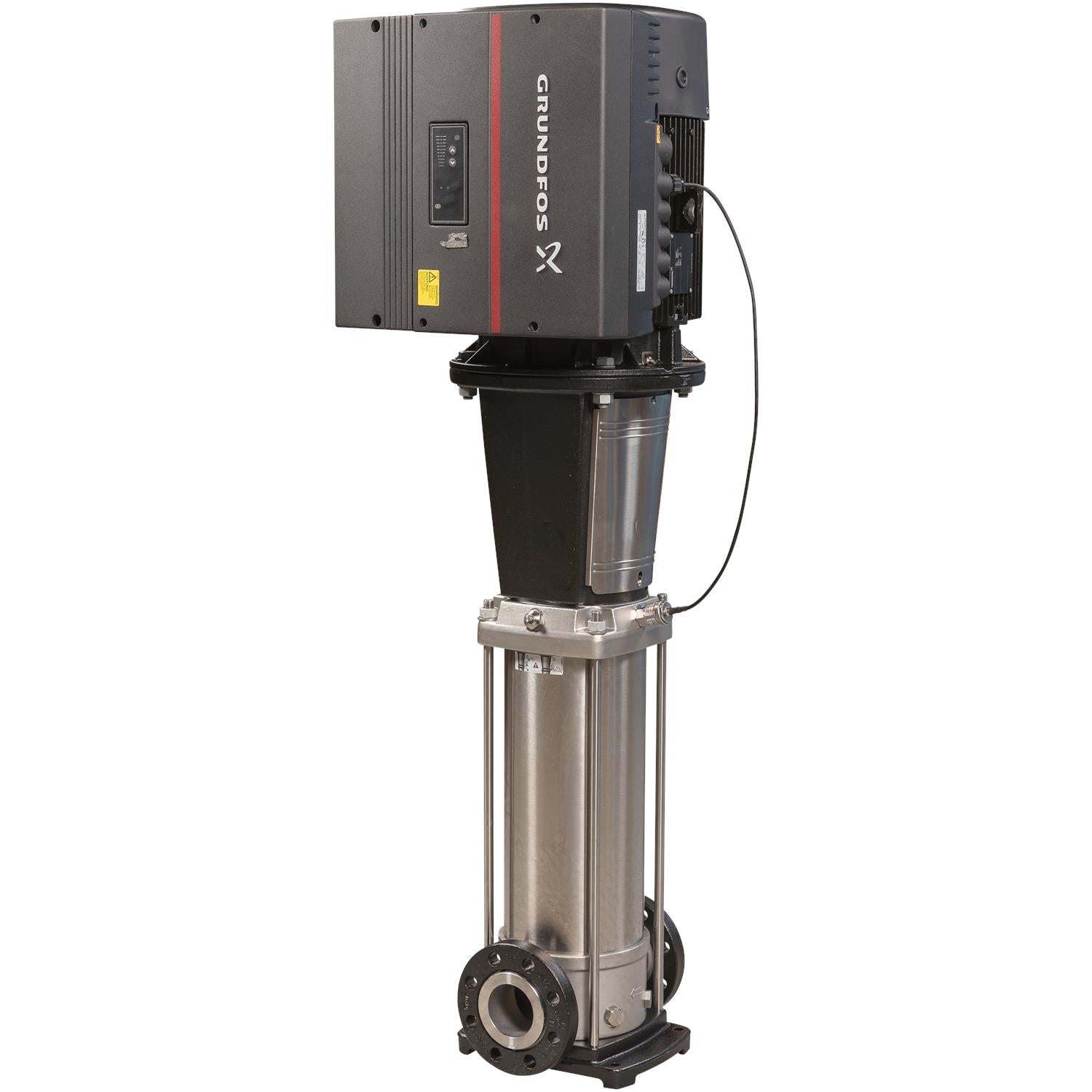

CRNE 64-3-2 N-F-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
The Grundfos 96124049 (CRNE 64-3-2 N-F-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless Variable Speed. All stainless steel construction with integrated variable frequency drive. Variable speed and full stainless for demanding chemical or food-grade applications. Nominal performance: 339US gpm at 249.4ft. Rated 380-480V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Power
30HP
Voltage
380-480V
Phase
3.0-Phase
Max Flow
339US gpm
Max Head
249.4ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Variable Speed Plus All Stainless
CRNE combines IE5 variable speed with 316 stainless steel wetted construction — the full specification for demanding chemical, food, and pharmaceutical pressure systems.
IE5 Permanent Magnet Motor
Highest efficiency class motor reduces operating cost. Especially effective in pressure systems that spend most runtime below maximum flow.
Integrated Drive — No Cabinet Required
VFD is inside the pump head. Eliminates separate drive panel, reduces installation footprint, and simplifies commissioning.
All Stainless Steel Wetted Path
Every surface in contact with the fluid is EN 1.4401 (316) stainless. Suitable for chlorinated water, mild acids, cleaning agents, and process chemicals.
iSOLUTIONS Connectivity
Supports MODBUS, PROFIBUS, BACnet, and Grundfos GO for full BMS integration and remote performance monitoring.
Cartridge Seal — No Adjustment
Factory-set cartridge seal. No field adjustment on installation. Seal variants available for water, chemical, and high-temperature service.
Model Information — CRNE 64-3-2 N-F-A-V-HQQV
Series: CRNE
Model Code: CRNE 64-3-2 N-F-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: PN 16
Technical Specifications
| Model Number | 96124049 |
| Product Series | CRNE |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless Variable Speed |
| Power | 30HP |
| Voltage | 380-480V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 480-3540rpm |
| Pump Speed | 3556rpm |
| Full Load Current | 43,5-35,0A |
| Motor Type | 180MB |
| Motor Protection | YES |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 92.7% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 339US gpm |
| Nominal Head | 249.4ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | DN 100 |
| Outlet Connection | DN 100 |
| Pipe Pressure Rating | PN 16 |
| Pipe Standard | DIN |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQV |
| Approvals / Certifications | CE, EAC, UKCA, SEPRO |
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 380-480V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRNE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRNE Series
✓ Product Data Sheet — CRNE 64-3-2 N-F-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5700396703534
- Applications
- Industrial applications
- Approvals
- CE
- Approvals for drinking water
- WRAS
- Bearing 1
- SIC
- Bearing 2
- Graflon
- Built-in motor protection
- YES
- Code for rubber
- V
- Code for shaft seal
- HQQV
- Config. file no
- 95139537
- Connect code
- F
- Connection
- PN 16
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- FF300
- Frequency converter
- Built-in
- Function Module
- ADVANCED I/O
- Gross weight
- 633.0 lb
- IE Efficiency class
- IE3
- Impeller
- Stainless steel
- Impellers
- 2
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 194 °F
- Low NPSH
- N
- Mains frequency
- 50 Hz
- Material code
- A
- Material Pricing Group
- 31
- Max pressure at stated temp
- 232 psi / 194 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 331.7 ft
- Maximum operating pressure
- 16 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- B
- Motor
- Standard motor size
- Motor efficiency at full load 1
- 0.927
- Motor standard
- IEC
- Motor type
- 180MB
- Net weight
- 521.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 2
- Power (P2) required by pump
- 22 kW
- Power factor 1
- 0.91-0.90
- Pressure rating for connection
- PN 16
- Pressure sensor
- Y
- Product family
- CRNE 64
- Pump
- 22 kW
- Pump speed on which pump data are based
- 3556 rpm
- Pump version
- N
- Pumped liquid
- Water
- Rated current
- 43.5-35.0 A
- Rated flow
- 339 US gpm
- Rated head
- 249.4 ft
- Rated power - P2
- 22 kW
- Rated speed
- 480-3540 rpm
- Rated voltage
- 3 x 380-480 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- V
- Selected liquid temperature
- 68 °F
- Size of inlet connection
- DN 100
- Size of outlet connection
- DN 100
- Stages
- 3
- Standard
- IEC
- Support bearing
- Graflon
- Terminal box position
- 6
- Type
- 180MB
- Type of connection
- DIN
- Version
- N
