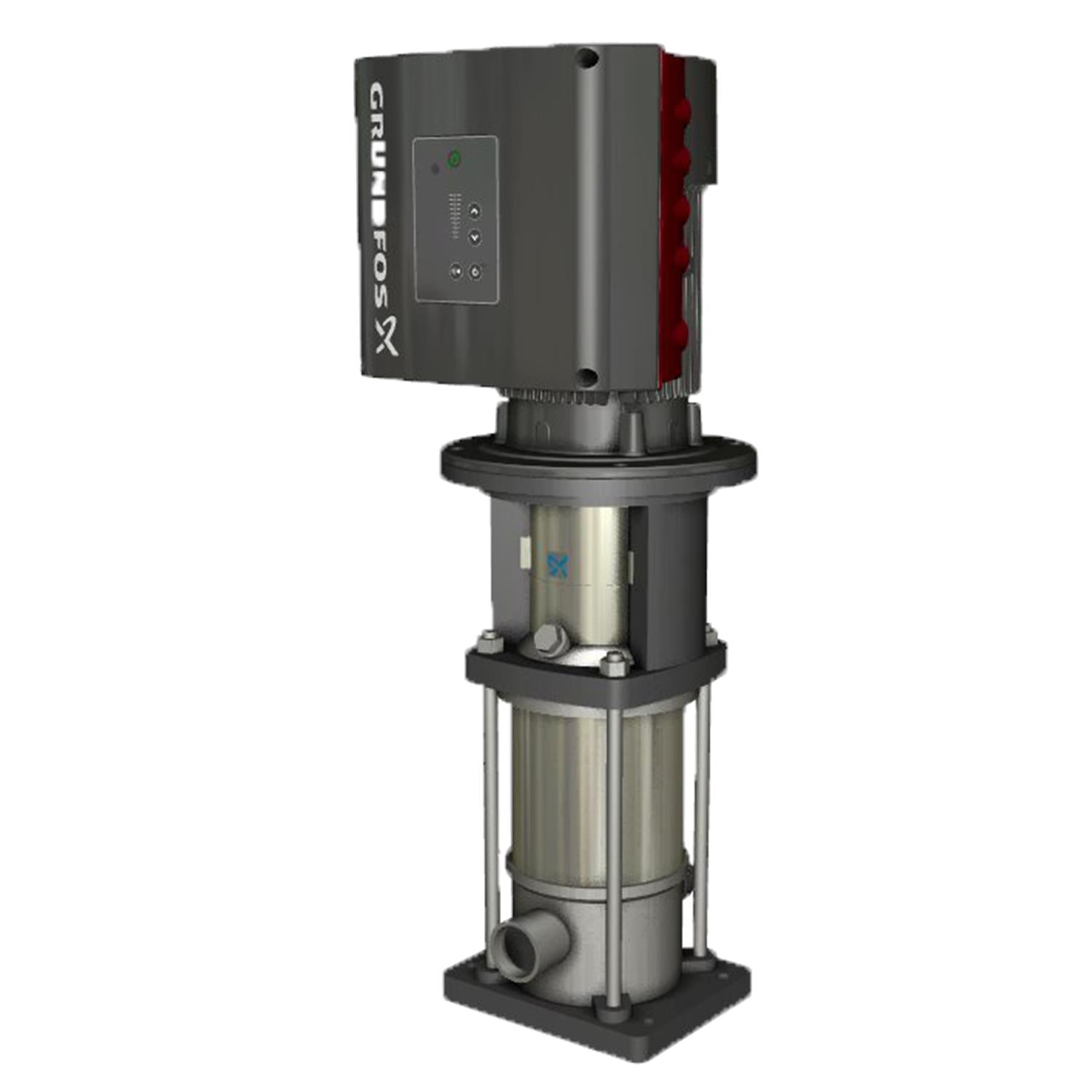

![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
![Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE]()
Description
Grundfos 99846909 - CRNE 5-9 N-P-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713835125415
Motor efficiency at full load 1
0.887
IE Efficiency class
IE5
Code for rubber
E
Maximum ambient temperature
40 °C
Material code
A
Density
998.2 kg/m³
Max pressure at stated temp
25 bar / 120 °C
Maximum operating pressure
25 bar
Size of inlet connection
DN 32
Power factor 1
0.94
Selected liquid temperature
20 °C
Type of connection
PJE
Rated voltage
3 x 200-240 V
Flange size for motor
182TC
Pumped liquid
Water
Size of outlet connection
DN 32
Connect code
P
Liquid temperature range
-20 .. 120 °C
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
38.2 kg
Rated speed
360-4000 rpm
Gross weight
76.2 kg
Rated power - P2
2.2 kW
Enclosure class (IEC 34-5)
IP55
Power (P2) required by pump
2.2 kW
Pressure rating for connection
PN 50
Rated current
7.90-6.60 A
Service factor
1.15
Control panel
Graphical
Config. file no
99303333
Frequency converter
Built-in
Motor type
100A
Function Module
FM300 - Advanced
Pressure sensor
Y
Pump speed on which pump data are based
3461 rpm
Stages
9
Approvals
CURUS
Rated flow
6.9 m³/h
Model
A
Version
N
Motor
182TC
Rubber
E
Maximum head
91.2 m
Motor standard
NEMA
Rated head
67.9 m
Type
100A
Curve tolerance
ISO9906:2012 3B
Impellers
0
Connection
PN 50
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
0
Pump
2.2 kW
Low NPSH
N
Standard
NEMA
Pump version
N
