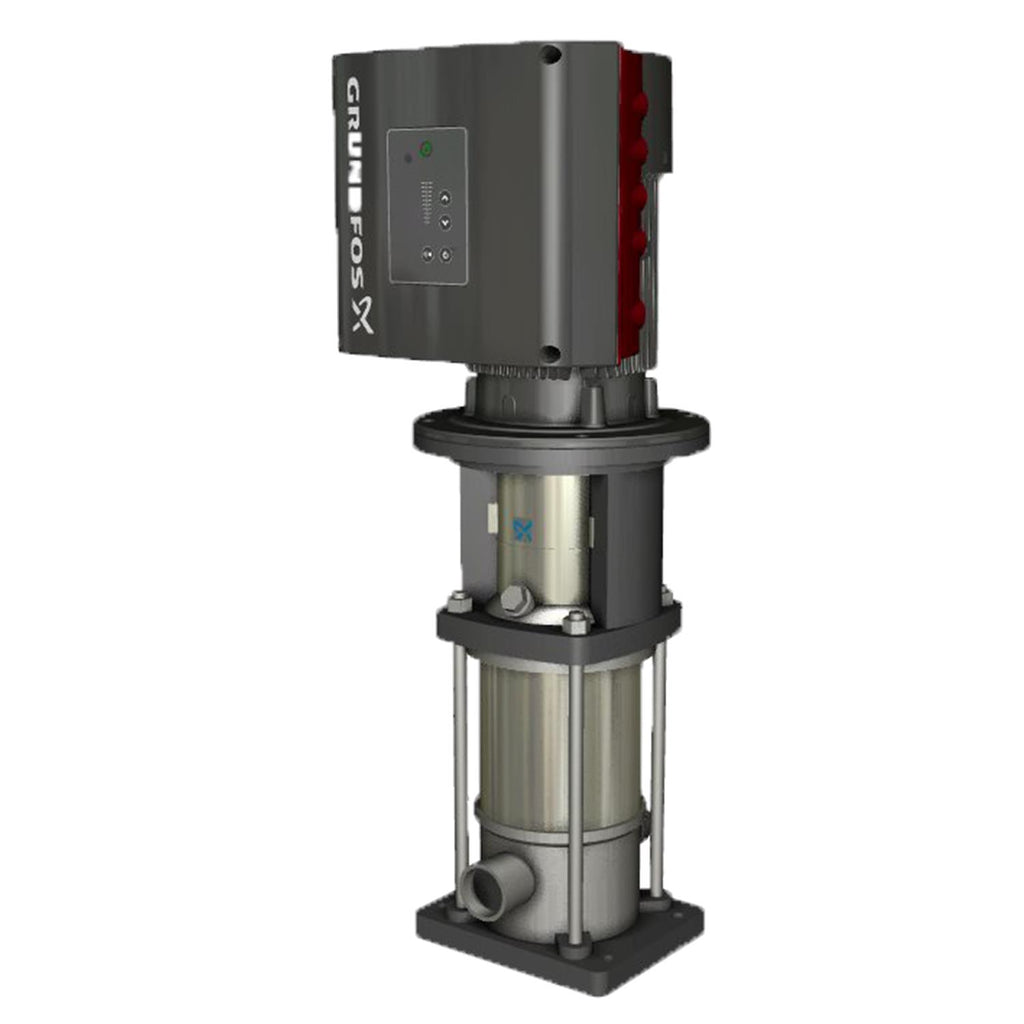

Grundfos 99040011 - CRNE 5-9 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99040011

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99040011 CRNE 5-9 N-P-A-E-HQQE is a vertical, multistage inline stainless steel centrifugal pump designed for industrial and commercial fluid transfer. Typical users include maintenance technicians and service shops replacing high-pressure inline pump stages.

Key features

  • Multistage inline design for higher discharge pressure and compact footprint
  • Stainless steel construction suited for corrosive or hygienic environments
  • Service-friendly configuration that simplifies installation and maintenance

Applications

Common uses include high-pressure water boosting, industrial process circulation, HVAC systems, and other applications requiring reliable multistage inline performance.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99040011

EAN 5712605605256
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499295
Connect code P
Connection PN 50
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 90.5 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 299.2 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 76.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 50
Pressure sensor Y
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version N
Pumped liquid Water
Rated current 3.8 A
Rated flow 30.4 US gpm
Rated head 222.8 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard NEMA
Type 90D
Type of connection PJE
Version N

Motor Curves

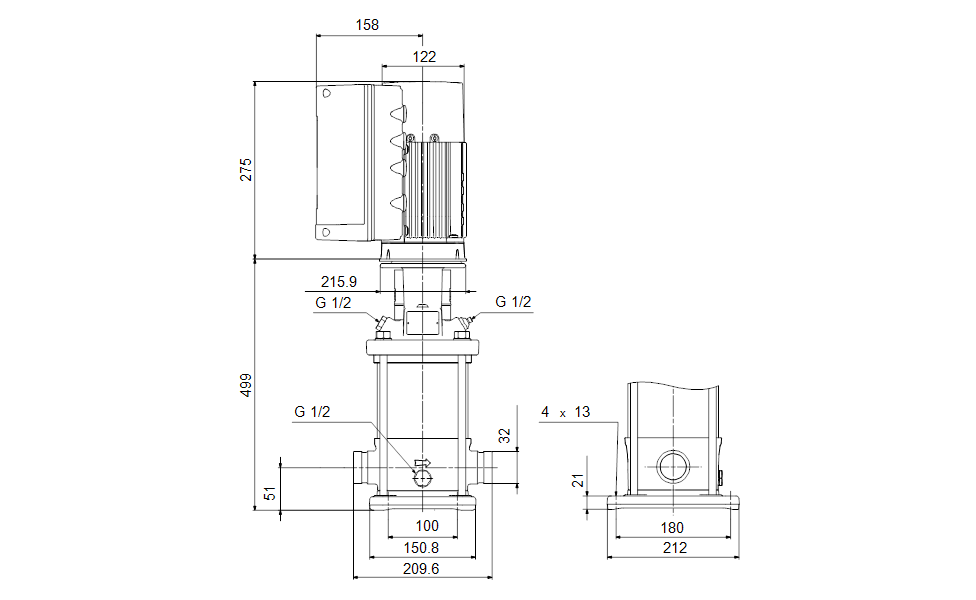

Dimensional Drawing

DWiring Diagram
