Grundfos 92777019 - CRNE 5-9 NY-CX-T-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92777019

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

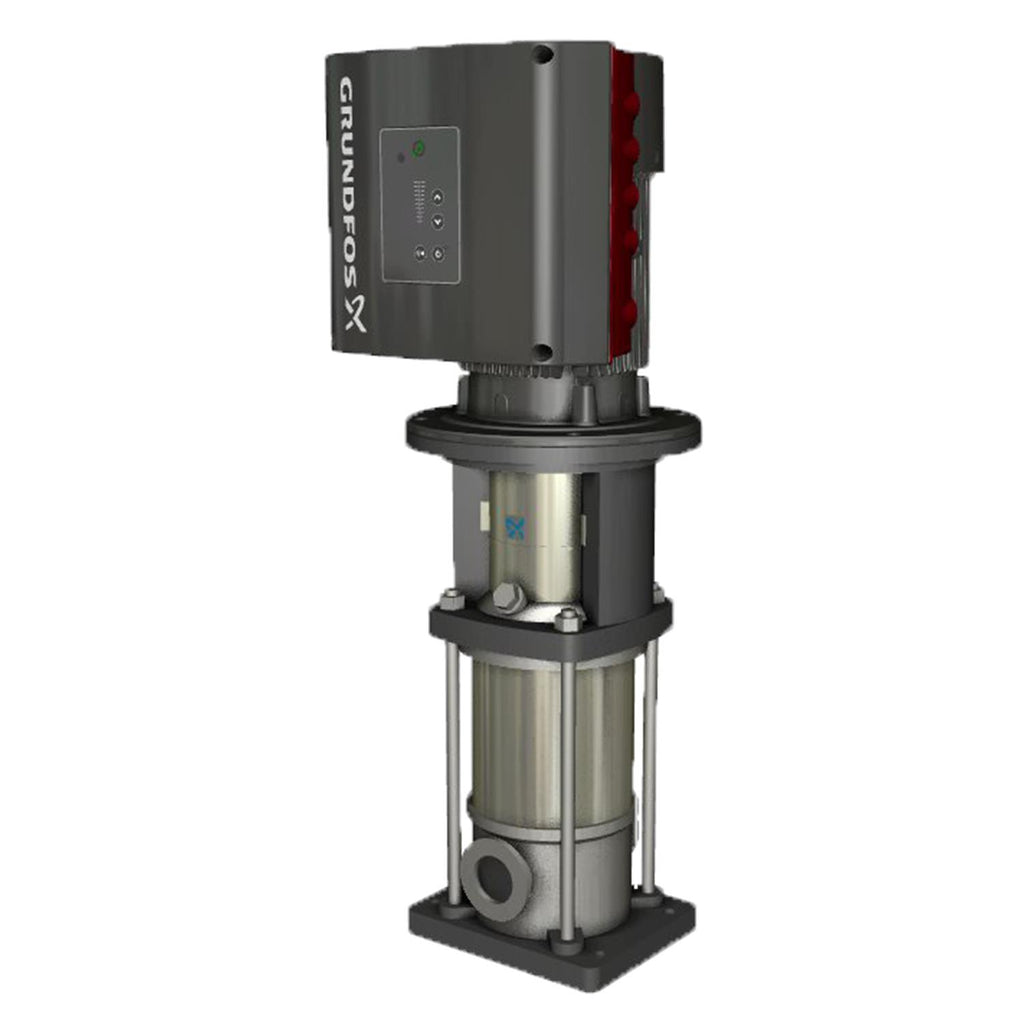

Grundfos 92777019 - CRNE 5-9 NY-CX-T-E-HQQE Vertical Multistage Inline Pump

The Grundfos 92777019 - CRNE 5-9 NY-CX-T-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

With its stainless steel construction, the CRNE 5-9 ensures durability and resistance to corrosion, making it suitable for demanding environments. This pump is perfect for applications requiring consistent flow rates and high pressure, ensuring optimal performance in your operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715119456543
Approvals CE
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99303001
Connect code CX
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 123.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 306.1 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at full load 1 0.888
Motor standard IEC
Motor type 90LA
Net weight 76.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.94
Pressure rating for connection PN 25
Pressure sensor Y
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version NY
Pumped liquid Water
Rated current 7.80-6.50 A
Rated flow 30.4 US gpm
Rated head 223.1 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard IEC
Type 90LA
Type of connection TriClamp
Version NY

Motor Curves

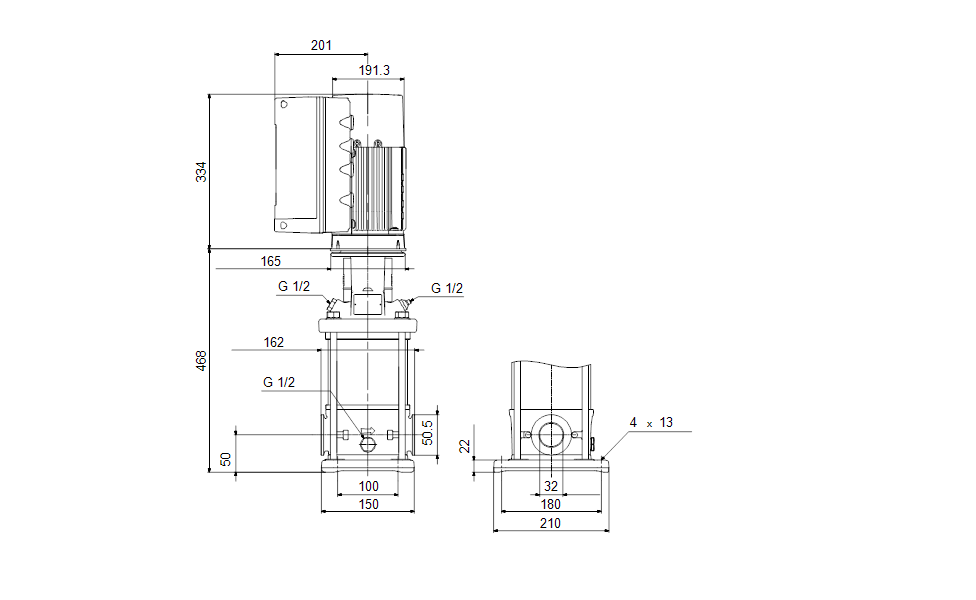

Dimensional Drawing

DWiring Diagram
