Grundfos 98988064 - CRNE 5-5 N-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98988064

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98988064 - CRNE 5-5 N-FGJ-A-E-HQQE is a vertical, inline multistage stainless steel pump designed for industrial and commercial high-pressure fluid transfer. It suits technicians and maintenance teams replacing or servicing centrifugal pump systems.

Key features

  • Vertical multistage inline design for compact, space-saving installations
  • Designed for high-pressure centrifugal applications and service specials
  • Stainless steel construction offers corrosion resistance and long service life

Applications

Typical uses include boiler feed, water supply boosting, pressure boosting, and other industrial centrifugal pumping tasks where inline, multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98988064

EAN 5712604754955
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499286
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 81.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 165.7 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.894
Motor standard NEMA
Motor type 90C
Net weight 70.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor Y
Pump 1.5 kW
Pump speed on which pump data are based 3466 rpm
Pump version N
Pumped liquid Water
Rated current 2.65 A
Rated flow 30.4 US gpm
Rated head 116.5 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 5
Standard NEMA
Type 90C
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

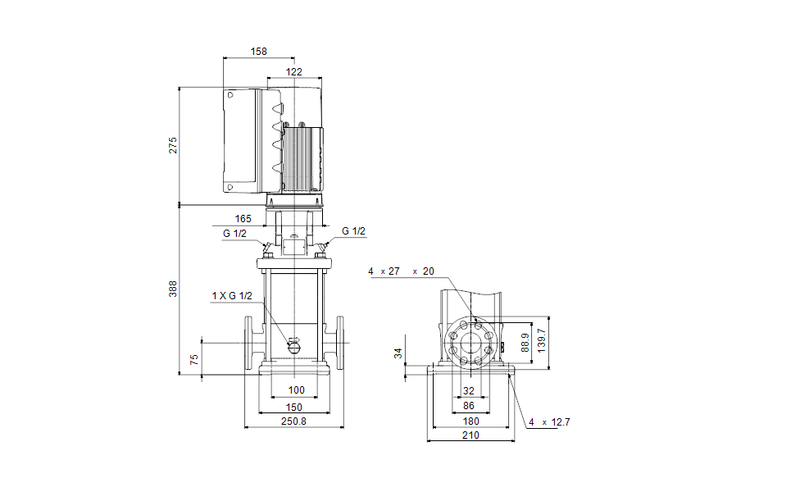

Dimensional Drawing

DWiring Diagram
