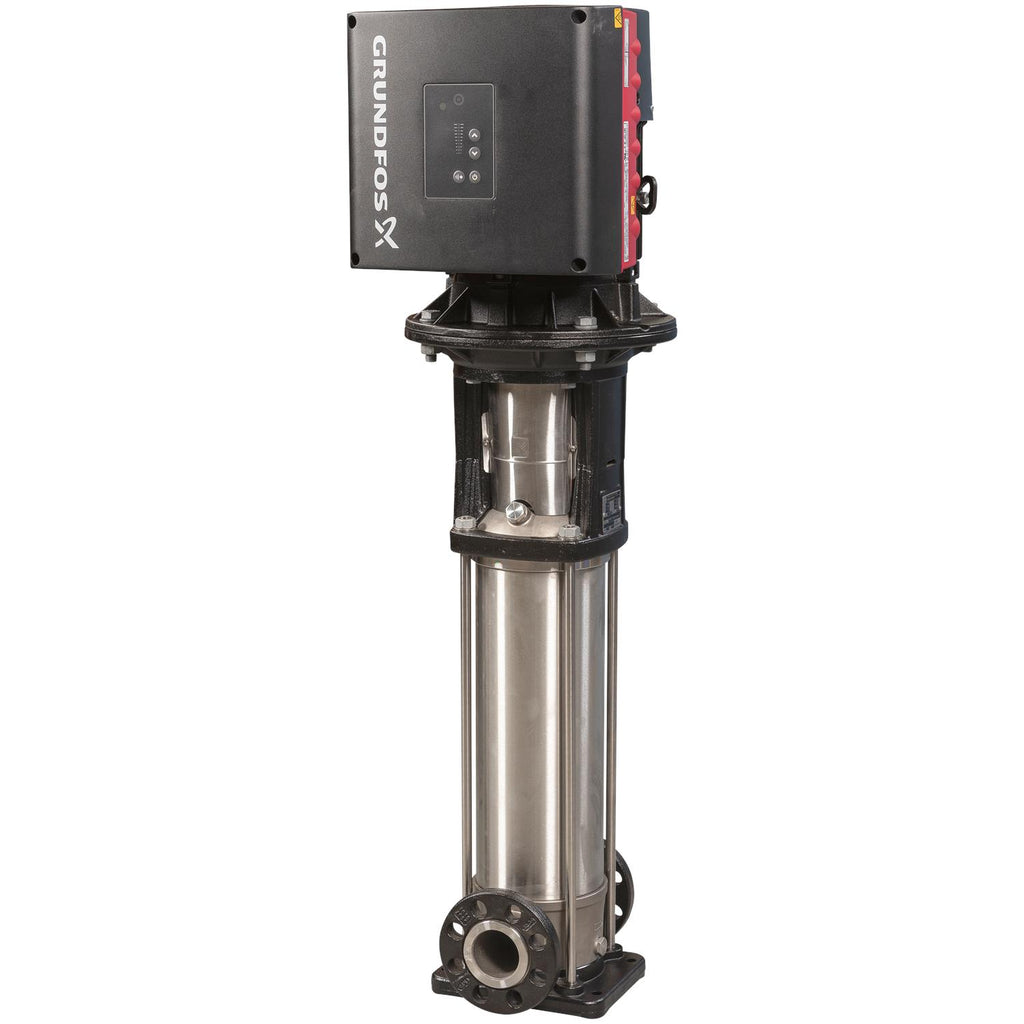

Grundfos 98390152 - CRNE 5-5 A-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98390152

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98390152 - CRNE 5-5 A-FGJ-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this stainless steel pump is engineered for durability and efficiency, making it an ideal choice for high-pressure and demanding environments.

This model features advanced centrifugal technology, ensuring optimal fluid handling and reliability. With its compact design, the CRNE 5-5 A-FGJ-A-E-HQQE is perfect for installations where space is limited, while still delivering exceptional performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

EAN 5711494191536
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499053
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 75.3 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 169 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.889
Motor standard IEC
Motor type 90SC
Net weight 68.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92-0.85
Pressure rating for connection PN 25
Pressure sensor N
Product family CRNE 5
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 2.90-2.40 A
Rated flow 30.4 US gpm
Rated head 119.8 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 5
Standard IEC
Terminal box position 6
Type 90SC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

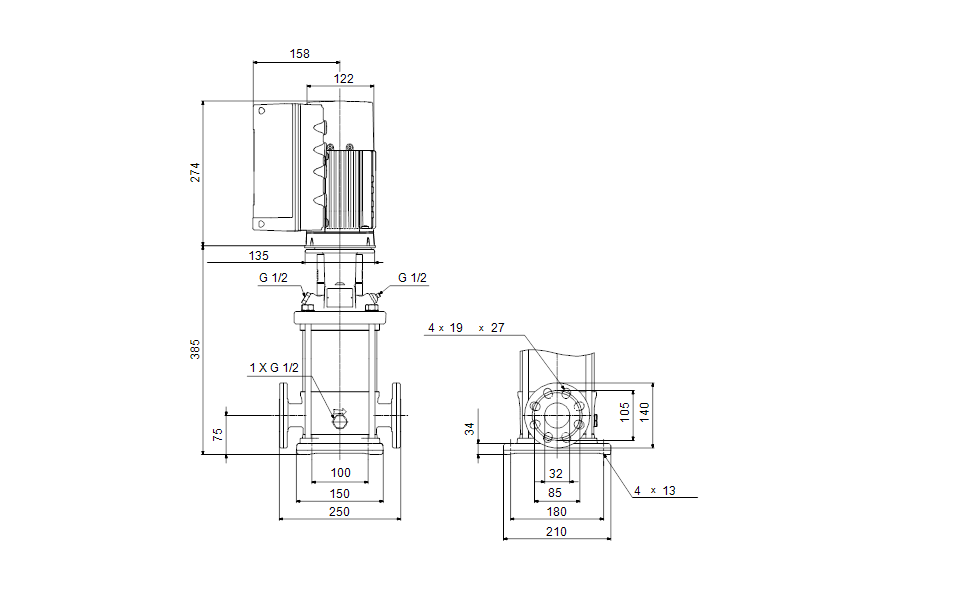

Dimensional Drawing

DWiring Diagram
