Grundfos 98980344 - CRNE 5-3 A-FGJ-A-V-HQQV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98980344

Price:
Sale price$6,922.22
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98980344 - CRNE 5-3 A-FGJ-A-V-HQQV is a vertical, inline multistage stainless steel pump intended for industrial and commercial fluid transfer. Technicians and maintenance teams use this replacement unit where reliable high-pressure, inline pumping is required.

Key features

  • Manufactured by Grundfos for a range of industrial applications
  • Vertical, inline multistage design suited for high-pressure duties
  • Stainless steel construction for corrosion resistance and durability in service

Applications

Suitable for water supply, booster systems, HVAC, and other general industrial or commercial high-pressure inline pumping tasks.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98980344

EAN 5712604627495
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 98499249
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 73.1 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 96.13 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.864
Motor standard NEMA
Motor type 80A
Net weight 62.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.73
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3484 rpm
Pump version A
Pumped liquid Water
Rated current 1.65 A
Rated flow 30.4 US gpm
Rated head 65.29 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard NEMA
Type 80A
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

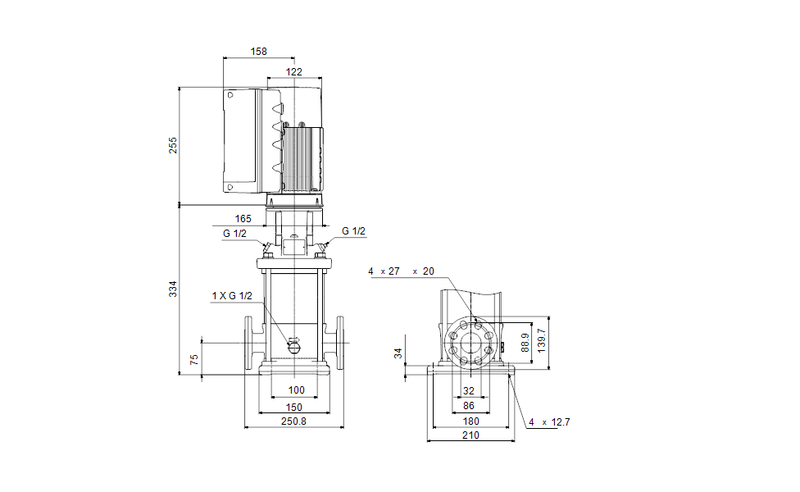

Dimensional Drawing
