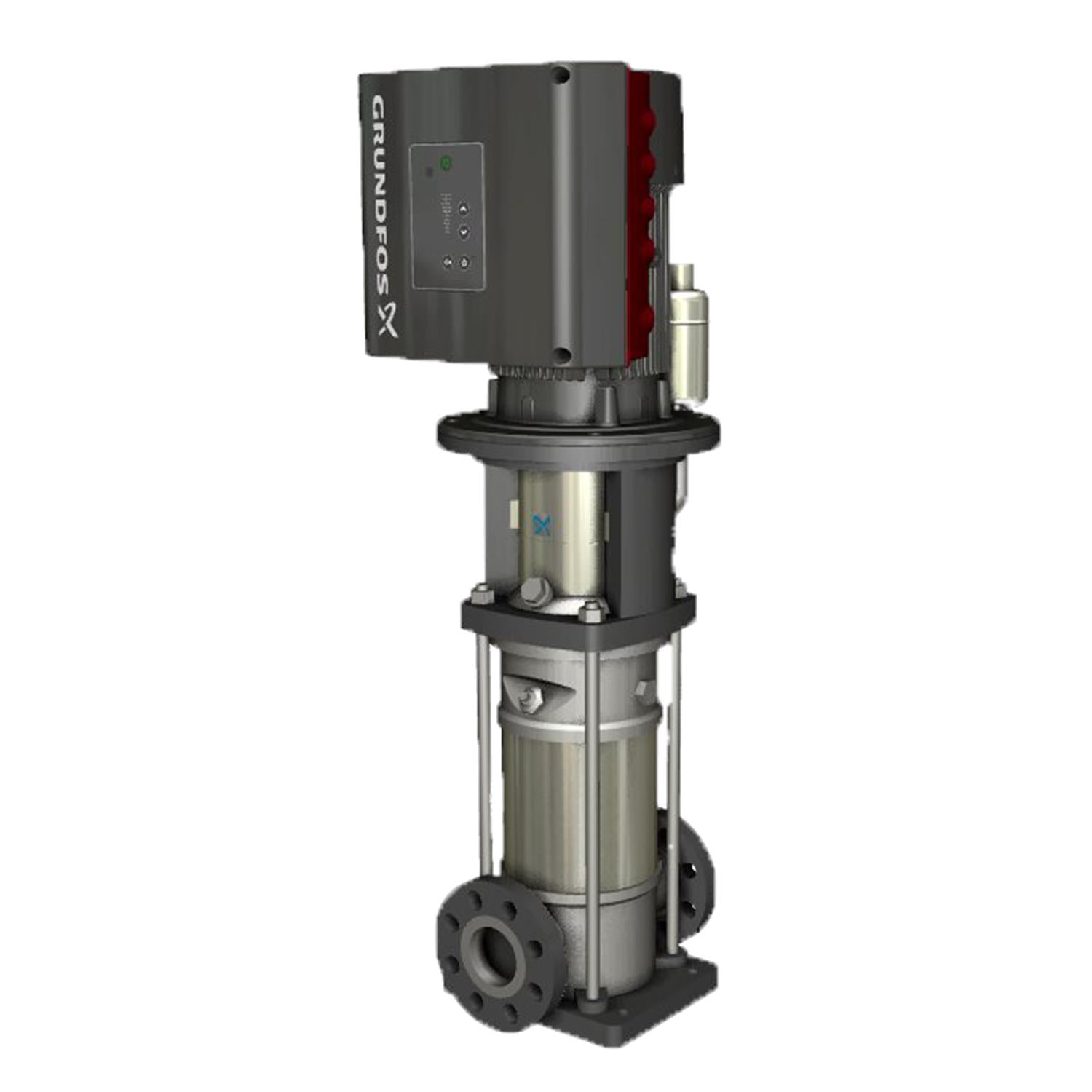

Grundfos 99714859 - CRNE 5-24 FK-FGJ-H-E-HQQE

GRUNDFOSSKU: 99714859

Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99714859 - CRNE 5-24 FK-FGJ-H-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713833291464
Material Pricing Group 3L
Motor efficiency at full load 1 0.925
IE Efficiency class IE5
Code for rubber E
Maximum ambient temperature 122 °F
Material code H
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 302 °F
Maximum operating pressure 25 bar
Size of inlet connection DN 25/32
Power factor 1 0.91-0.90
Selected liquid temperature 68 °F
Type of connection DIN / ANSI / JIS
Rated voltage 3 x 440-480 V
Flange size for motor 213TC
Pumped liquid Water
Size of outlet connection DN 25/32
Connect code FGJ
Liquid temperature range -4 .. 302 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Built-in motor protection ELEC
Net weight 181.0 lb
Rated speed 360-4000 rpm
Gross weight 293.0 lb
Rated power - P2 7.5 kW
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 25
Rated current 12.4-11.5 A
Service factor 1.15
Control panel Graphical
Config. file no 99074145
Frequency converter Built-in
Motor type 132F
Function Module FM300 - Advanced
Pressure sensor N
Pump speed on which pump data are based 3467 rpm
Stages 24
Approvals CURUS
Rated flow 30.4 US gpm
Model A
Version FK
Diameter 2.88 in
Motor 213TC
Rubber E
Maximum head 777.9 ft
Motor standard NEMA
DOE Pump Energy Index VL 0.41
Rated head 602.4 ft
Actual impeller diameter 2.88 in
Type 132F
Curve tolerance ISO9906:2012 3B
Impellers 0
Connection PN 25
Impeller Stainless steel
Code for shaft seal HQQE
Number of reduced-diameter impellers 0
Flange rating inlet 300 lb
Pump 7.5 kW
Low NPSH Y
Standard NEMA
Pump version FK
