Grundfos 99497905 - CRNE 5-10 P-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99497905

Price:
Sale price$9,988.89
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99497905 - CRNE 5-10 P-FGJ-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713830068717
Approvals CE
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499054
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 90.9 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 337 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at full load 1 0.901
Motor standard IEC
Motor type 90LD
Net weight 78.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.93-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3514 rpm
Pump version P
Pumped liquid Water
Rated current 4.15-3.40 A
Rated flow 30.4 US gpm
Rated head 252 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 10
Standard IEC
Type 90LD
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

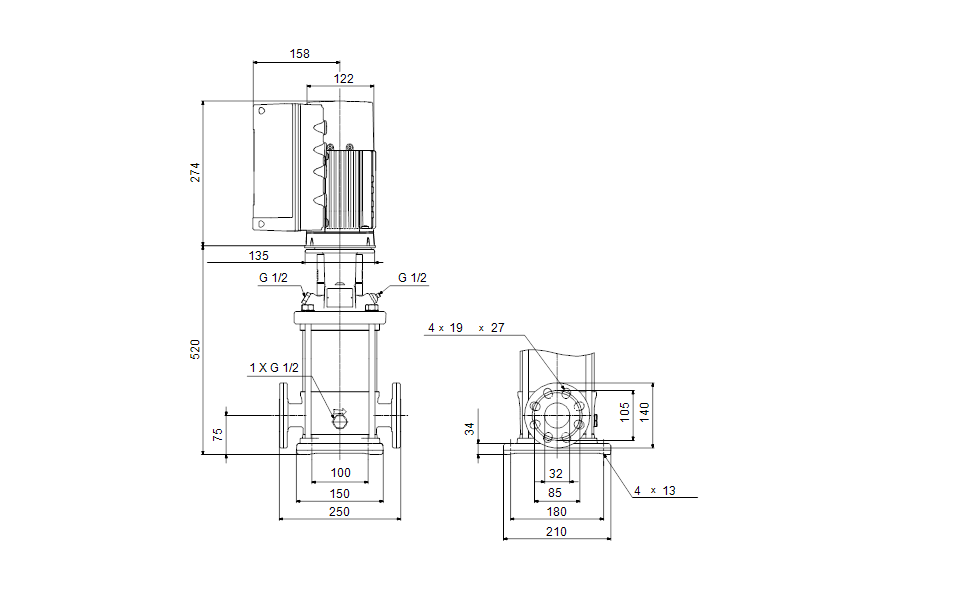

Dimensional Drawing

DWiring Diagram
