Grundfos 92735795 - CRNE 45-2-2 A-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92735795

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

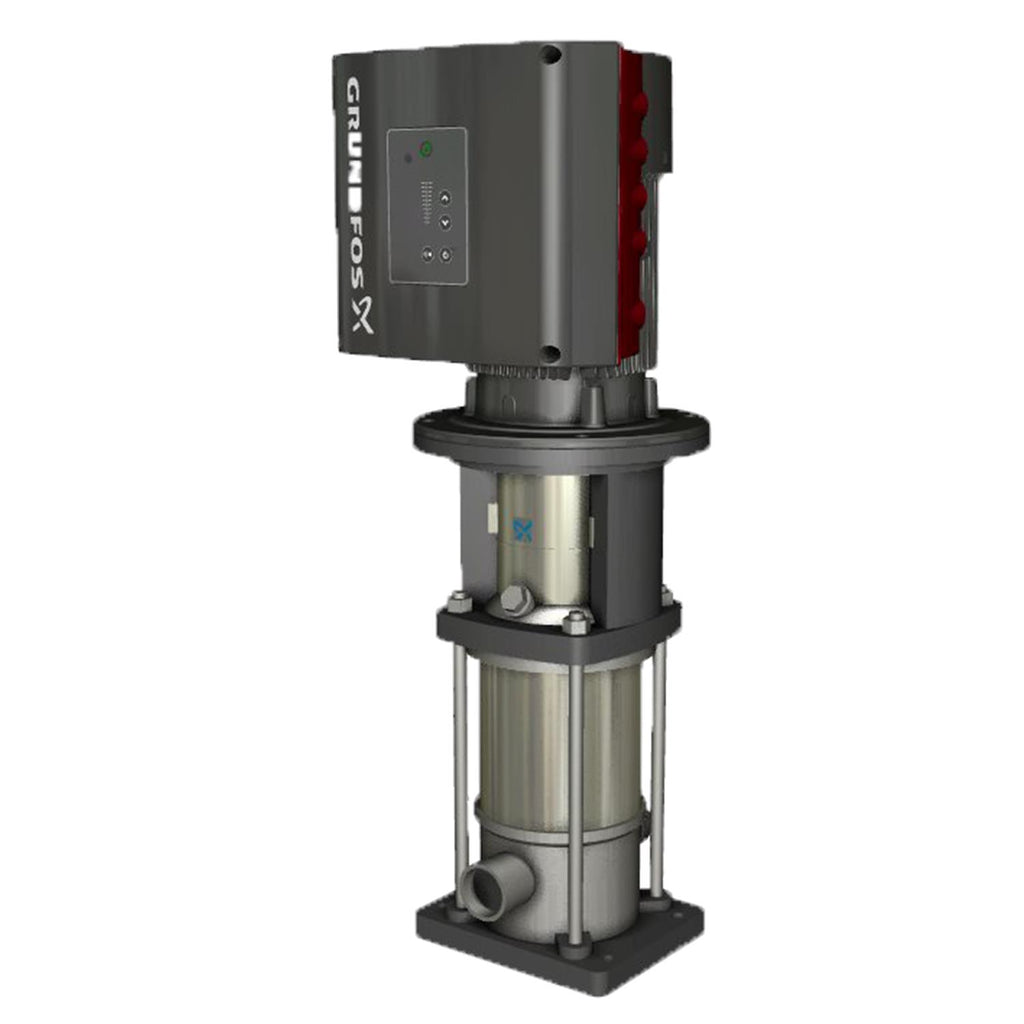

Grundfos 92735795 - CRNE 45-2-2 A-P-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 92735795 - CRNE 45-2-2 A-P-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

Constructed from durable stainless steel, the CRNE 45-2-2 A-P-A-E-HQQE offers exceptional resistance to corrosion and wear, ensuring a long service life even in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for applications that require consistent and reliable performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the efficiency and reliability of the Grundfos CRNE 45-2-2 A-P-A-E-HQQE and elevate your pumping solutions today!

EAN 5715118866619
Actual impeller diameter 5.37 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074325
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 284.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 196.2 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 266.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 11 kW
Power factor 1 0.92-0.91
Pressure rating for connection PN 50
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 238 US gpm
Rated head 152.2 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 2
Standard NEMA
Support bearing Graflon
Type 160H
Type of connection PJE
Version A

Motor Curves

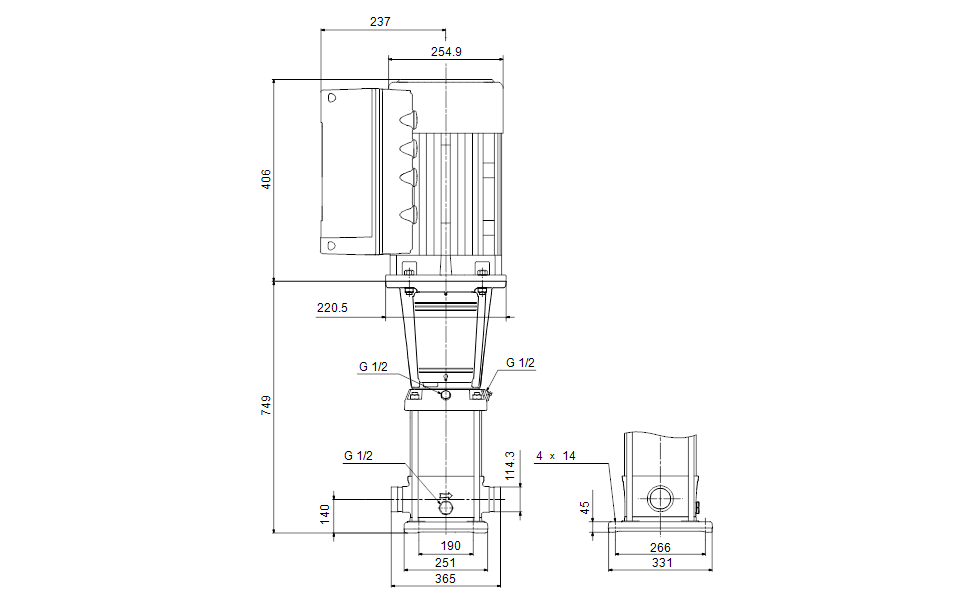

Dimensional Drawing

DWiring Diagram
